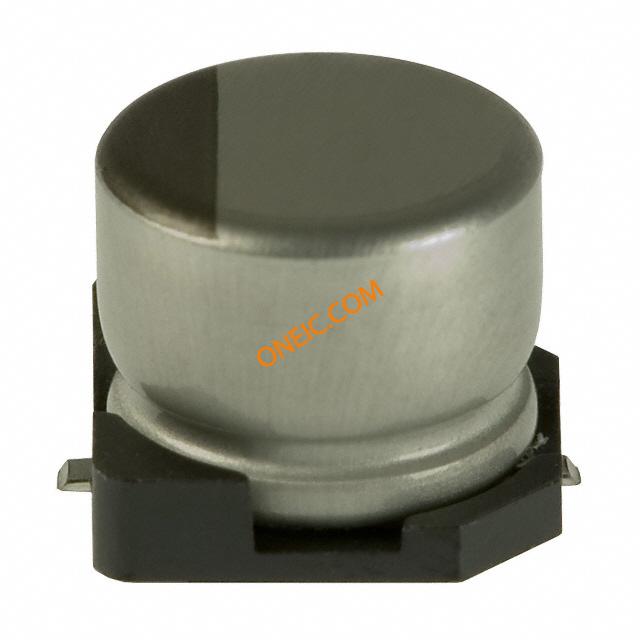

UWX1E220MCL1GB
| Manufacturer | |
| Description | Cap Aluminum 22uF 25V 20% (6.3 X 5.4mm) SMD 42mA 2000h 85°C T/R Aluminum Electrolytic Capacitors - SMD 25volts 22uF 6.3x5.4 20% CAP ALUM 22UF 25V 20% SMD Cap Aluminum 22uF 25V 20% (6.3 X 5.4mm) SMD 42mA 2000h 85C T/R CAPACITOR, 22UF, 25V Capacitor Nichicon WX 系列 22μF 25 V 铝电解电容器 , ±20%容差, 表面安装器件封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Aluminum Electrolytic Capacitors | Product Category | Aluminum Electrolytic Capacitors - SMD |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85322500 | Rad Hardened | No |
Electrical
| Voltage | 25 Vdc | Tolerance | 20 % |
| Capacitance | 22 uF | Range deg/s | :NICHICON - WX Series |
| Voltage Rating | 25 V | Current - Leakage | 3 uA |
| DC Cold Resistance | 3@2Min uA | Capacitance - Input | :Radial Can - SMD |
| Dissipation Factor (DF) | 0.14 | Ripple Current @ Low Frequency | :42mA |
| Ripple Current @ High Frequency | 42 mA | ||
Mechanical

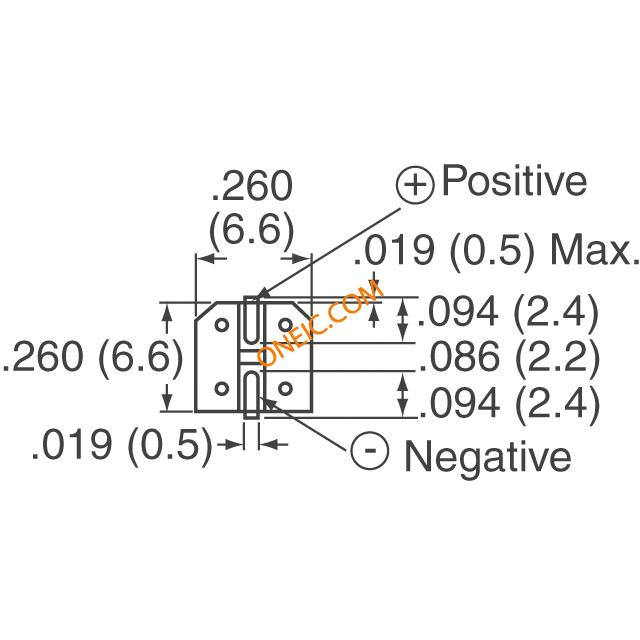

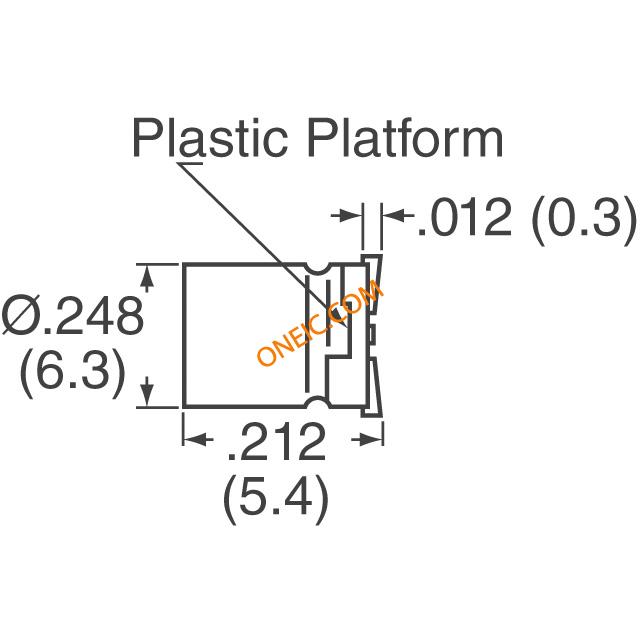

| Size | 6.3 X 5.4 | Depth | Not Required mm |
| Width | :6.6mm | Height | 5.4 mm |
| Length | :5.5mm | Weight | 0.00068 |
| Diameter | 6.3 mm | Packaging | Reel |
| Construction | Cylindrical | Height (Max) | Not Required mm |
| Lead Spacing | Not Required mm | Mounting Type | Surface Mount |
| Reel Capacity | :1000 | Mounting Style | Surface Mount |
| Package / Case | 5.4 mm | Length - Overall | Not Required mm |
| Size / Dimension | 6.3 mm Dia. x 5.4 mm L | Tape Width - Max | :16mm |
| Termination Style | SMD/SMT | Diameter - Small Outside | Not Required mm |
Product Info
| Type | Electrolytic | Series | WX |
| Failure Rate | Not Required | Electrical Life | 2000 h |
Environmental
| Rated Life | 2000 hr | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | :2000h | ||
