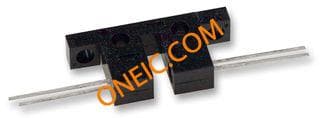

OPB806
| Manufacturer | |
| Description | Photointerrupter Transmissive 3.18mm Phototransistor 4-Pin OPTO SWITCH, SLOTTED Sensor, Transmissive, Slotted Optical Switch, 3.18mm Slot, 935nm, 100 mW |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | EU RoHS | Compliant |
| Tariff No | 85414090 | ||
Electrical
| Output | Phototransistor | Voltage Rating | :30V |
| Output Isolation | :Phototransistor | Voltage - Supply | :0.5V |
| Wavelength - Peak | :935nm | Number of Channels | 1 |
| Voltage - Input (Min) | :30V | Power Dissipation (Max) | 100 |
| Voltage Regulation - Load | 2 | Current - Input Bias (Max) | :20mA |
| Current - Reverse Leakage @ Vr | :100µA | Current - Peak Pulse (10/1000us) | 50 |
Mechanical
| Gap | :3.175mm | Depth | :5.08mm |
| Width | :26.42mm | Length | :12.7mm |
| Weight | 0.00126 | Mounting Type | Screw |
| Number of Pins | :4 | Optic Material | :Slotted |
| Length - Overall | 26.92(Max) | Primary Material | Photoelectric |
| Number of Positions | 4 | Shell Size - Insert | 12.7 |
Product Info
| Type | Transmissive | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | :85°C | ||
Documents & Media
PDF Document
