NCP5425SOEVB
| Manufacturer | |
| Description | Evaluation Board For NCP5425 Highly Flexible Dual Buck Controller Power Management IC Development Tools ANA SW REG EVAL BRD EVAL BOARD FOR NCP5425SO |
| Category |
Business
| Product | Evaluation Boards | Other Names | NCP5425SOEVBOS |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 4.6 V to 13.2 V | Current - Output | 1.5 A |
| Regulator Topology | Buck | Frequency - Switching | 300kHz |
| Voltage - Input (Min) | 0.8V | ||
Mechanical
| Board Thickness | Fully Populated | ||
Product Info
| Type | Development Kit | Contents | Board |
| Function | Highly Flexible Dual Buck Controller with Internal Gate Drivers | Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated | Tool Type Feature | NCP5425 |
| RF Family/Standard | NCP5425 | Utilized IC / Part | NCP5425 |
Documents & Media
Similar Parts

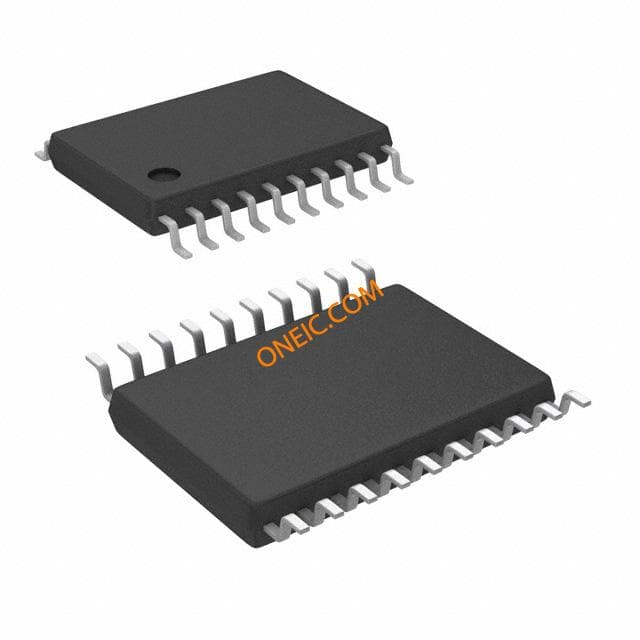

NCP5425DBG
on semiconductor
DC DC Cntrlr Dual-OUT Sync Buck 4.6V to 13.2V Input 20-Pin TSSOP Tube IC REG CTRLR BUCK PWM VM 20TSSOP
NCP5425DB
ON Semiconductor
DC/DC Switching Controllers Dual Synchronous IC REG CTRLR BUCK PWM VM 20TSSOP
NCP5425DBR2
ON Semiconductor
DC/DC Switching Controllers Dual Synchronous IC REG CTRLR BUCK PWM VM 20TSSOP

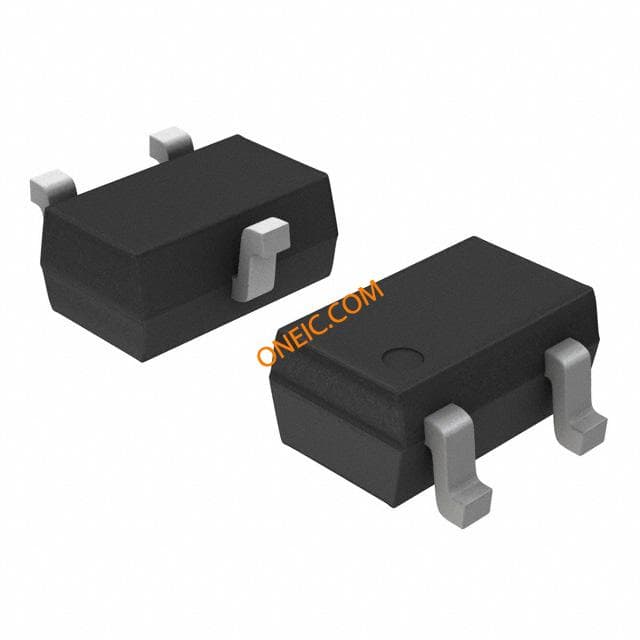

MMBF2201NT1G
