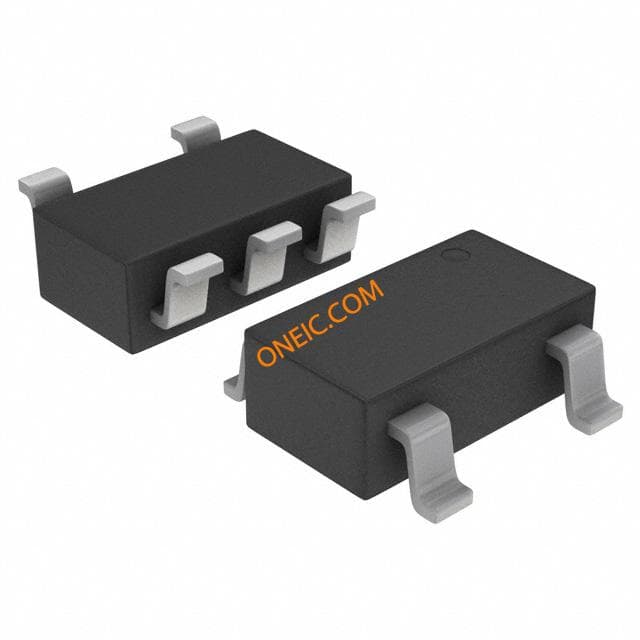

NCP1529ASNT1G
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.7V to 5.5V 5-Pin TSOP T/R IC REG BUCK SYNC ADJ 1A 5TSOP Voltage Regulators - Switching Regulators STEP-DOWN CONVERTER BUCK, 5.5VIN, 1.7MHZ, ADJ, 1%, 5TSOP DC-DC converter; Uout:0.9÷3.3VDC; 1A; SOT23-5 ON Semiconductor 直流-直流转换器, 降压, 300mA, 2.7 → 5.5 V输入, 0.9 → 3.9 V输出, 2.2 MHz, 5针 TSOP封装 Switching Voltage Regulators STEP-DOWN CONVERTER |
| Category |
Business
| Other Names | NCP1529ASNT1GOSCT | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Cut Tape, Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | TSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
Electrical
| PWM Type | Current Mode | Frequency | 1.7MHz |
| Efficiency | 96 % | Output Type | Adjustable |
| Voltage Rating | 0.9 to 3.9 V | Line Regulation | 0.05(Typ) % |
| Load Regulation | 1.1(Typ) % | Current - Output | 1(Min) A |
| Voltage - Supply | 2.7 to 5.5 V | Number of Outputs | 1 |
| Switching Regulator | Yes | Frequency - Switching | 1700(Typ) kHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 0.9 V ~ 3.9 V |
Mechanical
| Width | 1.5 | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :5 | Package / Case | 5TSOP |
| Material Finish | :- | Length - Overall | 3 |
| Package Quantity | TSOP | Number of Positions | 5 |
| Shell Size - Insert | 1(Max) | Supplier Device Package | 5-TSOP |
Product Info
| Spg | 3000 | Type | Step Down |
| Number of Units | 1 | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
