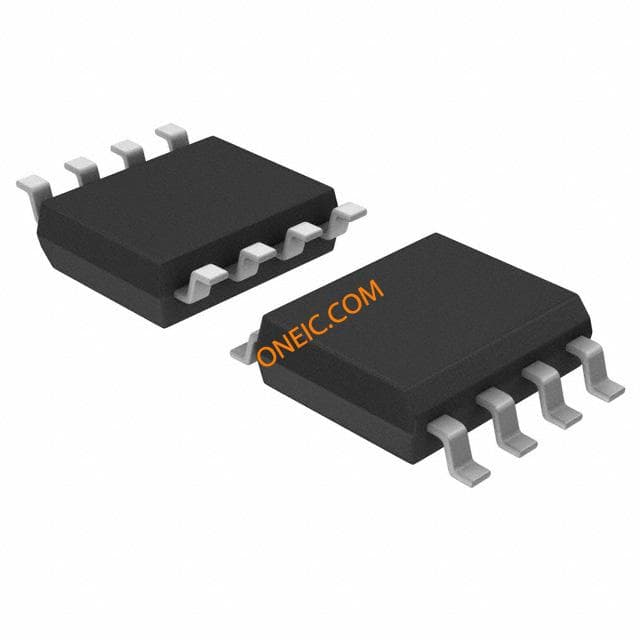

MC33063ADG
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin SOIC N Rail 1.5 A, STEP-UP/DOWN/ INVERTING SWITCHING REGULATORS IC REG BUCK BOOST INV ADJ 8SOIC MC33063ADG, DC-DC Converter, 1.25 to 40V, Step-Down/Up, 8-Pin SOIC Voltage Regulators - Switching Regulators 40V 1.5A Buck/Boost/Inverting DC/DC CONVERTER, SMD, 33063, SOIC8 IC, STEP-UP/STEP-DOWN/INVERT REG, 8-SOIC MC33063ADG Switching Regulator 1.5 A SO-8, MC33063ADG, ON Semiconductor , 降压/升压稳压器, 1.5A, 1.25 → 40 V, 8针 SOIC封装 Switching Voltage Regulators 40V 1.5A Buck/Boost/Inverting |
| Category |
Business
| Product | Switching Regulators | Product Category | Voltage Regulators - Switching Regulators |
| Standard Package | Rail / Tube | Factory Pack Quantity | 98 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | :33063 | Rad Hardened | No |
Electrical
| Frequency | :100kHz | Output Type | Adjustable |
| Converter Type | Step Down, Step Up | Regulator Type | :Switching, Step Down (Buck), Step Up (Boost), Inverting |
| Voltage Rating | 1.25 to 40 V | Current - Output | 1.5(Max) A |
| Voltage - Supply | 40(Max) V | Number of Outputs | 1 |
| Power Supply Type | :DC / DC Converter | Regulator Topology | Step Up/Step Down |
| Frequency - Switching | 33kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 1.25 V ~ 40 V | Voltage - Output Difference (Typ) @ Distance | :1.25V |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 0.000001 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOIC N |
| Package Cooled | SOIC N | Material Finish | :- |
| Length - Overall | 5(Max) | Package Quantity | SOIC N |
| Size / Dimension | 5 x 4 x 1.5mm | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC N |
Product Info
| Type | Step Up/Step Down | DELETED | Compliant |
| Topology | Boost, Buck | Base Unit | :33063 |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
