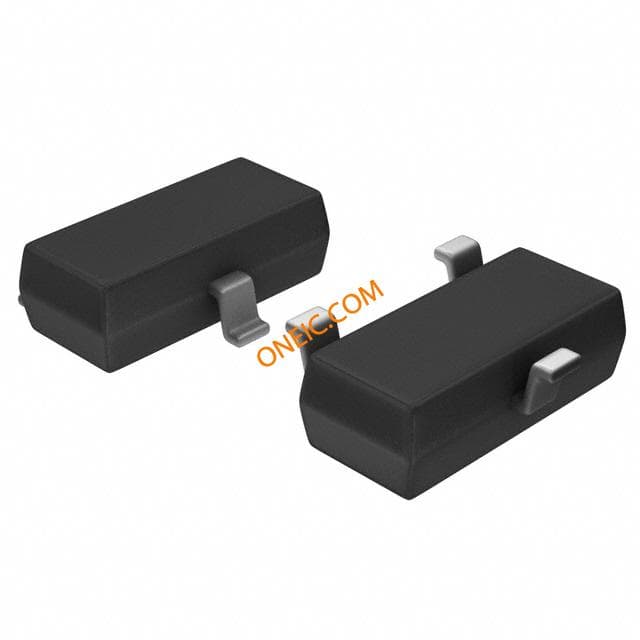

点击放大查看
MAX809LTRG
| Manufacturer | |
| Description | Processor Supervisor 4.63V 1.2V to 4.9V 3-Pin SOT-23 T/R IC MPU SUPERVISORY 4.63V SOT23 MAX809LTRG, Processor Supervisor 1.2 to 4.9V Active Low, Push-Pull, 3-Pin SOT-23 Supervisory Circuits 4.63V uP Reset Processor Supervisor 4.63V 2.5uA 3-Pin SOT-23 T/R MPUSUPERVISORY4.63VSOT23PKG 处理器监控器, 1.2 至 4.9 V监控电压, 多种输出驱动, 3针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MAX809LTRGOSTR | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Reset | No | Output | Active Low/Push-Pull |
| Reset Time | 460 ms | Output Type | Push-Pull |
| Input Signal | No | Voltage Rating | 1.2 V |
| Watchdog Timer | No | Current - Output | 20mA |
| Current - Supply | 0.8(Typ) uA | Number of Inputs | 1 Input |
| Voltage - Supply | 1.2 to 4.9 V | Voltage - Clamping | 4.63 V |
| Voltage - Output 4 | 0.3V | Voltage - Threshold | 4.63V |
| Voltage - Input (Min) | 4.56 V | Voltage - Output (Max) | 4.75V |
| Voltage - Supply (Min) | 5.5 V | Power - Minimum Receivable | No |
| Number of Voltages Monitored | 1 | Voltage - Input Offset (Max) | 4.63V |
| Voltage - Protection Level (VP) (2416) | 4.9V | ||
Mechanical
| Width | 1.3mm | Height | 0.94mm |
| Length | 2.9mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 3 |
| Package / Case | 3SOT-23 | Package Cooled | SOT-23 |
| Package Quantity | SOT-23 | Size / Dimension | 2.9 x 1.3 x 0.94mm |
| Number of Positions | 3 | Supplier Device Package | SOT-23-3 (TO-236) |
Product Info
| Type | Simple Reset/Power-On Reset | Series | MAX809 |
| Features | No Internal Hysteresis | Function | Y |
| Manufacturer | ON Semiconductor | Reset Timeout | 140 ms Minimum |
| Battery Series | No | Number of Supervisors | 1 |
| Number of Monitor Fields | 1 | ||
Environmental
| Operating Temperature | -40 to 105 °C | Usable Temperature Range | -40to+105°C |
