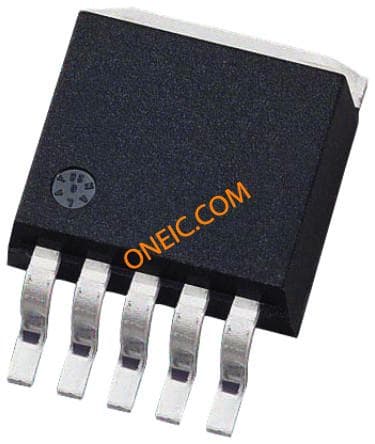

LM2576D2T-ADJG
| Manufacturer | |
| Description | Conv DC-DC Single Inv/Step Down 7V to 40V 6-Pin(5+Tab) D2PAK Rail IC REG BUCK ADJ 3A D2PAK Sw. Regulator 3A Adj. Step-Down D2PAK-5 Voltage Regulators - Switching Regulators 3A 1.23-37V ADJ Buck PWM SWITCH REG, STEP DOWN, 3.0A, ADJ ON Semiconductor 降压 开关稳压器, 3A, 可调输出, 1.23 → 37 V, 52 kHz, 5针 D2PAK封装 Switching Voltage Regulators 3A 1.23-37V ADJ Buck PWM |
| Category |
Business
| Product Category | Voltage Regulators - Switching Regulators | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | D2PAK |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Accuracy | :4% | PWM Type | Voltage Mode |
| Frequency | :52kHz | Efficiency | 77(Typ) % |
| Output Type | Adjustable | Regulator Type | Buck Controller |
| Voltage Rating | 1.23 to 37 V | Current - Output | 3 A |
| Voltage - Supply | 7 to 40 V | Number of Outputs | 1 |
| Regulator Topology | Inverting/Step Down | Switching Regulator | Yes |
| Frequency - Switching | 52(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 1.23 V ~ 37 V | Voltage - Output (Max) | 37 V |
| DC Voltage - Input (Min) | 7 V | Voltage - Output (Min/Fixed) | 1.23 V |
| Voltage - Continuous Operating (Max) (MCOV) | :40V | ||
Mechanical
| Width | 4.572mm | Height | 9.347mm |
| Length | 10.236mm | Weight | 0.002 |
| Packaging | Rail | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :5 |
| Package / Case | 6D2PAK | Package Cooled | D2PAK |
| Material Finish | :- | Package Quantity | D2PAK |
| Size / Dimension | 10.236 x 4.572 x 9.347mm | Number of Positions | 6 |
| Supplier Device Package | D2PAK-5 | ||
Product Info
| Type | Inverting|Step Down | Base Unit | :2576 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
