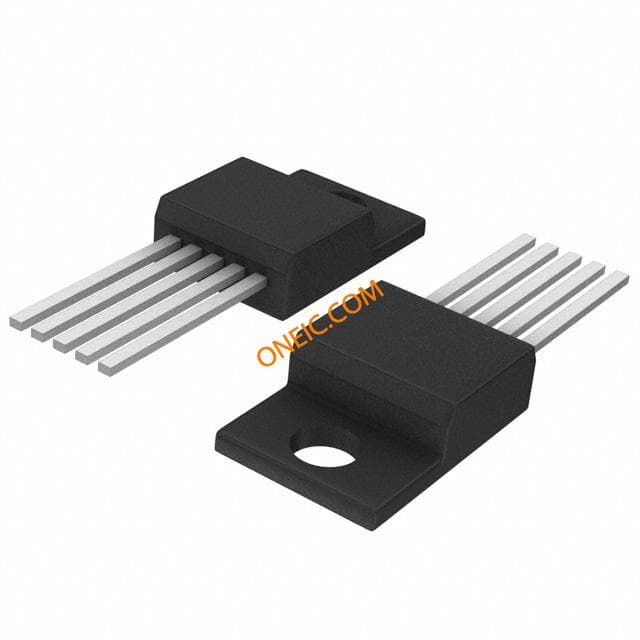

LM2575T-5G
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 4.75V to 40V 5-Pin(5+Tab) TO-220 IC REG BUCK 5V 1A TO220-5 LM2575T-5G, Switching Regulator, Buck Controller, 1A, 5V, 52kHz, 5-Pin TO-220 Voltage Regulators - Switching Regulators 5V 1A Buck PWM BUCK, 37VIN, 1A, 5V, 5TO220 SWITCHINGREGULATOR1A ON Semiconductor 降压 开关稳压器, 1A, 4.75 → 5.25 V, 52 kHz, 5针 TO-220封装 Switching Voltage Regulators 5V 1A Buck PWM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Voltage Regulators - Switching Regulators | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | Standard Package Name | TO-220 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| PWM Type | Voltage Mode | Efficiency | 77(Typ) % |
| Output Type | Fixed | Regulator Type | Buck Controller |
| Voltage Rating | 5 V | Current - Output | 1 A |
| Voltage - Supply | 4.75 to 40 V | Number of Outputs | 1 |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Frequency - Switching | 52(Typ) kHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 5V | Voltage - Output (Max) | 5.25 V |
| DC Voltage - Input (Min) | 4.75 V | Voltage - Output (Min/Fixed) | 4.75 V |
Mechanical
| Width | 4.57mm | Height | 9.27mm |
| Length | 10.54mm | Weight | 0.001 |
| Packaging | Tube | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :5 | Package / Case | 5TO-220 |
| Package Cooled | TO-220 | Material Finish | :- |
| Package Quantity | TO-220 | Size / Dimension | 10.54 x 4.57 x 9.27mm |
| Number of Positions | 5 | Supplier Device Package | TO-220-5 |
Product Info
| Type | Step Down | Base Unit | :2575 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
