LM224NG
| Manufacturer | |
| Description | OP Amp Quad GP ±16V/32V 14-Pin PDIP Rail IC OPAMP GP 1MHZ 14DIP Operational Amplifiers - Op Amps 3-32V Quad Channel Lo PWR -25 to 85deg OP Amp Quad GP �16V/32V 14-Pin PDIP Rail OP AMP, QUAD IND SPEC, DIP14, 224 OpAmp,Quad,SingleSupply,32VSupply,-25to85C,PDIP-14 |
| Category |
Business
| Other Names | LM224NGOS | Product Category | Operational Amplifiers - Op Amps |
| Standard Package | Rail / Tube | Factory Pack Quantity | 500 |
| Standard Package Name | PDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :224 | Rad Hardened | No |
Electrical
| Gain | 100 dB | PSRR | 65 dB |
| Channels | -120dB | Slew Rate | 0.6 V/µs |
| Output Type | No | Power - Input | Single/Dual |
| Transistor Type | :General Purpose | CMRR, PSRR (Typ) | 70 dB |
| Current - Output | 1.4mA | Current - Supply | 1.2@5V@-25C to 85C mA |
| Voltage - Supply | 3 V | Power Supply Type | Single|Dual |
| Number of Channels | 4 | Number of Elements | 4 |
| Voltage - Output 4 | 5mV | Current - Input Bias | 90nA |
| Number of ADCs / DACs | :4 | Voltage - Input (Min) | 2mV |
| Gain Bandwidth Product | 1MHz | Rail-to-Rail Operation | No |
| Input Logic Level - Low | -300nA | Current - Input Bias (Max) | 0.15@5V uA |
| Current - Output / Channel | 40mA | Input Offset Current (Max) | 0.03@5V |
| Voltage - Supply Span (Typ) | �3/�5/�9/�12 V | Voltage - Input Offset (Max) | 5@30V mV |
| Voltage - Output (Typ) @ Distance | 25V/mV | Propagation Delay tpLH / tpHL (Max) | 0.6V/μs |
| Common Mode Transient Immunity (Min) | 85dB | Voltage - Output Difference (Typ) @ Distance | 100 dB |
Mechanical
| Weight | 0.001667 | Bandwidth | :1MHz |
| Packaging | Rail | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :14 | Package / Case | 14PDIP |
| Package Cooled | PDIP | Material Finish | :- |
| Package Quantity | PDIP | Number of Positions | 14 |
| Supplier Device Package | 14-PDIP | ||
Product Info
| Type | General Purpose Amplifier | Shutdown | No |
| Base Unit | :224 | Technology | Bipolar |
| Manufacturer | General Purpose Amplifier | Amplifier Type | General Purpose |
| Number of Circuits | 4 | Other Specifications | :Quad |
Environmental
| Operating Temperature | -25 to 85 °C | Usable Temperature Range | -25to+85°C |
Documents & Media
Similar Parts

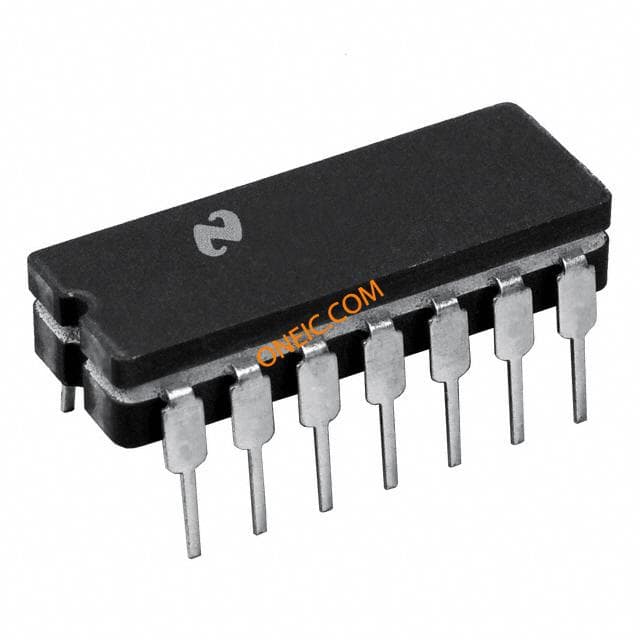

LM224J
