CAT811STBI-T3
| Manufacturer | |
| Description | Processor Supervisor 2.93V 2.5V/3V/3.3V/5V 4-Pin(3+Tab) SOT-143 T/R Supervisory Circuits 2.93V Push-Pull Low IC SUPERVISOR PP ACT LO SOT143-4 IC, SUPERVISOR, 4PIN, SOT23-4 IC, MPU SUPERVISOR, 15µA, 5.5V, SOT143-4 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | CAT811STBI-T3CT | Product Category | Supervisory Circuits |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
| Standard Package Name | SOT-143 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Reset | Yes | Output | Active Low/Push-Pull |
| Delay Time | :240ms | Reset Time | 240(Typ) ms |
| Output Type | Active Low, Push-Pull | Input Signal | No |
| Power - Rated | 0.32 W | Voltage Rating | 1.2 V |
| Watchdog Timer | No | Current - Output | :6µA |
| Current - Supply | 6(Typ) uA | Voltage - Supply | 2.5|3|3.3|5 V |
| Number of Elements | 1 | Voltage - Clamping | 2.89 V |
| Voltage - Threshold | 2.93V | Voltage - Input (Min) | 2.89 V |
| Voltage - Supply (Min) | 5.5 V | Power Dissipation (Max) | 320 mW |
| Idle Current, Typ @ 25degC | 6 uA | Power - Minimum Receivable | No |
| Number of Voltages Monitored | 1 | Voltage - Input Offset (Max) | 2.5/3/3.3/5 V |
| Common Mode Transient Immunity (Min) | Industrial | Voltage - Protection Level (VP) (2416) | 2.93 |
Mechanical
| Weight | 0.001 | Packaging | Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :4 | Package / Case | 4SOT-143 |
| Package Cooled | SOT-143 | Material Finish | :- |
| Package Quantity | SOT-143 | Number of Positions | 4 |
| Supplier Device Package | SOT-143 | ||
Product Info
| Type | Simple Reset/Power-On Reset | Base Unit | :811 |
| Reset Timeout | 140 ms Minimum | Battery Series | No Backup |
| Number of Supervisors | 1 | Number of Logic Elements/Cells | :1 |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | -40 to 85 °C |
Documents & Media
Similar Parts
CAT811STBI-T3
on semiconductor
Processor Supervisor 2.93V 2.5V/3V/3.3V/5V 4-Pin(3+Tab) SOT-143 T/R Supervisory Circuits 2.93V Push-Pull Low IC SUPERVISOR PP ACT LO SOT143-4 IC, SUPERVISOR, 4PIN, SOT23-4 IC, MPU SUPERVISOR, 15µA, 5.5V, SOT143-4
$1.2600
Details

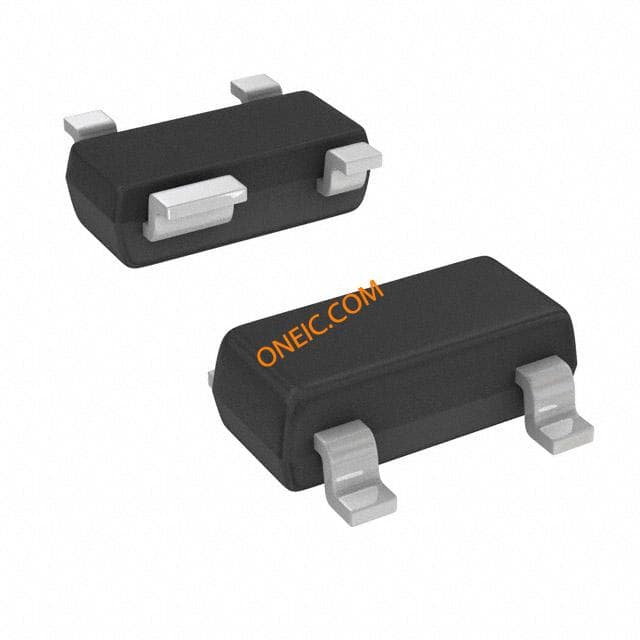

STM811SW16F
