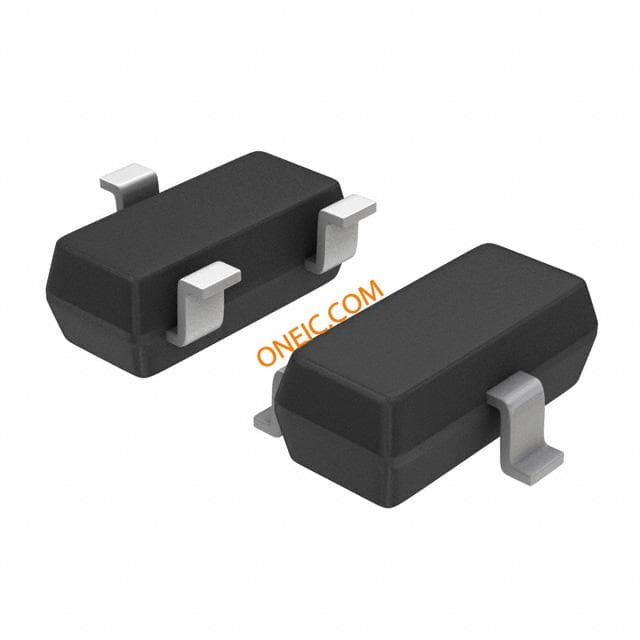

BAV70LT1G
| Manufacturer | |
| Description | Diode Small Signal Switching 70V 0.2A 3-Pin SOT-23 T/R Diode Small Signal Switching 100V 0.2A 3-Pin SOT-23 T/R DIODE ARRAY 70V 200MA SOT23 BAV70LT1G, Rectifier Diode, Switching 0.2A 70V Common Cathode, Dual, 3-Pin, SOT-23 Diodes - General Purpose, Power, Switching 70V 200mA Dual Common Cathode Diode Switching 70V 0.2A 3-Pin SOT-23 T/R DIODE, SMALL SIGNAL, 70V, SOT-23-3 DIODE, SWITCHING, 70V, SOT-23 DIODE, SIGNAL, 70V, SOT-23 DIODE,SWITCHING;200IF;70VDC(MIN.)@25C;225MW@25C;SOT-23 Diode SOT-23-3 100 V, BAV70LT1G, ON Semiconductor ON Semiconductor 开关 二极管, 200mA 70V 6ns, 3针 SOT-23封装 |
| Category |
Business
| Product | Switching Diodes | Other Names | BAV70LT1GOSTR |
| Product Category | Diodes - General Purpose, Power, Switching | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | Standard Package Name | SOT-23 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
Electrical
| Speed | Small Signal = | Current - Test | 2.5 uA |
| Rectifier Type | Switching | Current - Surge | :500mA |
| Voltage - Supply | 1.25@0.15A V | Current - Output 1 | :150mA |
| Capacitance @ Vr, F | 1.5pF | Diode Configuration | 1 Pair Common Cathode |
| Frequency - Switching | Switching | Voltage - Input (Min) | 1.25V @ 150mA |
| Power Dissipation (Max) | :225mW | Delay Time - Propagation | 6ns |
| Voltage Regulation - Load | 70 V | Reverse Recovery Time (trr) | 6 ns |
| Current - Peak Pulse (8/20us) | 0.5 A | Current - Reverse Leakage @ Vr | 2.5 uA |
| Voltage - DC Reverse (Vr) (Max) | 70V | Current - Average Rectified (Io) | 0.2 A |
| Current - Peak Pulse (10/1000us) | 0.0005kA | Voltage - Reverse Standoff (Typ) | 70 V |
| Current - LED Trigger (Ift) (Max) | :150mA | Current - Continuous Drain (Id) @ 25degC | 0.2A |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | ||
Mechanical
| Width | 1.3mm | Height | 0.94mm |
| Length | 2.9mm | Weight | 0.000033 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |
| Package / Case | 3SOT-23 | Package Cooled | SOT-23 |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 2.9 |
| Package Quantity | SOT-23 | Primary Material | Rectifier |
| Size / Dimension | 0.94 x 2.9 x 1.3mm | Pin Hole Diameter | :1(A1), 2(A2), 3(K1+K2) |
| Number of Positions | 3 | Shell Size - Insert | 0.94 |
| Supplier Device Package | SOT-23-3 (TO-236) | ||
Product Info
| Type | Small Signal Switching Diode | Diode Type | Standard |
| Configuration | Dual Common Cathode | Utilized IC / Part | :BAV70 |
| Printed Circuit Board | 3 | ||
Environmental
| Operating Temperature | -55 to 150 °C | Operating Temperature - Junction | :150°C |
