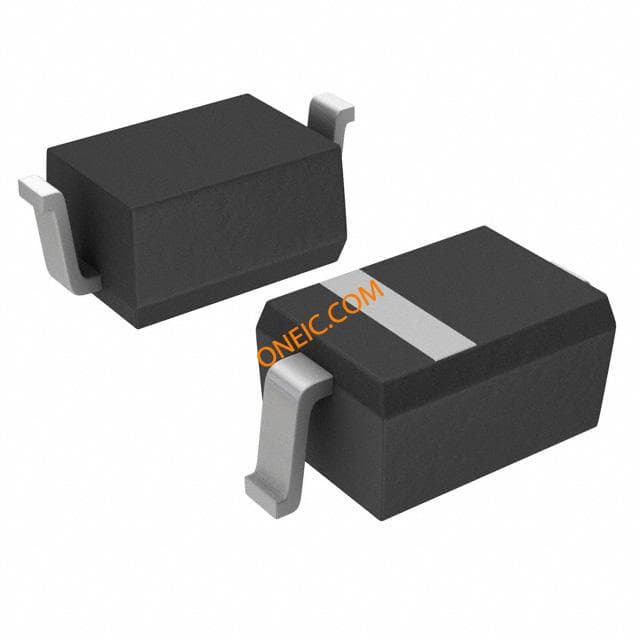

BAT54HT1G
| Manufacturer | |
| Description | Diode Schottky 30V 0.2A 2-Pin SOD-323 T/R DIODE SCHOTTKY 30V 0.2A SOD323 BAT54HT1G, Switching 200mA 30V 5ns, 2-Pin, SOD-323 Schottky Diodes & Rectifiers 30V 200mW Single DIODE,SMALLSIGNAL;200MADC(MAX.)@25CIF;30V(MIN.)@25C;SOD-323 Schottky diode Single 0.2 A 30 V SOD-323, BAT54HT1G, ON Semiconductor ON Semiconductor 开关 肖特基 二极管, 200mA 30V 5ns, 2针 SOD-323封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Schottky Diodes | Other Names | BAT54HT1GOSTR |
| Product Category | Schottky Diodes & Rectifiers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | Standard Package Name | SOD-323 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Speed | Small Signal = | Current - Test | 2@25V uA |
| Rectifier Type | Schottky Diode | Voltage - Supply | 0.8@0.1A V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz | LED Forward Voltage | 0.8 |
| Frequency - Switching | Fast | Voltage - Input (Min) | 800mV @ 100mA |
| Power Dissipation (Max) | 200mW | Delay Time - Propagation | 5ns |
| Voltage Regulation - Load | 30 V | Reverse Recovery Time (trr) | 5 ns |
| Current - Peak Pulse (8/20us) | 0.6 A | Current - Reverse Leakage @ Vr | 2 uA at 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30V | Current - Average Rectified (Io) | 0.2 A |
| Current - Peak Pulse (10/1000us) | 200mA | Voltage - Reverse Standoff (Typ) | 30 V |
| Current - Continuous Drain (Id) @ 25degC | 0.2 A | ||
Mechanical
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 2SOD-323 | Package Cooled | SOD-323 |
| Package Quantity | SOD-323 | Primary Material | SchottkyBarrier |
| Number of Positions | 2 | Supplier Device Package | SOD-323 |
Product Info
| Type | Schottky Diode | DELETED | Compliant |
| Diode Type | Schottky | Configuration | Single |
Environmental
| Thermal Resistance | 635°C/W Ja | Operating Temperature | -55 to 150 °C |
| Operating Temperature - Junction | -55°C ~ 150°C | ||
Documents & Media
Similar Parts
BAT54HT1G
on semiconductor
Diode Schottky 30V 0.2A 2-Pin SOD-323 T/R DIODE SCHOTTKY 30V 0.2A SOD323 BAT54HT1G, Switching 200mA 30V 5ns, 2-Pin, SOD-323 Schottky Diodes & Rectifiers 30V 200mW Single DIODE,SMALLSIGNAL;200MADC(MAX.)@25CIF;30V(MIN.)@25C;SOD-323 Schottky diode Single 0.2 A 30 V SOD-323, BAT54HT1G, ON Semiconductor ON Semiconductor 开关 肖特基 二极管, 200mA 30V 5ns, 2针 SOD-323封装
$0.1015
Details

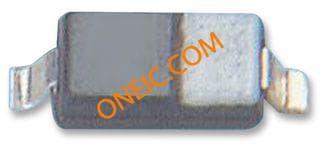

1PS76SB10
