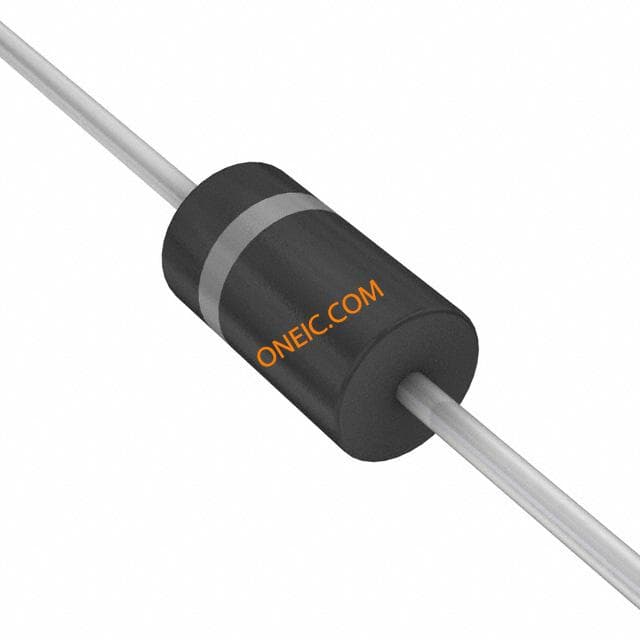

1N6285AG
| Manufacturer | |
| Description | Diode TVS Single Uni-Dir 33.3V 1.5KW 2-Pin Case 41A-04 Box TVS DIODE 33.3VWM 53.9VC AXIAL TVS Diodes - Transient Voltage Suppressors 39V 1500W Unidirectional DIODE, TVS ZENMOSRBTVS1500W39V ON Semiconductor 单向 TVS 二极管, 1500W, 53.9V, 2针 盒 41A封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1N6285AGOS | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Boxed | Factory Pack Quantity | 500 |
| Standard Package Name | DO-201 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Rad Hardened | No | ||
Electrical
| Channels | 1 Channel | TVS Polarity | :Unidirectional |
| Current - Surge | 28 A | Current - Output | 1 mA |
| Voltage - Supply | 33.3V | Current - Leakage | 0.005 uA |
| Number of Elements | 1 | Power - Peak Pulse | 1500 W |
| Voltage - Clamping | 53.9 V | Current - Trip (It) | 1 mA |
| Diode Configuration | :457 | Voltage - Breakdown | 37.1 V |
| Power Line Protection | No | Voltage - Input (Min) | 33.3 V |
| Voltage - Supply (Min) | 33.3 V | Power Dissipation (Max) | :5W |
| Unidirectional Channels | 1 | Current - Peak Pulse (8/20us) | 28 A |
| Current - Reverse Leakage @ Vr | 5 uA | Voltage - Reverse Standoff (Typ) | 33.3 V |
Mechanical
| Weight | 0.00159 | Packaging | Box |
| Lead Style | Through Hole | Termination | :Axial Leaded |
| Mounting Type | Through Hole | Number of Pins | :2 |
| Package / Case | 2Case 41A-04 | Package Cooled | Case 41A-04 |
| Material Finish | :- | Package Quantity | Case 41A-04 |
| Size / Dimension | 5.3 mm Dia. x 5.3 (Max) mm W x 9.5 mm L | Termination Style | Axial |
| Number of Positions | 2 | Supplier Device Package | Axial |
Product Info
| Type | Zener | Series | 1N6267A |
| Polarity | Unidirectional | Applications | General Purpose |
| Configuration | Single | Port Direction | Uni-Directional |
Environmental
| Operating Temperature | -65 to 175 °C | Operating Temperature - Junction | -65 to 175 |
