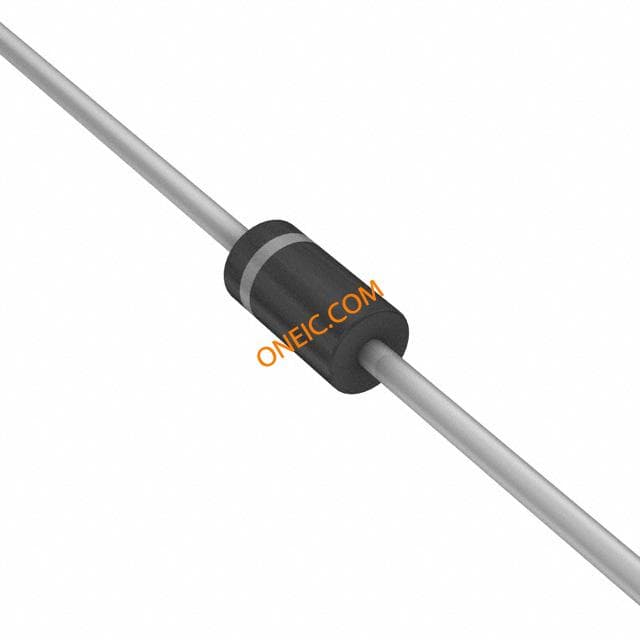

1N4005RLG
| Manufacturer | |
| Description | Diode Switching 600V 1A 2-Pin DO-41 T/R DIODE GEN PURPOSE 600V 1A DO41 Rectifiers 600V 1A Standard RECTIFIER DIODE,600V V(RRM),AXIAL-5.2 ON Semiconductor 1N4005G 开关 整流器二极管, 1A 600V, 2针 DO-41封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Standard Recovery Rectifiers | Other Names | 1N4005RLGOSCT |
| Product Category | Rectifiers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 5000 | Standard Package Name | DO-204-AL |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | Rad Hardened | No |
Electrical
| Speed | Standard Recovery >500ns, > 200mA (Io) | Current - Test | 10 uA |
| Rectifier Type | Switching Diode | Voltage - Supply | 1.1 V |
| LED Forward Voltage | 1.1 | Voltage - Input (Min) | 1.1V @ 1A |
| Current - Peak Pulse (8/20us) | 30 A | Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 1@Ta=75C A | Voltage - Reverse Standoff (Typ) | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 600 V | Current - Continuous Drain (Id) @ 25degC | 1 A |
Mechanical
| Weight | 0 | Packaging | Tape and Reel |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 2DO-41 |
| Package Cooled | DO-41 | Length - Overall | 5.2(Max) |
| Package Quantity | DO-41 | Diameter - Outside | 2.7(Max) |
| Number of Positions | 2 | Supplier Device Package | DO-41 |
Product Info
| Type | Switching Diode | DELETED | Compliant |
| Diode Type | Standard | Configuration | Single |
| Printed Circuit Board | 2 | ||
Environmental
| Thermal Resistance | 52°C/W Ja | Operating Temperature | -65 to 175 °C |
| Operating Temperature - Junction | -65°C ~ 175°C | ||
Documents & Media
PDF Document
PDF Document
