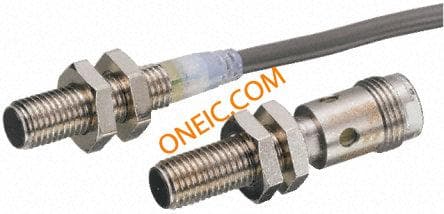

E2AM12KS04M1B1
| Manufacturer | |
| Description | 4mm PNP Barrel Inductive Proximity Sensor, M12 x 1, 200mA, 12 to 24V dc, IP67 Proximity Sensor NO PNP 4mm 10V to 32V 4-Pin SENS PROX M12 4MM PNP-NO SHLD Omron PNP 电感式传感器 4 mm Detection Range, 柱体 48mm length, 12 → 24 V 直流, IP67 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | Yes | ||
Electrical
| Output Type | PNP | Voltage Rating | 32V |
| Voltage - Supply | 12 → 24 V dc | Current - Switching | 200 mA |
| Overload Protection | 是 | Frequency - Switching | 1000 Hz |
| Reverse Polarity Protection | 是 | Voltage - DC Spark Over (Nom) | 32V |
| Current - Short Circuit Rating (SCCR) | Yes | ||
Mechanical
| Length | 48mm | Shielding | Total |
| Thread Size | M12 x 1 | Mounting Type | Panel |
| Terminal Type | M12 Connector | Connector Type | M12 连接器 |
| Housing Material | Nickel Plated Brass | Size / Dimension | 12（直径）x 48 mm |
| Supplier Device Package | Barrel | ||
Product Info
| Style | 柱体 | ||
Environmental
| Seal Rating | IP67 | Operating Range | 4mm |
| Ingress Protection | IP67 | Detection Capability | 4 mm |
| Operating Temperature | +70°C | ||
