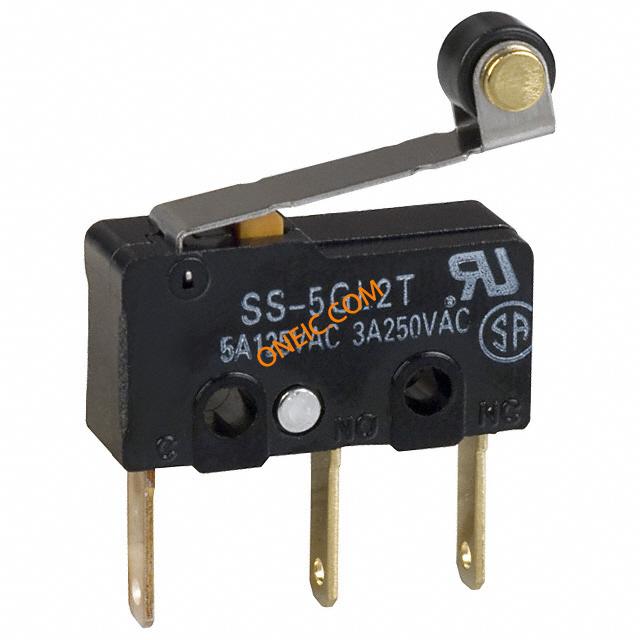

SS-5GL2T
| Manufacturer | |
| Description | Basic / Snap Action Switches Hinge Roller Lever 5A SPDT #110 Tab 50g Switch Snap Action N.C. SPST Hinge Roller Lever Quick Connect 5A 125VAC 14VDC 0.49N Screw Mount SW SPDT 5A HINGED ROLL TAB 125V SPDT-NO/NC Roller Lever Microswitch, 5 A @ 125 V ac, 5 A @ 14 V dc Switch,Economical,SUBMIN.,SnapAction,TABTERM.,HINGEROLL.LEV,STDLOADACTU Microswitch; with lever (with roller); SPDT; 5A/125VAC; ON-(ON) Snap Action Switch Actuator Type: Lever (Roller) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 5 Amps Micro switch 3 AAC / 4 ADC Roller lever Snap-action switch 1 change-over (CO), SS-5GL2T, Omron Electronic Components Omron 单刀双掷 - 常开/常闭 滚轮杠杆 微动开关, 5 A @ 125 V 交流 |
| Category |
Business
| Lead Time | 129 Days | Subcategory | Switch Snap Action |
| Part # Aliases | 382565 9850651 SS5GL2TNC | Product Category | Basic / Snap Action Switches |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Switching Voltage | ON-(ON) |
| Contact Resistance | 30mΩ | Differential Travel | 0.030" (0.8mm) |
| Current Rating (Max) | 5A (AC), 4A (DC) | Insulation Resistance | 100MΩ |
| Voltage - Input (Min) | 125 | Switch Function/Rating | N.C. |
| Contact Rating (Current) | 5 A @ 125 V ac, 5 A @ 14 V dc | AC contacts rating (at resistance load) | 5 A / 125 VAC |
Mechanical
| Depth | 6.4 | Height | 29.9 |
| Length | 14.5mm | Weight | 0.035274 oz |
| Packaging | Bulk | Lead Style | 2.8x0.5mm connectors |
| Overtravel | 0.047" (1.2mm) | Size - Body | 19.8 x 6.4 x 10.2mm |
| Contact Form | SPDT | Actuator Type | Lever, Roller |
| Holding Force | 0.06N | Mounting Type | Screw Mount |
| Release Force | 6gf | Terminal Type | Quick Connect |
| Connector Type | 翼片 | Actuation Force | Roller lever |
| Operating Force | 50gf | Contact Material | Silver |
| Length - Overall | 19.8 | Actuator Material | Polyacetal Resin/Stainless Steel/N/A |
| Pitch - Connector | 7.3mm | Termination Style | Quick Connect - 0.110" (2.8mm) |
| Number of Contacts | 1 change-over (CO) | Actuator Style/Size | Hinge Roller Lever |
| Number of Positions | 1-position | Switch Actuation Level | SPST |
| Contact Layout, Typical | SPDT-NO/NC | Torque - Rated (oz-in / mNm) | 1.47N |
Product Info
| Type | Standard | Design | Snap-action switch |
| Series | SS | CAD Drawing | 3D CAD Model |
| Switch Type | microswitch | Card Standard | Snap-Action Switch |
| Electrical Life | 200,000 Cycles | Number of Units | 1 |
| Switch Features | with lever (with roller) | Industry Aliases | SS-5GL2T |
| Operating Position | 0.571" (14.5mm) | Contacts Configuration | SPDT |
Environmental
| Seal Rating | IP40 | Mechanical Life | 30,000,000 Cycles |
| Ingress Protection | IP40 | Temperature Rating | -25to+85°C |
| Operating Temperature | -25°C ~ 85°C | ||
