G2R-24-AC24
| Manufacturer | |
| Description | General Purpose Relays Power PCB Relay DPDT Sealed 24VAC Electromechanical Relay DPDT 4A 24VAC 260Ohm Through Hole RELAY GEN PURPOSE DPDT 5A 24V Relay;E-Mech;Power;DPDT;Cur-Rtg 5A;Ctrl-V 24AC;Vol-Rtg 250/30AC/DC;PCB Mnt;8 Pin Relay;E-Mech;Power;DPDT;Cur-Rtg5A;Ctrl-V24AC;Vol-Rtg250/30AC/DC;PCBMnt;8Pin General Purpose Relay Coil Voltage: 24 VAC Contact Configuration: 2C DPDT Current : 5 Amps Mounting : PC Board Operating Function: Single Side Stable Omron 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 24V ac |
| Category |
Business
| Lead Time | 118 Days | Subcategory | Electromechanical Relay |
| Part # Aliases | 373549 G2R2424AC G2RN8558M | Product Category | General Purpose Relays |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 5 Amps | Coil Type | Non-Latching |
| Coil Power | 0.9 VA | Coil Current | 37.5 mA |
| Release Time | 10ms | Power - Rated | 120W|1kVA |
| Release Range | 10ms | Visible Output | No |
| Voltage Rating | 125 | Coil Resistance | 260 Ohms |
| Pushing (MHz/V) | No | Voltage - Supply | 24 VAC |
| Switching Voltage | 380VAC, 125VDC - Max | Vgs(th) (Max) @ Id | 7.2 VAC |
| Voltage - Clamping | 19.2VAC | Diode Configuration | No |
| Voltage - Off State | 7.2 VAC | Current Rating (Max) | 5 A |
| Voltage - Input (Min) | 7.2VAC | Voltage - Switching AC | 380V |
| Voltage - Switching DC | 125V | Power - Average Forward | 0.9 VA |
| Vce(on) (Max) @ Vge, Ic | 19.2 VAC | Contact Rating (Current) | 5A |
| Contact Rating @ Voltage | 5A | Current - Peak Pulse (8/20us) | 5 A |
Mechanical
| Seal | Sealed | Depth | 13.5mm |
| Width | 13 mm | Height | 25.5 mm |
| Length | 29 mm | Packaging | Bulk |
| Contact Form | DPDT | Contact Shape | DPDT (2 Form C) |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package Cooled | DIP | Operating Force | 15ms |
| Contact Material | Silver Alloy | Length - Overall | 29 |
| Size / Dimension | 29 x 13.5 x 25.5mm | Termination Style | PC Pin |
| Number of Contacts | 8 | Contact Termination | Pin |
| Insulation Material | 5kV ac | Contact Layout, Typical | DPDT |
Product Info
| Type | Power Relay | Series | G2R |
| Features | Sealed - Fully | Function | Single Side Stable |
| Relay Type | Non-Latching | Application | 电源 |
| Card Standard | General Purpose Relay | Industry Aliases | G2R-24-AC24 |
Environmental
| Operate Time | 15ms | Operational Life | 100000（电气）次操作、10000000（机械）次操作 |
| Operating Temperature | -40°C ~ 70°C | Maximum Temperature Limit | +70°C |
Documents & Media
Similar Parts
PFP-50N
omron electronics
RELAYS MISC. Mounting Track For Solid-State Timer DIN RAIL 35X7.3MM SLOTTED 19.7" Relay Sockets & Hardware DIN RAIL 50 CM DIN MOUNTING RAIL, 35MM,ALUMINIUM DINRAIL,MOUNTINGRAIL,50CM(1.64FT) SEE834-1399PFP-50N 欧姆龙(OMRON) 拨动开关 DIN 导轨, 500mm x 7.3mm x 35mm
P2R-08P
Omron Industrial
Relay Sockets & Hardware PCB SOCKET G2R-2S Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PC MNT FOR G2R-2-S Relay Socket For Use With 2 Pole G2R Series SOCKET, PCB, 8 PIN RELAY SOCKET Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-2-S Socket; PIN:8; 5A; 250VAC; Application: G2R-2-S; Mounting: PCB PCB G2R-2S BACK CONN. SOCKET 继电器插座, 适用于2 极 G2R 系列
P2R-05P
Omron Industrial

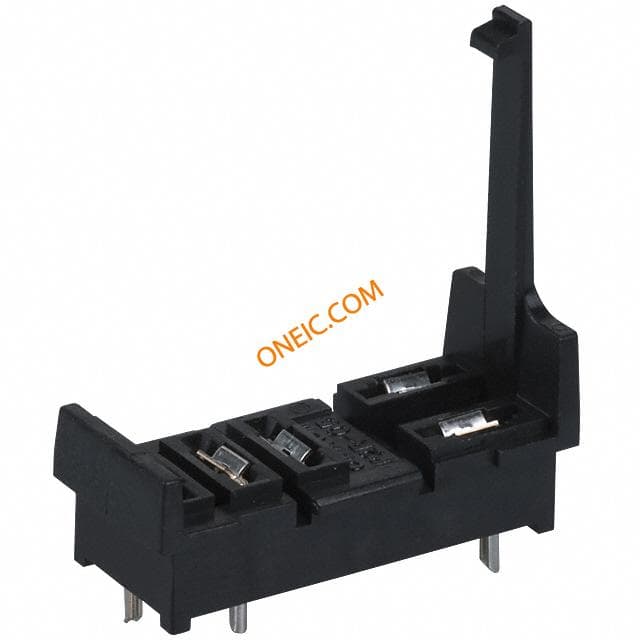

Relay Sockets & Hardware PCB SOCKET G2R-1S Conn Relay Socket SKT 5 POS Solder ST Thru-Hole RELAY SOCKET PC MNT G2R-1-S Relay Socket For Use With 1 Pole G2R Series RELAY SOCKET SOCKET, PCB, G2R/3R, RELAY Socket,Relay;PCBBACKMOUNTSOCKETFORG2R-1-S Socket; PIN:5; 10A; 250VAC; Application: H3RN-1,G2R-1-S; -55÷70°C PCB G2R-1S BACK CONN. SOCKET PCB socket G2R-1-S, P2R-05P, Omron Electronic Components 继电器插座, 适用于1 极 G2R 系列
