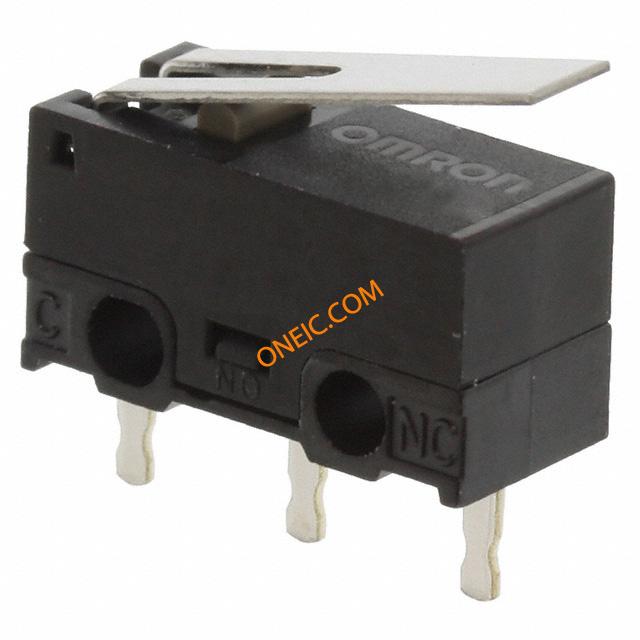

D2F-01L
| Manufacturer | |
| Description | Basic / Snap Action Switches HNG LVR STD uV/C PCB Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 30VDC 0.78N Thru-Hole LEVER SWITCH PCB SPDT .1A 30V SPDT-NO/NC Hinge Lever Microswitch, 0.1 A @ 30 V dc MICROSWITCH, LEVER, SPDT, 0.1A, 30VDC Switch,SubMiniature,SnapAction,HINGERLEVER,PCBTERM.,MicroLOADActuator 欧姆龙(OMRON) 限位开关 Microswitch; with lever; SPDT; 0.1A/30VDC; ON-(ON); 1-position Snap Action Switch Actuator Type: Lever (Straight) Mounting Type: PC Board Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 0.1 Amps Micro switch 0.1 A Flat lever Snap-action switch 1 change-over (CO), D2F-01L, Omron Electronic Components Omron 单刀双掷 - 常开/常闭 摆杆 微动开关, 100 mA @ 30 V 直流 |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Switch Snap Action |
| Part # Aliases | 365750 9774718 D2F01LNCD2F01LOEI12 | Product Category | Basic / Snap Action Switches |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULListed,CSACertified |
| Tariff No | 85365007 | ||
Electrical
| Circuit | SPDT | Operation | SnapAction |
| Voltage Rating | 30V | Number of Poles | 1 |
| Switch Function | On-Mom | Switching Voltage | ON-(ON) |
| Dielectric Strength | 1500VAC | Differential Travel | 0.020" (0.5mm) |
| Current Rating (Max) | 100mA (DC) | Current - Max/Contact | :100mA |
| Switch Function/Rating | N.O./N.C. | Contact Rating (Current) | 0.1 A @ 30 V dc |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 5.8 | Height | 11.5 |
| Length | 12.8mm | Weight | 0.017637 oz |
| Packaging | Bulk | Lead Style | for PCB, straight |
| Overtravel | 0.022" (0.55mm) | Body Finish | UltraSubminiature |
| Size - Body | 12.8 x 5.8 x 6mm | Termination | PCBPins |
| Contact Form | SPDT | Actuator Type | Lever, Straight |
| Mounting Type | Through Hole | Release Force | 5gf |
| Terminal Type | PC Pins | Mounting Style | PCB |
| Operating Force | 80gf | Contact Material | Gold Alloy |
| Length - Overall | 13.95 | Package Quantity | 194 |
| Actuator Material | Stainless Steel/N/A | Pitch - Connector | 5.08mm |
| Termination Style | PC Pin | Actuator Style/Size | Hinge Lever |
| Number of Positions | 1-position | Mounting Hole Diameter | 1.2mm |
| Switch Actuation Level | SPDT | Contact Layout, Typical | SPDT-NO/NC |
| Torque - Rated (oz-in / mNm) | 1.47N | ||
Product Info
| Spg | 194 | Type | Standard |
| Series | D2F | CAD Drawing | 3D CAD Model |
| Switch Type | microswitch | Manufacturer | D2F-01Series |
| Electrical Life | 30,000 Cycles | Number of Units | 1 |
| Switch Features | with lever | Industry Aliases | D2F-01L |
| Operating Position | 0.268" (6.8mm) | Contacts Configuration | SPDT |
Environmental
| Seal Rating | IP40 | Mechanical Life | 1,000,000 Cycles |
| Ingress Protection | IP40 | Operating Temperature | -25°C ~ 65°C |
