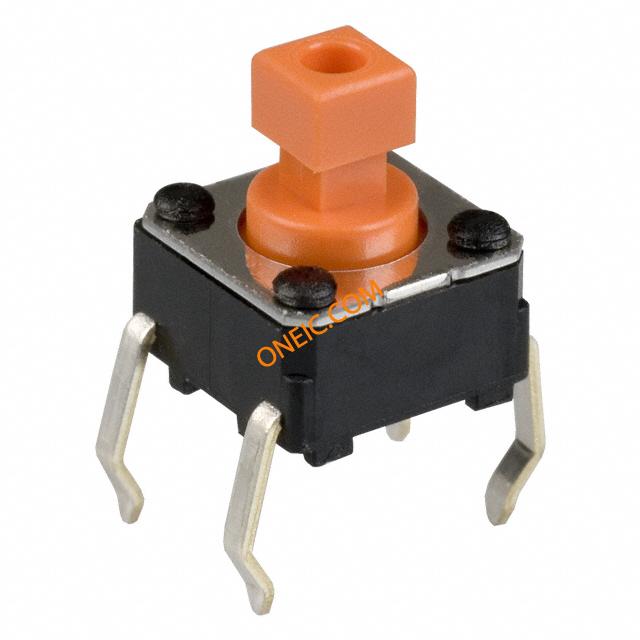

B3F-1025
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Flat Plunger PC Pins 0.05A 24VDC 2.55N Thru-Hole Bag SWITCH TACTILE SPST-NO 0.05A 24V Pink Plunger Tactile Switch, SPST-NO 0.05 A @ 24 V dc 0.9mm Tactile Switches 6MM Tactile Switch 260GF 5.0MM SWITCH, 6X6, SPNO, 260GF Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 2.55N; 6x6mm Tactile Switch Mounting: PC Board Operating direction: Vertical Operating force: 260 gf Travel: - Dimensions: 6x6 mm PCB Switch 24 VDC 50 mA Through Hole pink, B3F-1025, Omron Electronic Components Omron 粉红色 柱塞 触觉开关 , 单刀单掷 - 常开, 0.05 A@ 24 V 直流 0.9mm |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Switch Tactile |
| Part # Aliases | 1532003 363976 | Product Category | Tactile Switches |
| Standard Package | Trays | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365007 |
Electrical
| Circuit | SPST-NO | Voltage Rating | 24 V |
| Switch Function | Off-Mom | Switching Voltage | OFF-(ON) |
| Contact Resistance | 100mΩ | Current Rating (Max) | 0.05@24VDC A |
| Current - Max/Contact | :50mA | Insulation Resistance | 100MΩ |
| Switch Function/Rating | N.O. | Contact Rating (Current) | 0.05 A @ 24 V dc |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :24V | DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
Mechanical
| Depth | :5.0mm | Shape | round |
| Height | 4.3 | Weight | 0.00025 |
| Outline | 6.00mm x 6.00mm | Packaging | Bag |
| Lead Style | for PCB, straight | Size - Body | 6 x 6mm |
| Contact Form | SPST | Height (Max) | 5mm |
| Actuator Type | Standard | Mounting Type | Through Hole |
| Switch Travel | 0.25mm | Terminal Type | PC Pins |
| Actuator Color | Pink | Connector Type | No |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Actuator Length | 0.9mm | Operating Force | 2.55 N |
| Contact Material | Gold Plated | Length - Overall | 6 |
| Pitch - Connector | 4.5x6.5mm | Termination Style | PC Pin |
| Actuator Style/Size | Flat Plunger | Number of Positions | 1-position |
| Actuator Orientation | Top Actuated | Switch Actuation Level | SPST |
| Contact Layout, Typical | SPST-NO | Contact Material - Plating | silver plated |
| Torque - Rated (oz-in / mNm) | 2.55N | Actuator Height off PCB, Vertical | 5.00mm |
Product Info
| Type | Miniature | Series | B3F |
| CAD Drawing | 3D CAD Model | Switch Type | microswitch |
| Illumination | Non-Illuminated | Electrical Life | 300000 |
| Number of Units | 5 | Industry Aliases | B3F-1025 |
| Other Specifications | 0.25mm | Contacts Configuration | SPST-NO |
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -25 to 70 °C |
