A6DR-0100
| Manufacturer | |
| Description | DIP Switches / SIP Switches 10 PN SEALD SIDE ACT Switch DIP ON OFF SPST 10 Piano 0.1A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Box SWITCH DIP 10POS SIDE SEALED 30V DIP Switch 10P PCB Piano, 0.1 A @ 5 V dc, 10-Way, -20 to +70°C Switch DIP ON OFF SPST 10 Piano 0.1A 30VDC PC Pins 5000Cycle 2.54mm Thru-Hole Box SWITCH DIP 10POS SIDE ACT SEALED Switch: DIP-SWITCH; Poles number:10; ON-OFF; 0.03A/30VDC; 100MΩ DIP Switches Actuator Type : - Construction: Unsealed Contact Configuration : 10 Pole Contact Rating : 100mA, 5 VDC Service Life (Electrical): 2K Oper. Min. Service Life (Mechanical): 5K Oper. Min. Switch Type : DIP Termination Configuration : PCB DIL switch THD 10P, A6DR-0100, Omron Electronic Components |
| Category |
Business
| Lead Time | 96 Days | Other Names | A6DR0100 |
| Subcategory | Switch DIP | Part # Aliases | 363496 |
| Product Category | DIP Switches / SIP Switches | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST | Voltage - Test | 500 |
| Voltage Rating | 30 | Number of Poles | 10 |
| Switching Voltage | ON-OFF | Contact Resistance | <100 mOhm |
| Switching Capacity | 30 mA@ 30 VDC | Current Rating (Max) | 100 mA |
| Insulation Resistance | >100 MOhm | Switch Function/Rating | ON OFF |
| Contact Rating (Current) | 0.1 A @ 5 V dc | Contact Rating @ Voltage | 100 mA |
| DC contacts rating (at resistance load) | 0.03 A / 30 VDC | ||
Mechanical
| Size | 27.4 x 10.75 x 6.4 mm | Depth | 10.75 |
| Pitch | 2.54 | Height | 7.4 |
| Length | 27.4 | Weight | 3.04 g |
| Packaging | Box | Orientation | Side Actuated |
| Pitch - Post | 2.54 mm | Actuator Type | Switch |
| Body Material | PBT | Mounting Type | Through Hole |
| Terminal Type | PC Pins | Actuator Level | Raised |
| Contact Finish | Gold | Package / Case | DIP-10 |
| Actuation Force | side, short lever | Contact Material | Beryllium Copper |
| Length - Overall | 27.4mm | Pitch - Connector | 2.54mm |
| Termination Style | Solder Pin | Actuator Style/Size | Piano |
| Number of Positions | 10 | Switch Actuation Level | SPST |
| Contact Layout, Typical | 10P | Actuator Height off PCB, Vertical | Raised |
Product Info
| Type | Switches | Design | Through-Hole |
| Series | A6D | Washable | Yes |
| CAD Drawing | 3D CAD Model | Switch Type | DIP |
| Circuit Type | SPST | Card Standard | DIP Switch |
| Electrical Life | 2000cycles | Number of Units | 1 |
| Switch Features | "piano" long actuator | Industry Aliases | A6DR-0100 |
| Connection Method | THD | ||
Environmental
| Mechanical Life | 5000Operations | Operating Temperature | - 20 C to + 70 C |
Documents & Media
Similar Parts

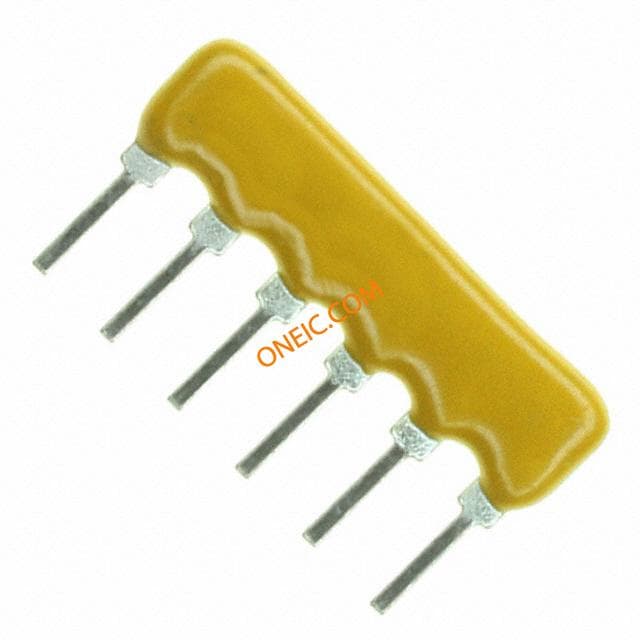

4606X-101-103LF
