4606X-101-103LF
| Manufacturer | |
| Description | Res Thick Film NET 10K Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RES ARRAY 10K OHM 5 RES 6SIP 5-bussed thick film resistor,10K 0.2W Resistor Networks & Arrays 6pins 10Kohms Bussed Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ?100ppm/C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RESISTOR NETWORK, 10K Resistor;10Kilohms;0.75W;2%;100V(Max.);100ppm/DegC Resistor network SIL 10 kOhm ± 2 %, 4606X-101-103LF, Bourns |
| Category |
Business
| Product Category | Resistor Networks & Arrays | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85332100 | Rad Hardened | No |
| Military Standard | Not Required | ||
Electrical
| Circuit | BussedNetwork | Tolerance | ±2% |
| Resistance | 10 KOhm | Power - Max | 0.2W |
| Power - Rated | 3/4 W | Voltage Rating | 100 V |
| Circuit Pattern | BUS | Resistor Values | 10 kOhms |
| Power Per Element | 200mW | Resistance (Ohms) | 10k |
| Number of Elements | :5 | Power - Peak Pulse | 1/5 W |
| Number of Resistors | 5 | Resistance Tolerance | :± 2% |
| Resistor - Base (R1) | :Radial Leaded | Insulation Resistance | :10Mohm |
Mechanical
| Depth | 2.49mm | Width | :2.49mm |
| Height | 0.200" (5.08mm) | Length | 15.19mm |
| Weight | 0.025 | Base Type | :SIP |
| Packaging | Bulk | Lead Spacing | 2.54 mm |
| Pitch - Post | 2.54 mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | 6 |
| Package / Case | 6-SIP | Package Cooled | SIP |
| Length - Overall | 15.19 mm | Size / Dimension | 0.598" L x 0.098" W (15.19mm x 2.49mm) |
| Termination Style | SIP | Length - Lead Wire | :3.43mm |
| Number of Contacts | 6 | Resistive Material | :Thick Film Array |
| Number of Positions | 6 | Supplier Device Package | 6-SIP |
Product Info
| Type | Network | Series | 4600X |
| Technology | Thick Film | Circuit Type | Bussed |
| Failure Rate | Not Required | Manufacturer | 4600XSeries |
| Product Type | Networks | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±100 ppm/°C |
| Temperature Coefficient (Typ) | :50ppm/°C | ||
Documents & Media
Similar Parts
4606X-101-103LF
bourns
Res Thick Film NET 10K Ohm 2% 3/4W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RES ARRAY 10K OHM 5 RES 6SIP 5-bussed thick film resistor,10K 0.2W Resistor Networks & Arrays 6pins 10Kohms Bussed Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ?100ppm/C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk RESISTOR NETWORK, 10K Resistor;10Kilohms;0.75W;2%;100V(Max.);100ppm/DegC Resistor network SIL 10 kOhm ± 2 %, 4606X-101-103LF, Bourns

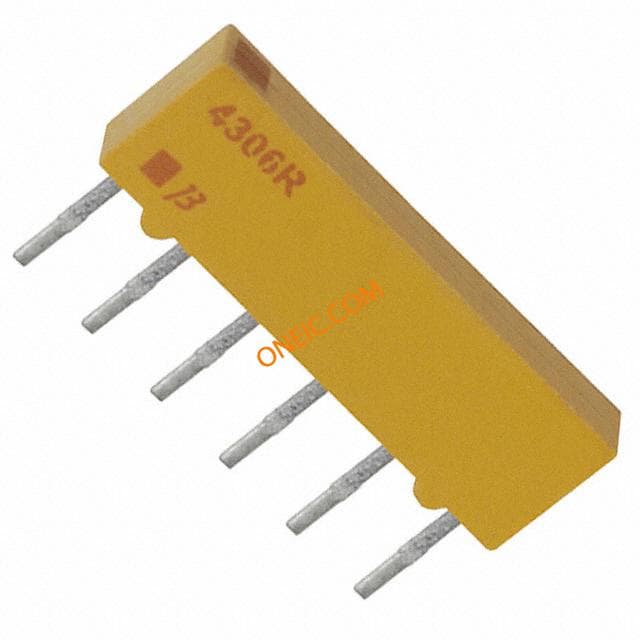

4306R-101-103LF
