点击放大查看

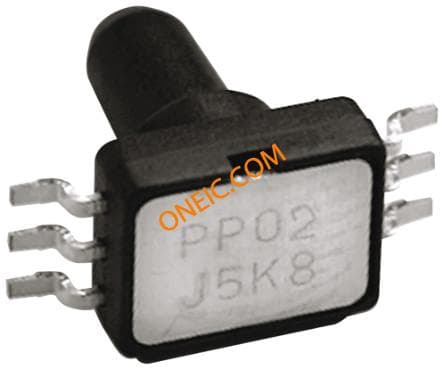

2SMPP-02
| Manufacturer | |
| Description | Pressure Sensor 0KPa to 37KPa Gage 6-Pin SOP Pressure Sensor 0kPa to 37kPa Gage 6-Pin SOP SENSOR PRESSURE 0-5PSI 2-37KPI MEMS Gauge Pressure Sensor 0-37kPa SOP6 Board Mount Pressure / Force Sensors MEMS MicroFlowSensor 0-37kPa (0-280 mmHg) PRESSURE SENSOR, MEMS, GAUGE, 0-37KPA Sensor: pressure; Range:0÷37kPa; referential; 0÷85°C; Case: SOP6 Pressure sensor, 2SMPP-02, Omron Electronic Components Omron 计量 压力传感器 , 37kPa最大压力读数 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 336 | Lead Time | 51 Days |
| Unit Pack | 112 | Subcategory | Board Mount Pressure Sensor |
| Part # Aliases | 1858453 693217 | Product Category | Board Mount Pressure / Force Sensors |
| Standard Package | Bulk | Factory Pack Quantity | 112 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365019 |
| ESD Protection | 1@HBM | ||
Electrical
| Output | Analog | Output Type | Analog |
| Sensor Type | pressure | Operating Mode | referential |
| Voltage Rating | 4 mV | Current - Output | 100 uA |
| Current - Supply | 0.1 | Voltage - Supply | 5 V |
| Overload Protection | 53 KPa | ||
Mechanical
| Width | 6.15mm | Height | 8.25mm |
| Length | 4.75mm | Weight | 0.00017 |
| Port Size | Male, 0.102" (2.6mm) Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 6SOP | Package Cooled | SOP |
| Pressure (PSI) | :37kPa | Pressure Range | Gage |
| Maximum Pressure | 53kPa | Package Quantity | SOP |
| Size / Dimension | 4.75 x 6.15 x 8.25mm | Termination Style | Gull Wing |
| Number of Positions | 6 | Maximum Pressure (PSI) | 37kPa |
Product Info
| Series | 2SMPP-02 | Measuring Range | 0...37kPa |
| Number of Units | 1 | ||
Environmental
| Pressure Type | Gauge | Burst Pressure | :53kPa |
| Operating Pressure | 0 ~ 5.4 PSI, 0 ~ 37 kPa | Operating Temperature | 0°C ~ 50°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
