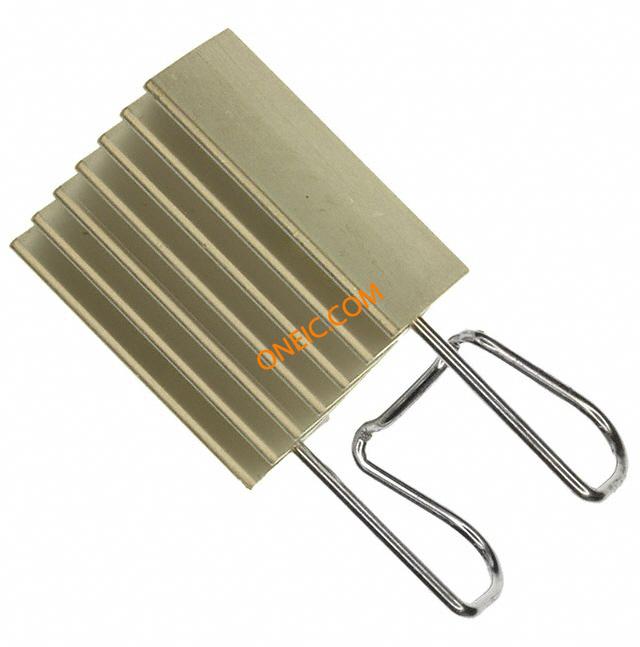

WV-T247-101E
| Manufacturer | |
| Description | Heat Sinks Heatsink for TO-247 DEGREASED HEATSINK AND CLIP FOR TO-247 Heat Sink Passive TO-247 Extruded Solder/Clip Aluminum Alloy 6063-T5 9°C/W HEATSINK, TO-247, NO FINISH Heatsink; thru hole vertical mounting; Aluminum Alloy 6063-T5; for TEH70 Series |
| Category |
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | WVT247101E | Subcategory | Heat Sink |
| Product Category | Heat Sinks | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 16 mm | Finish | Degreased |
| Height | 30.5 mm to 32 mm | Length | 23.4 mm |
| Weight | 0.012 | Material | Aluminum |
| Packaging | Bulk | Surface Type | 8.4 in.2 |
| Mounting Style | Through Hole | Package Cooled | TO-247 |
| Width (Inches) | :0.92" | Height (Inches) | :1.26" |
| Material Finish | Degreased | Width - Overall | :23.4mm |
| Length - Overall | :0.63" | Primary Material | TO-247 |
| Size / Dimension | 23.4 mm L x 16 mm W x 32 mm H, 0.92 in. L x 0.63 in. W x 1.26 in. H | Attachment Method | Clip and PC Pin |
| Heat Sink Material | Aluminum Alloy, Copper Alloy | Height - Seated (Max) | 0.630" (16.00mm) |
| Shell Size - Insert (Convert From) | :32mm | ||
Product Info
| Type | Board Level, Vertical | Features | Maximum Repeatability, Maximum Resistance to Shock and Vibration, Maximum Reliability, Maximum Heat Transfer per Unit Space, RoHS Compliant |
| Application | TO-247 | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 7 C/W |
| Thermal Resistance @ Natural | 9°C/W | Power Dissipation @ Temperature Rise | 1W @ 20°C |
| Thermal Resistance @ Forced Air Flow | 8°C/W @ 500 LFM | ||
