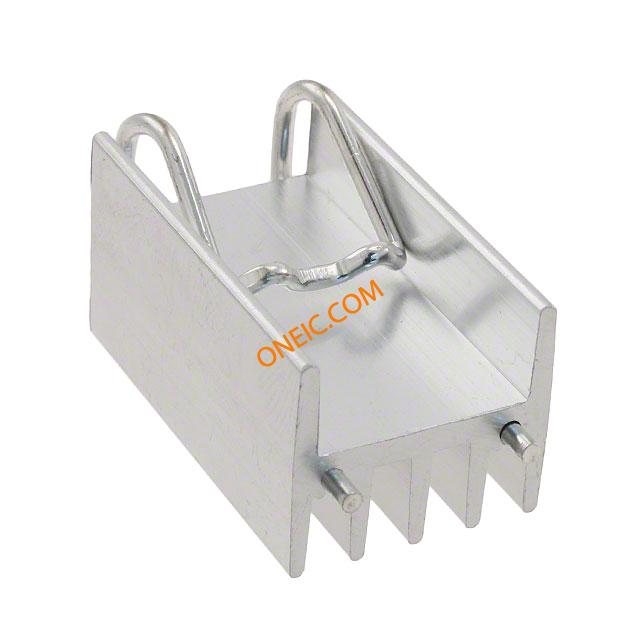

WV-T220-101E
| Manufacturer | |
| Description | Heat Sinks Heatsink for TO-220 DEGREASED HEATSINK AND CLIP FOR TO-220 Heat Sink Passive TO-220 Extruded Solder/Clip Aluminum Alloy 6063-T5 13°C/W HEATSINK, TO-220, NO FINISH Heatsink; thru hole vertical mounting; Aluminum Alloy 6063-T5; for TBH25 & TCH35 |
| Category |
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | WVT220101E | Subcategory | Heat Sink |
| Product Category | Heat Sinks | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 16 mm | Finish | Degreased |
| Height | 30.5 mm | Length | 18.3 mm |
| Weight | 0.01 | Material | Aluminum |
| Packaging | Bulk | Surface Type | 6.5 in.2 |
| Mounting Style | Through Hole | Package Cooled | TO-220 |
| Width (Inches) | :0.72" | Height (Inches) | :1.2" |
| Material Finish | Degreased | Width - Overall | :18.3mm |
| Length - Overall | :0.63" | Primary Material | TO-220 |

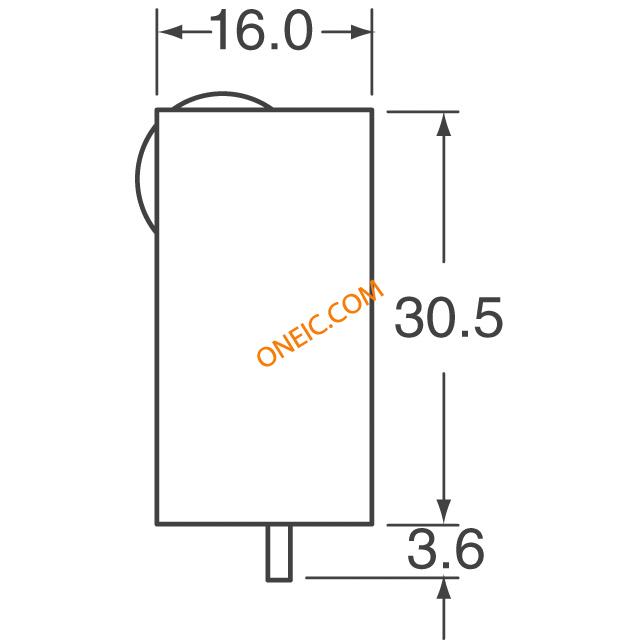

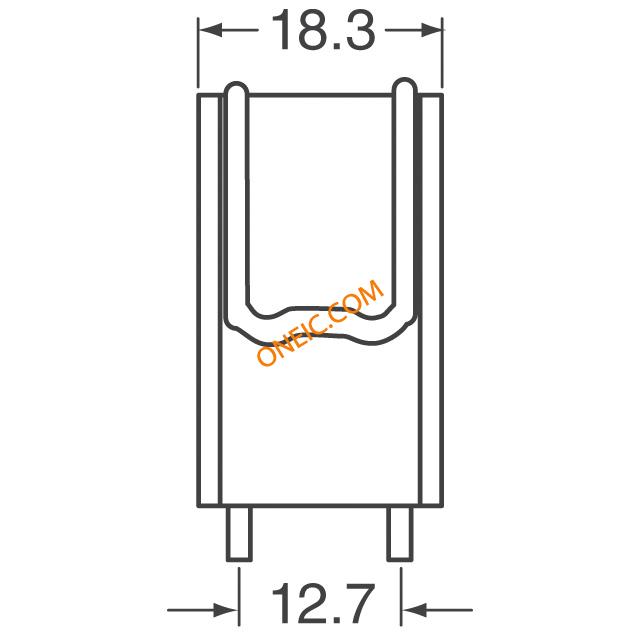

| Size / Dimension | 18.3 mm L x 30.5 mm H x 16 mm W, 0.72 in. L x 1.2 in. H x 0.63 in. W | Attachment Method | Clip and PC Pin |
| Heat Sink Material | Aluminum Alloy, Copper Alloy | Height - Seated (Max) | 0.630" (16.00mm) |
| Shell Size - Insert (Convert From) | :30.5mm | ||
Product Info
| Type | Board Level, Vertical | Features | Maximum Repeatability, Maximum Resistance to Shock and Vibration, Maximum Reliability, Maximum Heat Transfer per Unit Space, RoHS Compliant |
| Application | TO-220 | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 10 C/W |
| Thermal Resistance @ Natural | 13°C/W | Power Dissipation @ Temperature Rise | 1W @ 20°C |
Documents & Media
Similar Parts
WV-T220-101E
Ohmite
Heat Sinks Heatsink for TO-220 DEGREASED HEATSINK AND CLIP FOR TO-220 Heat Sink Passive TO-220 Extruded Solder/Clip Aluminum Alloy 6063-T5 13°C/W HEATSINK, TO-220, NO FINISH Heatsink; thru hole vertical mounting; Aluminum Alloy 6063-T5; for TBH25 & TCH35
120-5
Wakefield
Chemicals SILICON GREASE 5oz. SILICON GREASE 5 OZ TUBE Thrml Mgmt Access Thermal Grease Opaque White 56°C/W 0.735W/m.K 5X10e14Ohm.cm Tube HEAT SINK, COMPOUND, 0.14KG, TUBE ThermalGrease;Tube5oz.;White;SiliconeOilBased;120Series 120 Series 5 oz Tube Silicone Oil Based Thermal Joint Compound
3430
Ohmite
Bench Top Tools CAP RANGER BOX CAP-RANGER CAPACITANCE SELECTO Cap-Ranger, Capacitance Selector

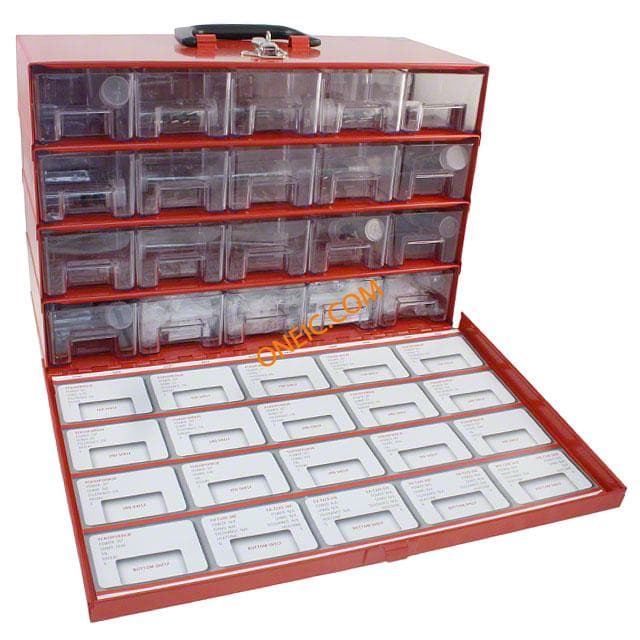

CAB-TCHHS
