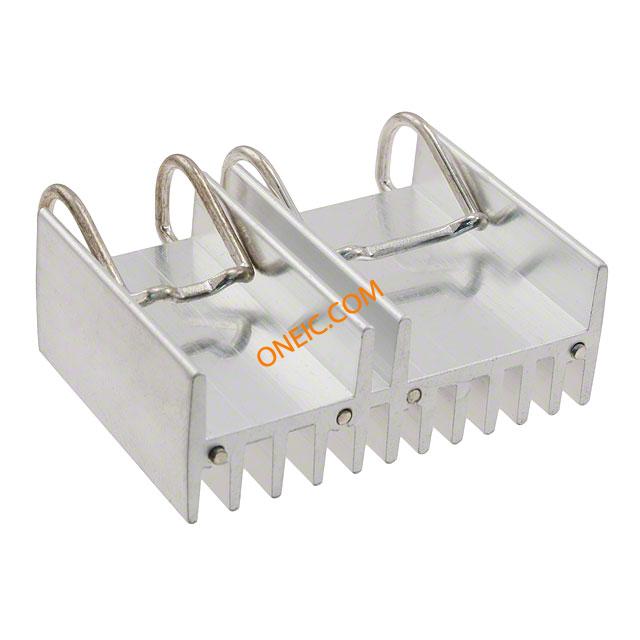

WV-DT2-101E
| Manufacturer | |
| Description | HEATSINK DUAL FOR TO-220/247 Heat Sinks DUAL HEATSINK Heat Sink Passive TO-220/TO-247 Extruded Solder/Clip Aluminum Alloy 6063-T5 6°C/W HEATSINK, TO-247/220, NO FINISH Dual TO-220 and TO-247 Heatsink |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 98 Days | Other Names | WVDT2101E |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Shape | Rectangular | Width | 1.710" (43.43mm) |
| Finish | Degreased | Length | 1.200" (30.48mm) |
| Weight | 0.022 | Material | Aluminum |
| Packaging | Bulk | Surface Type | 15.1 in.2 |
| Package Cooled | TO-220, TO-247 (Dual) | Width (Inches) | :1.71" |
| Height (Inches) | :1.26" | Material Finish | Degreased |
| Width - Overall | :43.4mm | Length - Overall | :0.63" |
| Primary Material | TO-220/TO-247 | Size / Dimension | 43.4 mm L x 65.1 mm W x 16 mm H, 1.71 in. L x 2.56 in. W x 0.63 in. H |
| Attachment Method | Clip and PC Pin | Height - Seated (Max) | 0.630" (16.00mm) |
| Shell Size - Insert (Convert From) | :32mm | ||
Product Info
| Type | Board Level, Vertical | Series | W Series Heatsinks |
| Features | Maximum Repeatability, Maximum Resistance to Shock and Vibration, Maximum Reliability, Maximum Heat Transfer per Unit Space, RoHS Compliant | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | :8°C/W |
| Thermal Resistance @ Natural | 6°C/W | Power Dissipation @ Temperature Rise | 4W @ 40°C |
| Thermal Resistance @ Forced Air Flow | 6.0°C/W @ 200 LFM | ||
