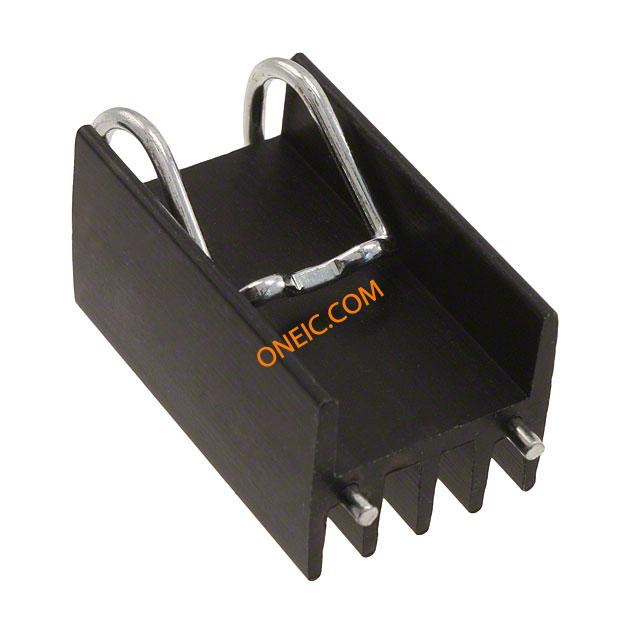

WA-T220-101E
| Manufacturer | |
| Description | Heat Sinks Heatsink for TO-220 BLK ANODIZED HEATSINK AND CLIP FOR TO-220 BLK Heat Sink Passive TO-220 Extruded Solder/Clip Aluminum Alloy 6063-T5 10°C/W Black Anodized HEATSINK, TO-220, BLACK HEATSINK AND CLIP FOR TO-220 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | WAT220101E | Subcategory | Heat Sink |
| Product Category | Heat Sinks | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 16 mm | Finish | Black Anodized |
| Height | 30.5 mm | Length | 18.3 mm |
| Weight | 0.01 | Material | Aluminum |
| Packaging | Bulk | Fin Height | Extruded |
| Surface Type | 6.5 in.2 | Mounting Style | Through Hole |
| Package Cooled | TO-220 | Width (Inches) | :0.72" |
| Height (Inches) | :1.2" | Material Finish | Black Anodized |
| Width - Overall | :18.3mm | Length - Overall | :0.63" |
| Primary Material | TO-220 | Size / Dimension | 18.3 mm L x 30.5 mm H x 16 mm W, 0.72 in. L x 1.2 in. H x 0.63 in. W |
| Attachment Method | Clip and PC Pin | Heat Sink Material | Aluminum |
| Height - Seated (Max) | 0.630" (16.00mm) | Shell Size - Insert (Convert From) | :30.5mm |
Product Info
| Type | Board Level, Vertical | Features | Maximum Repeatability, Maximum Resistance to Shock and Vibration, Maximum Reliability, Maximum Heat Transfer per Unit Space, RoHS Compliant |
| Application | TO-220 | Application Specifics | Thermal Management |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 10 C/W |
| Thermal Resistance @ Natural | 10°C/W | Power Dissipation @ Temperature Rise | 1W @ 20°C |
