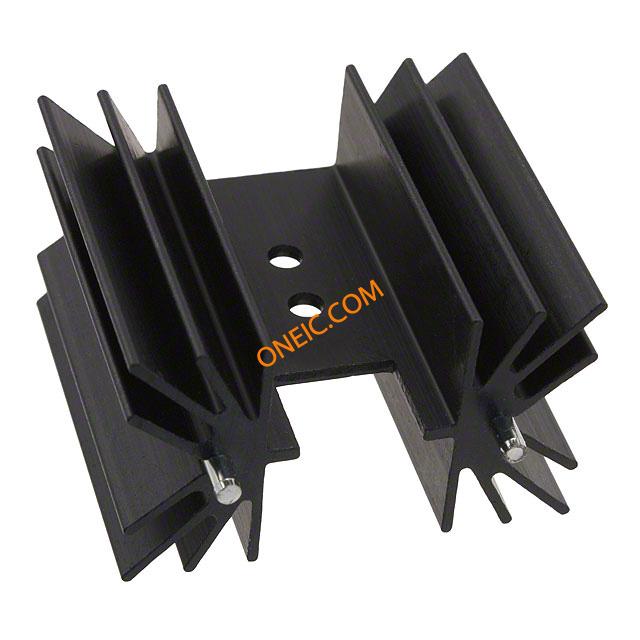

FA-T220-38E
| Manufacturer | |
| Description | Heat Sinks HEATSINK FOR TO-220 BLK ANODIZED HEATSINK FOR TO-220 1.5" Heat Sink Passive TO-220/TO-218/TO-247 Screw Mount 3.8°C/W Black Anodized HEATSINK, TO-220, BLACK HEATSINK FOR TO-220 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | FAT22038E | Subcategory | Heat Sink |
| Product Category | Heat Sinks | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Shape | Rectangular | Width | 25 mm |
| Finish | Black Anodized | Height | 38.1 mm |
| Length | 41.6 mm | Weight | 0.027 |
| Material | Aluminum | Packaging | Bulk |
| Fin Height | Omnidirectional | Surface Type | 13.756 mm2 |
| Mounting Style | Through Hole | Package Cooled | TO-220 |
| Width (Inches) | :0.98" | Height (Inches) | :1.5" |
| Material Finish | Black Anodized | Width - Overall | :25mm |
| Length - Overall | :1.638" | Primary Material | TO-220 |
| Size / Dimension | 38.1 mm L x 41.6 mm W x 25 mm H, 1.5 in. L x 1.638 in. W x 0.98 in. H | Attachment Method | Bolt On and PC Pin |
| Heat Sink Material | Aluminum | Height - Seated (Max) | 0.984" (25.00mm) |
| Shell Size - Insert (Convert From) | :38.1mm | ||
Product Info
| Type | Board Level, Vertical | Features | For Vertical Mounting with Solderable Pins |
| Application | TO-220 | Application Specifics | BH25, TCH35, TEH70, TEH100 Resistors |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | 3.8 C/W |
| Thermal Resistance @ Natural | 3.8°C/W | Power Dissipation @ Temperature Rise | 10W @ 50°C |
| Thermal Resistance @ Forced Air Flow | 1.5°C/W @ 600 LFM | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
