点击放大查看

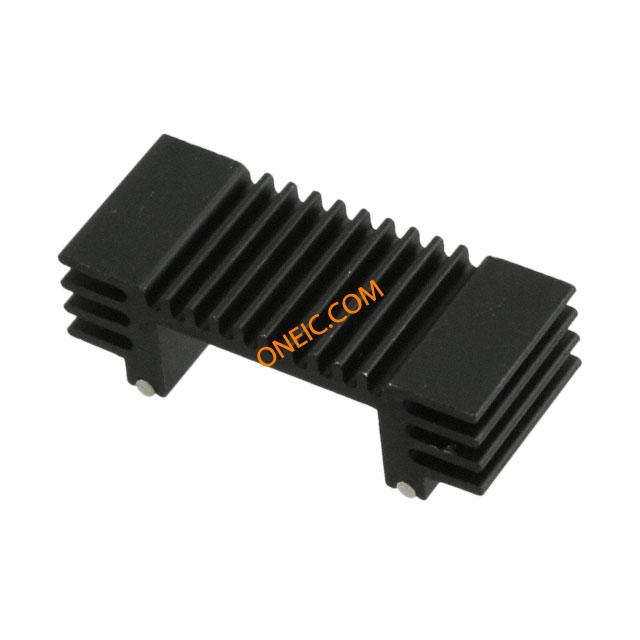

DA-T268-101E
| Manufacturer | |
| Description | Heat Sinks HEATSINK FOR TO-268 BLK ANODIZED HEATSINK FOR TO-268 BLACK Heat Sink Passive TO-268 Stamped Surface Mount Aluminum Black Anodized HEATSINK, SMD, D3 PACK, BLACK HEATSINK FOR TO-268 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 98 Days |
| Other Names | DAT268101E | Subcategory | Heat Sink |
| Product Category | Heat Sinks | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 76041090 | ||
Mechanical
| Color | Black | Shape | Rectangular |
| Width | 12.7 mm | Finish | Black Anodized |
| Height | 10.16 mm | Length | 31 mm |
| Weight | 0.0041 | Material | Aluminum |
| Packaging | Bulk | Fin Height | Extruded |
| Mounting Style | SMD/SMT | Package Cooled | TO-268 |
| Width (Inches) | :0.5" | Height (Inches) | :0.4" |
| Material Finish | Black Anodized | Width - Overall | :12.7mm |
| Length - Overall | :1.22" | Primary Material | TO-268 |
| Size / Dimension | 31 mm L x 12.7 mm W x 10.16 mm H, 1.22 in. L x 0.5 in. W x 0.4 in. H | Attachment Method | Solderable Feet |
| Heat Sink Material | Aluminum | Height - Seated (Max) | 0.400" (10.16mm) |
| Shell Size - Insert (Convert From) | :10.16mm | ||
Product Info
| Type | Top Mount | Features | Radius Mounted Rollers are Designed for Maximizing Heat Transfer from the Component and Avoiding the Thermal "Bottle-Neck" Seen in Stamped and Staked Heatsinks |
| Application | TO-268 | Application Specifics | Thermal Management, SMT Compatible Semiconductors, Resistors |
Environmental
| Heat Protection | :Aluminium | Thermal Resistance | :- |
| Power Dissipation @ Temperature Rise | 5W @ 35°C | Thermal Resistance @ Forced Air Flow | 6°C/W @ 600 LFM |
