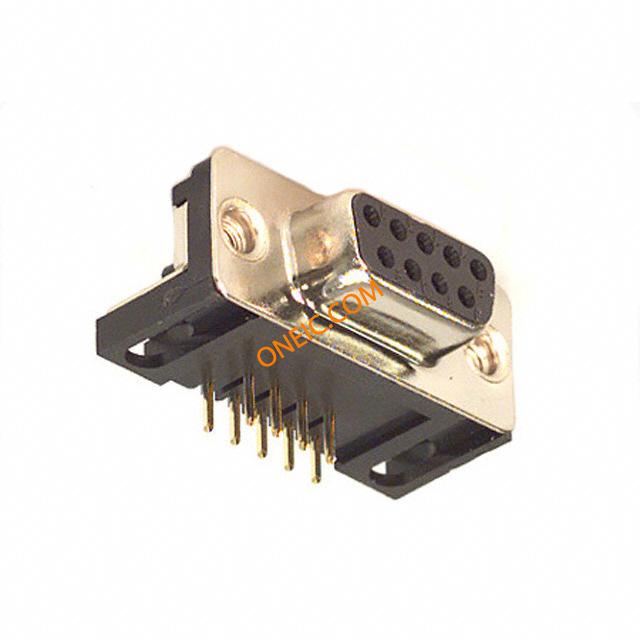

182-009-213R171
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Fem R/A ground straps 4-40 inserts CONN DB9 FEMALE .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 9WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 90 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - 182 Series | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Weight | 0.0073 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Right | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Steel |
| Contact Material | Brass, Phosphor Bronze | Housing Material | Polyamide (PA9T), Nylon 9T |
| Termination Style | Solder | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | Series | 182 |
| Features | Ground Strap | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
