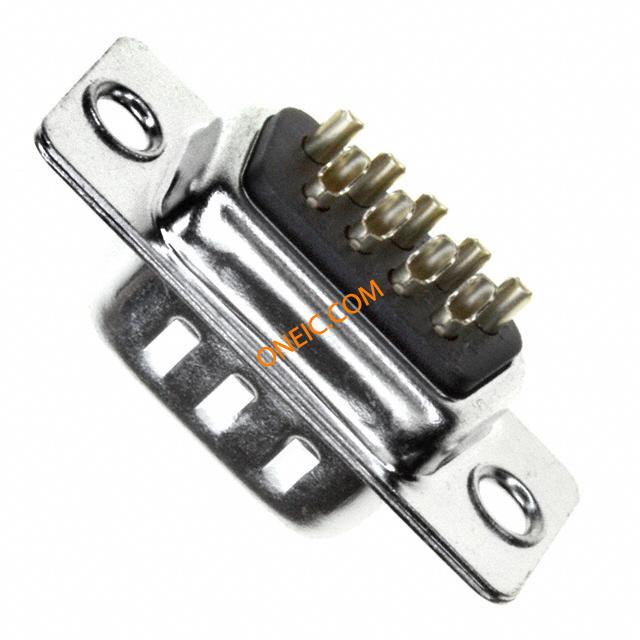

171-009-102L001
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Packaging | Tray |
| Insulation | Insulated | Wire Gauge | 28-20 |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Straight | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 9 | Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 9 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Gender | Male | Series | 171 |
Environmental
| Operating Temperature | - 50 C to + 100 C | ||
Documents & Media
Similar Parts

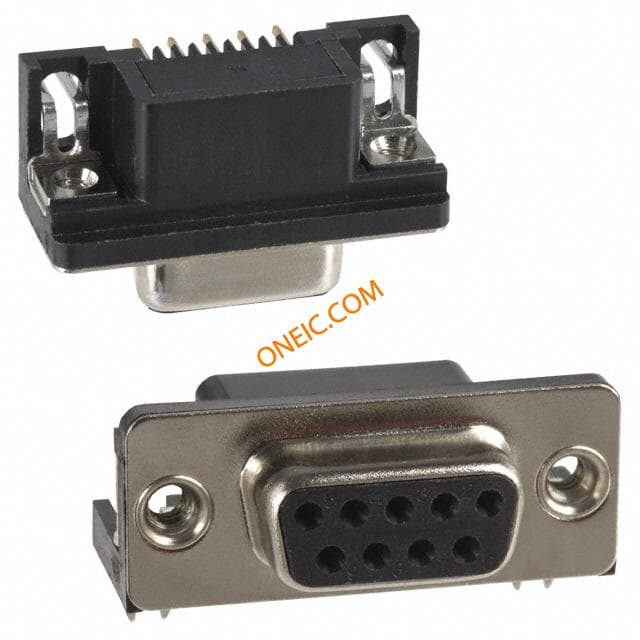

182-009-213R531
NorComp
D-Sub Standard Connectors 9P FEMALE RT ANGLE .318 FOOTPRINT CONN DB9 FEMALE .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 9WAY
170-009-272L000
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 CRIMP FEMALE TIN
171-009-203L001
NorComp
D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SLD CUP NICKEL

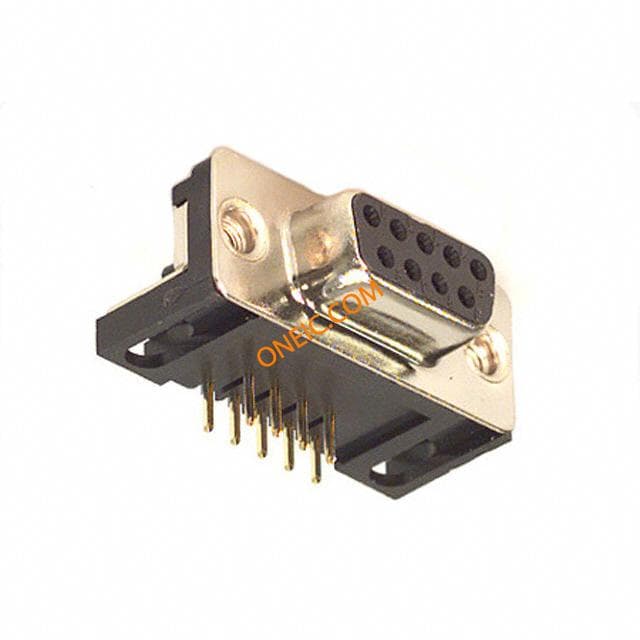

182-009-213R171
NorComp
D-Sub Standard Connectors 9P Fem R/A ground straps 4-40 inserts CONN DB9 FEMALE .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 9WAY
170-009-273L000
NorComp
D-Sub Standard Connectors 9P FEMALE CRIMP POKE NICKEL SHELL CONN DB9 CRIMP FEMALE NICKEL D-SUB SHELL, DB9, CRIMP, RECPT, 9WAY
.jpg&w=3840&q=75)
171-009-203L021
NorComp
D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 2 CONN DB9 FEMALE SLD CUP NICKEL
171-009-202L001
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN
171-009-203L031
NorComp
D-Sub Standard Connectors 9P Female Solder Cup w/ Clinch Nut 3 CONN DB9 FEMALE SLD CUP NICKEL
171-009-202L011
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FMALE SOLDER CUP TIN

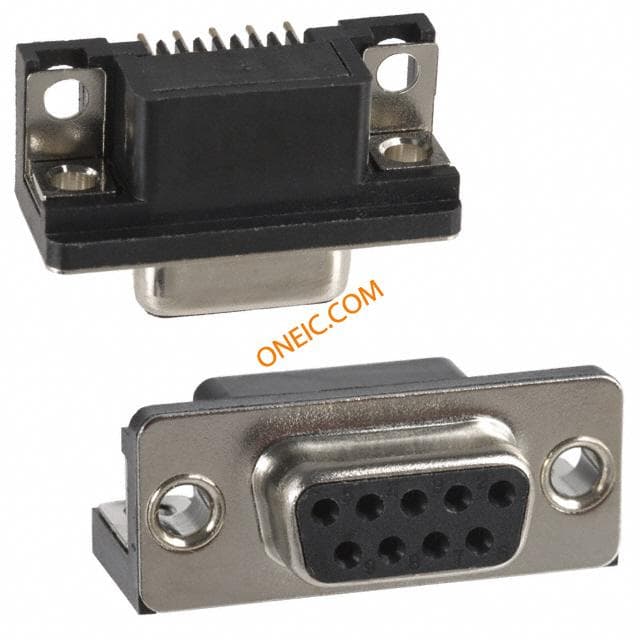

182-009-213R161
NorComp
D-Sub Standard Connectors 9P Fem R/A inside ground straps CONN DB9 FEMALE .318" R/A NICKEL

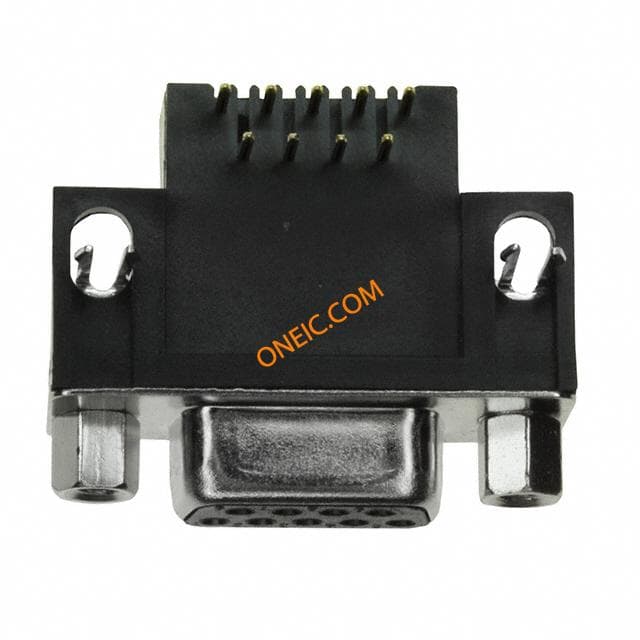

183-009-213R561
NorComp
D-Sub Standard Connectors 9P Fem R/A Bdlk 4-40 Screw Locks CONN DB9 FEML .590 R/A MET SHELL

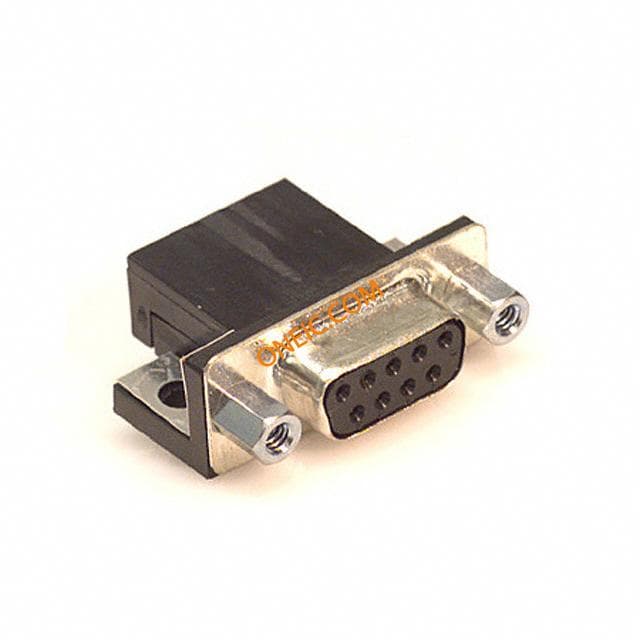

183-009-213R181
