180-M44-203L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P HD Fem Sol Cup Machined Nickel CN3 CONN DB44 FMAL HD SLD CUP NICKEL |
| Category |
Business
| Tradename | M-SERIES | Other Names | 180-M4431FN |
| Product Category | D-Sub High Density Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side (4-40) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Termination Style | Solder |
| Number of Contacts | 44 | Number of Positions | 44 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 3 (DB, B) High Density | ||
Product Info
| Gender | Male | Features | Shielded |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
993-025-020R121
NorComp
D-Sub Backshells 25P Ecn 45 deg entry metalized plas shell BACKSHELL DB25 45DEG MET PLASTIC
979-025-030R121
NorComp
D-Sub Backshells 25P TOP ENT DIECAST NICKEL PLATED BACKSHELL DB25 DIE CAST ZINC HOOD, DSUB, 45DEG, 4-40 SCREW, 25WAY
974-025-020R121
NorComp
D-Sub Backshells 25P 40 deg entry metalized plas shell BACKSHELL DB25 METAL PLAST 40DEG
994-025-030R121
NorComp
D-Sub Backshells 25P Top Entry Pnl Mt Die Cast Backshell BACKSHELL DB25 STRAIGHT DIE CAST

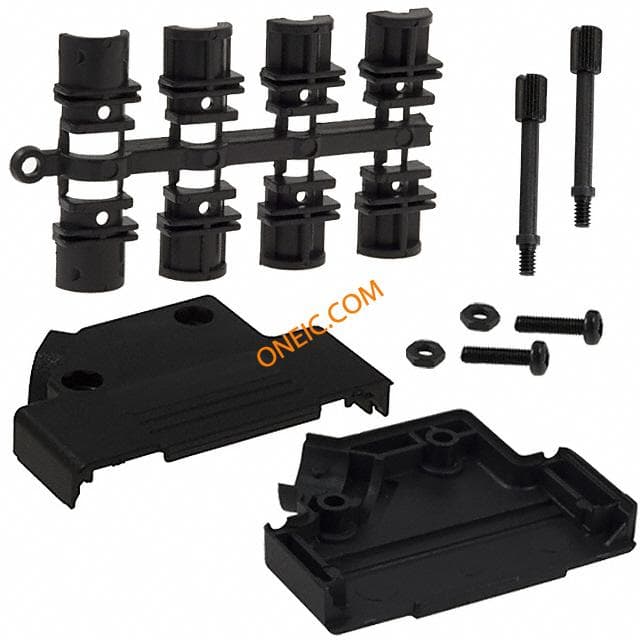

971-025-010R011
NorComp
D-Sub Backshells 25P 45 DEGREE BLACK PLASTIC BACKSHELL DB25 BLK PLASTIC 45DEG
973-025-020R121
NorComp
D-Sub Backshells 25P TOP ENTRY METALIZED PLASTIC BACKSHELL DB25 STR METALIZ PLAST
979-025-020R121
NorComp
D-Sub Backshells 25P Tp entry grommet metalized plas shell BACKSHELL DB25 METALIZED PLASTIC

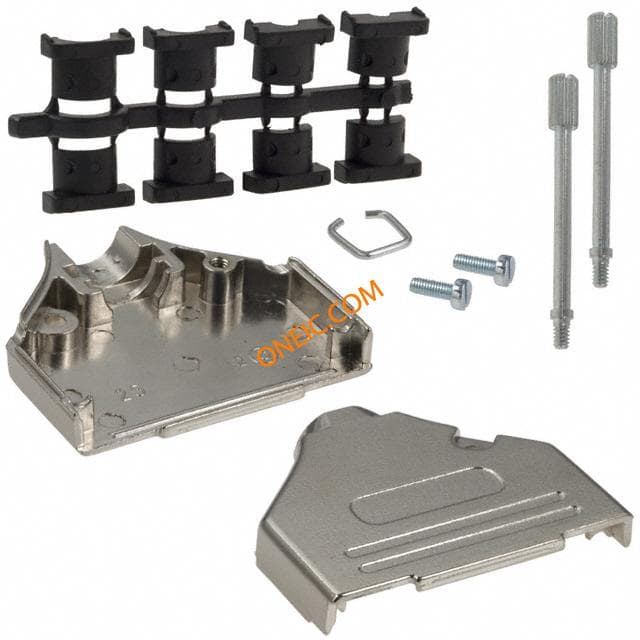

970-025-030R121
