177-015-112-161
| Manufacturer | |

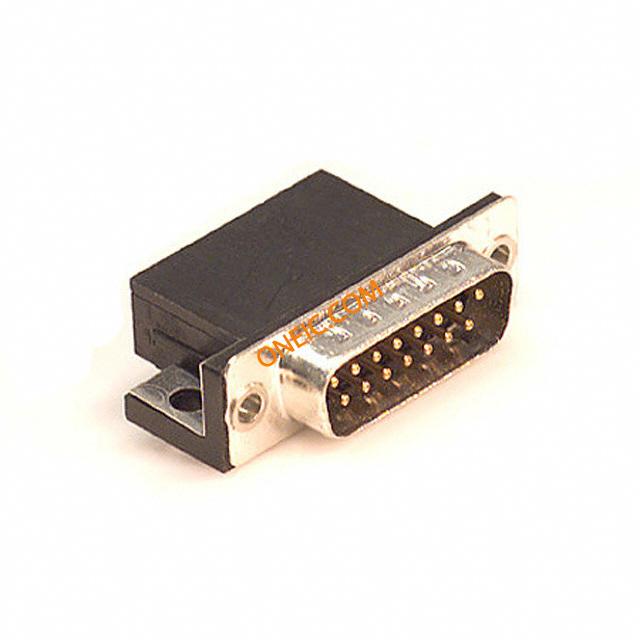

| Description | CONN DB15 MALE .590"RA MET SHELL |
| Category |
Business
| Standard Package | 28 | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Black | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Housing Material | Polyester, Glass Filled |
| Number of Positions | 15 | Shell Material, Finish | Metal, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Features | Ground Strap | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
