NME2415SC
| Manufacturer | |
| Description | ISOLATED 1W SINGLE OUTPUT DC/DC CONVERTERS Module DC-DC 1-OUT 15V 0.066A 1W 4-Pin SIP Tube CONV DC/DC 1W 24VIN 15V SIP SGL CONVERTER 24V INPUT / 15V 67MA OUTPUT DC/DC Converters 1W Single Output 24V to 15V 66mA CONVERTER, DC/DC, SIL, 1W, 15V Murata Power Solutions NME 系列 隔离式直流-直流转换器 , 15V dc输出, 66mA输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 35 | Product | Isolated |
| Unit Pack | 35 | Other Names | 811-1494-5 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
| Factory Pack Quantity | 35 | Standard Package Name | SIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Isolation | Isolated | Efficiency | 80% |
| Power - Max | 1W | Output Power | 1 W |
| Power - Rated | 1W | Converter Type | :Isolated POL |
| Voltage Rating | 15 V | Load Regulation | :10% |
| Voltage - Input | 24 V | Current - Output | 0.066 A |
| Voltage - Supply | :24V | Number of Outputs | 1 |
| Power (Watts) - Max | 1W | Voltage - Isolation | 1kV (1000V) |
| Output Ripple Voltage | :110mV | Voltage - Input (Max) | :10% |
| Voltage - Input (Min) | 15V | Power - Average Forward | :1.45W/cm³ |
| DC Voltage - Input (Max) | :26.4V | Current - Output / Channel | 66 mA |
Mechanical
| Depth | 10mm | Width | 6mm |
| Height | 10 mm | Length | 11.48mm |
| Weight | 0.0013 | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 4SIP |
| Length - Overall | 11.48 | Package Quantity | SIP |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) | Number of Positions | 4 |
| Shell Size - Insert | 10 | ||
Product Info
| Type | Step Down | Series | NME |
| Printed Circuit Board | 4 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | Maximum Temperature Limit | +70°C |
Documents & Media
Similar Parts

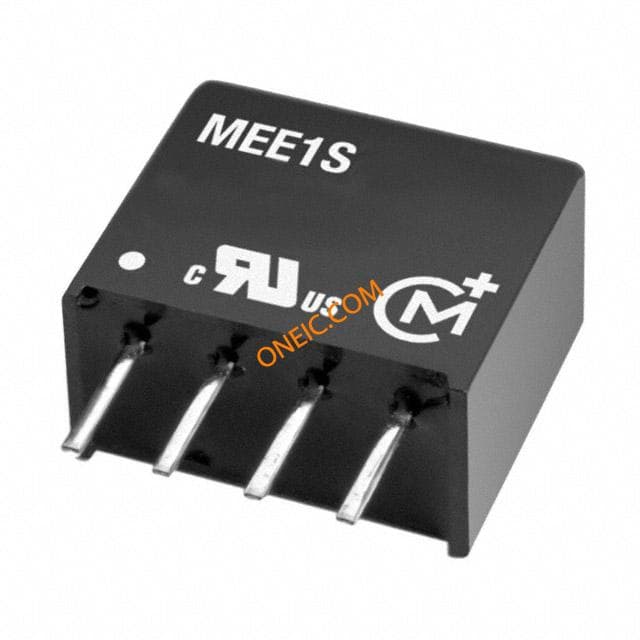

MEE1S2415SC
