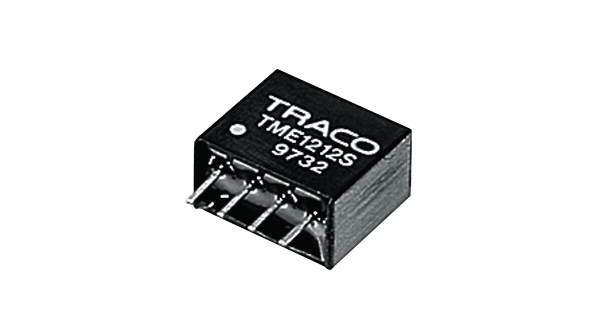

TME 2415S
| Manufacturer | |
| Description | DC/DC converter 24 VDC 15 VDC, TME 2415S, Traco Power |
对参数有疑问？问 AI 助手
Electrical
| Ripple | <150 mVpp | Efficiency | 79 %typ. |
| Power - Rated | 1 | Voltage Rating | 24 VDC |
| Voltage - Supply | unregulated | Current - Output 1 | 65 mA |
| Voltage - Breakdown | 1000 VDC | Minimum Load Required | 10 |
| Voltage - Input (Min) | 15 VDC | Load Side Connections Per Pole | <±10% |
Mechanical
| Size | 11.5 x 6.0 x 10.0 mm | Width | 6.0 |
| Height | 10.0 | Length | 11.5 |
| Package / Case | SIL-4 | ||
Product Info
| Connection Method | THD | ||
Environmental
| Operate Time | >2000000 h @ 25 °C | Operating Temperature | -40...+85 °C |
