90814-0806
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 6 POS 2.54mm Solder ST SMD Tube CONN HEADER 6POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 6w Headers & Wire Housings 1.27MM 6P VERT HDR LO-PRO SMT SN HEADER, PICOFLEX, SMT, 6WAY Straight header SMD 6P, 90814-0806, Molex Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 表面安装 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0908140806 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 6624 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - Picoflex 90814 Series | Voltage Rating | 250 V ac/dc |
| Contact Resistance | 15 | Current Rating (Max) | 1.2A |
| Voltage - Input (Min) | 250VDC|250VAC | ||
Mechanical
| Color | Natural | Depth | 6.9 |
| Pitch | 0.050" (1.27mm) | Height | 5.15 |
| Weight | 0.00032 | Packaging | Tube |
| Termination | Solder | Contact Type | Blade Pin |
| Lead Spacing | :1.27mm | Housing Color | Beige |
| Mounting Type | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon 4/6 |
| Length - Overall | 11.4 | Termination Style | SMD |
| 1st Contact Gender | HDR | Number of Contacts | 6 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 6 |
| Contact Length - Mating | 0.085" (2.15mm) | Contact Finish Thickness | 118.1µin (3.00µm) |
Product Info
| Type | Ribbon Cable Connector | Gender | Male |
| Series | 90814 | Features | Board Guide |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

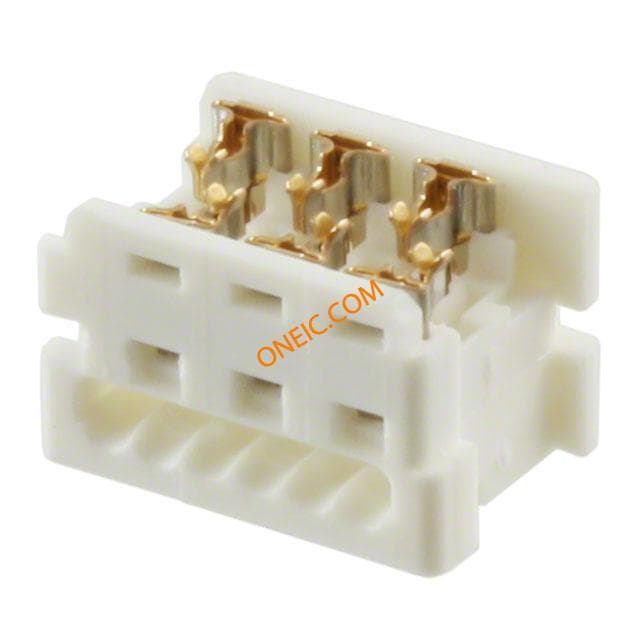

0903273306
molex
Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 6POS 1.27MM GOLD

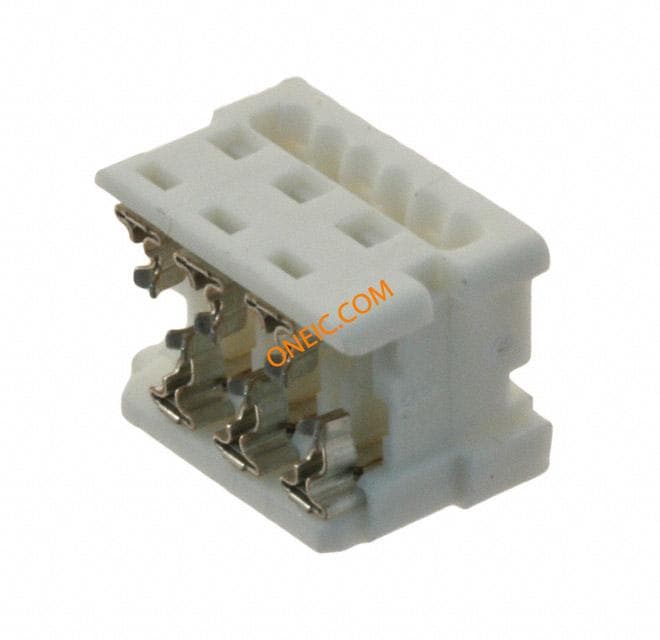

0903270306
