0903270306
| Manufacturer | |
| Description | Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 6POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 6; tinned; 1.2A; 250V |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage - Max | 250V | Current Rating (Max) | 1.2/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 7 mm |
| Pitch | 2.54 mm | Height | 6.4 mm |
| Weight | 0.55 g | Packaging | Bag |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Pitch - Post | 1.27mm | Housing Color | White |
| Mounting Type | Cable Mount | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 10.13 mm |
| Package Quantity | 700 | Cable Termination | IDC |
| Connector - Cable | plug | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Finish Thickness | 78.7µin (2.00µm) |
| Contact Material - Plating | tinned | 1st Connector Mounting Feature | 2x3 |
Product Info
| Spg | 700 | Type | IDC Connector |
| Gender | RCP | Features | Feed Through |
| Adapter Series | PicoFlex | Number of Units | 1 |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS
0903250006
molex
Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 6POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 6; tinned; 1.2A; 250V
76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT
90814-0806
molex
Conn Ribbon Cable Connector HDR 6 POS 2.54mm Solder ST SMD Tube CONN HEADER 6POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 6w Headers & Wire Housings 1.27MM 6P VERT HDR LO-PRO SMT SN HEADER, PICOFLEX, SMT, 6WAY Straight header SMD 6P, 90814-0806, Molex Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 表面安装
0908140806
Molex
Conn Ribbon Cable Connector HDR 6 POS 2.54mm Solder ST SMD Tube CONN HEADER 6POS 1.27MM SMD TIN Connector: wire-board; PicoFlex; socket; male; 6; tinned; 1.2A; 250V
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584
90325-3006
molex
Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 6POS 1.27MM GOLD Header 1.27mm, RA, low pro,6w,pcb peg Headers & Wire Housings 1.27MM 6P RA HDR LO-PRO W/PCB PEGS Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 通孔
90325-9006
Molex Connector Corporation
CONN HEADER 6POS 1.27MM TIN T/H Header 1.27mm, vert, low pro, 6w Headers & Wire Housings PICOFLEX 6P HDR SN R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Tube Molex PICOFLEX 系列 6路 1.27mm节距 公 IDC 连接器 , 通孔
90325-7006
Molex Connector Corporation
CONN HEADER 6POS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 6P HDR AU R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 6 POS 1.27mm Solder ST Thru-Hole Tube

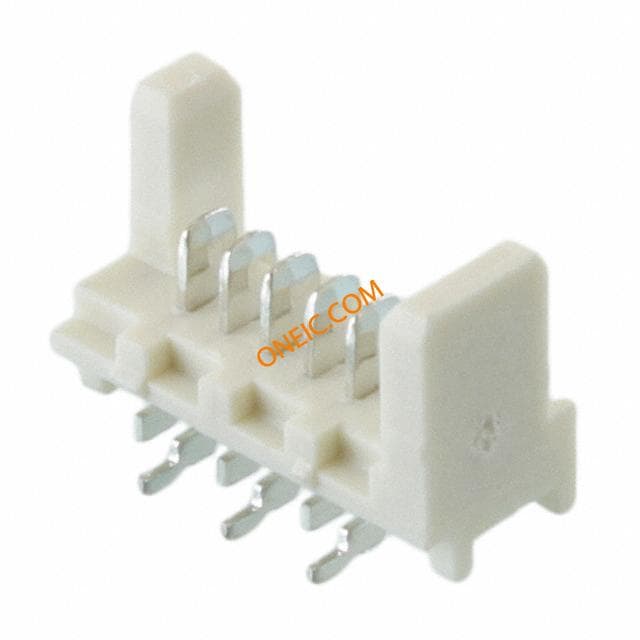

0934050506
