90327-0326
| Manufacturer | |
| Description | Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 26POS 1.27MM TIN 26 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT SN CONNECTOR, PICOFLEX, 26WAY Female connector 26P, 90327-0326, Molex Molex PICOFLEX 系列 2行 26路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903270326 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Picoflex 90327 Series | Voltage Rating | 250 V |
| Contact Resistance | :10mohm | Voltage - Breakdown | :750V |
| Current Rating (Max) | 1.2A | Contact Rating (Current) | :1.2A |
Mechanical
| Color | White | Pitch | 2.54 mm |
| Width | :31.75mm | Weight | 0.002 |
| Material | :Polyester | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | PET |
| Cable Termination | IDC | Termination Style | IDC |
| Color - Connectors | :White | Number of Contacts | 26 |
| Contact Termination | :IDC / IDT | Number of Positions | 26 |
| Contact Finish Thickness | 78.7µin (2.00µm) | Wire Gauge or Range - AWG | :28AWG |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | 90327 | Features | Feed Through |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | +105°C | ||
Similar Parts

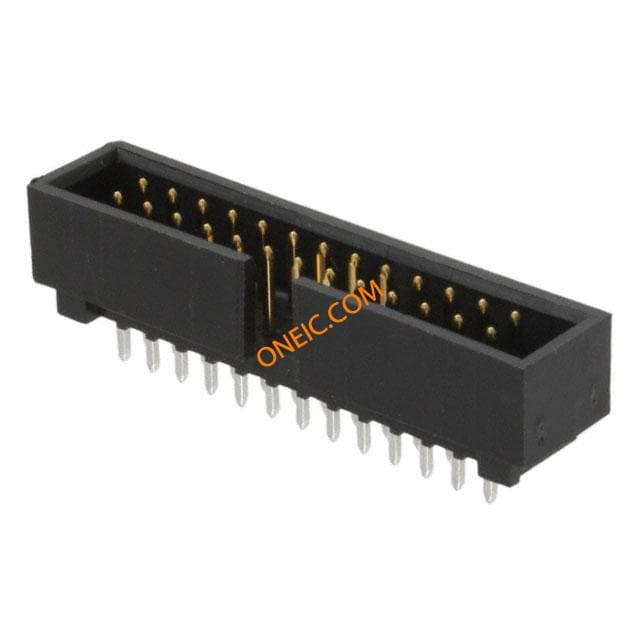

0702462601
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 26POS .100 VERT GOLD
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR

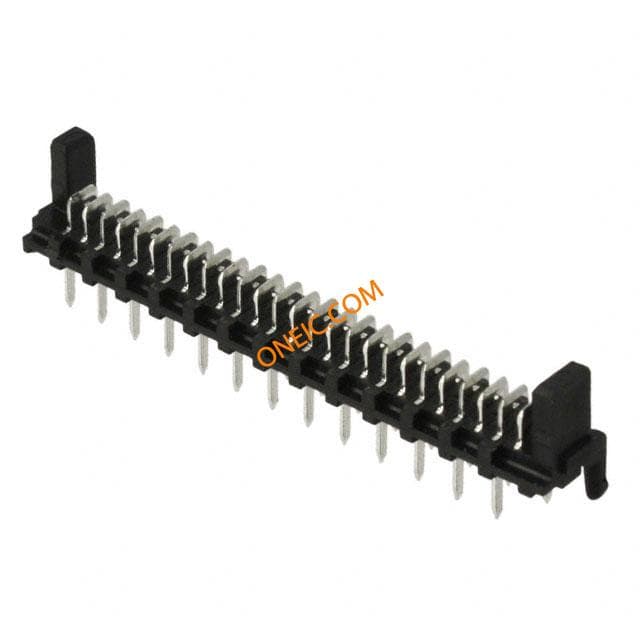

0903250026
molex
Conn Ribbon Cable Connector HDR 26 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 26POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 26; tinned; 1.2A sale
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

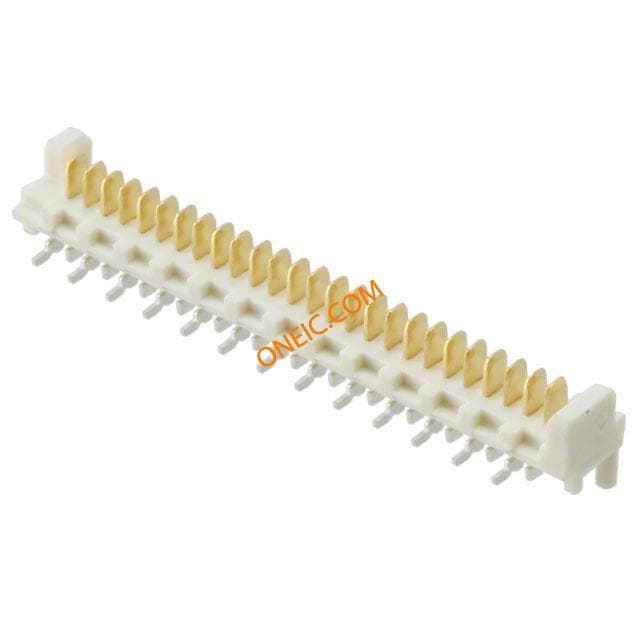

0908143826
molex
Conn Ribbon Cable Connector HDR 26 POS 2.54mm Solder ST SMD Tube CONN HEADER 26PS 1.27MM SMD GOLD
70247-2651
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100 R/A 15AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .38AuLF 26Ckt

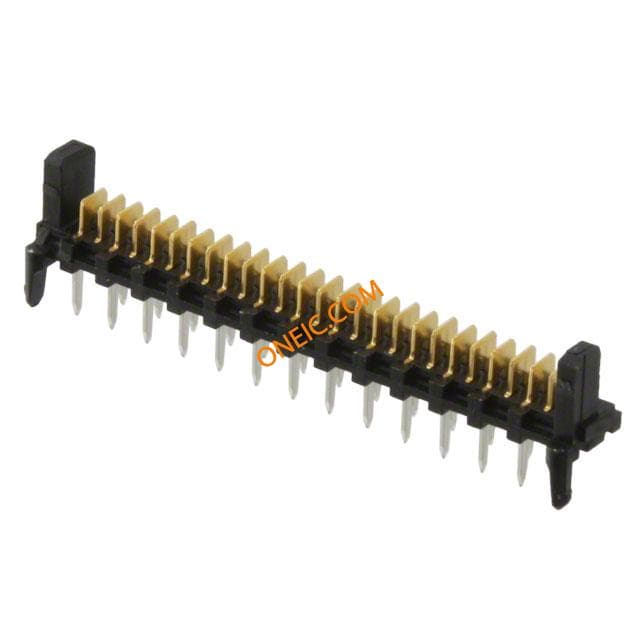

90325-7026
molex
Conn Ribbon Cable Connector HDR 26 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 26PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 26P HDR AU R/A LP W/PCB PEGS

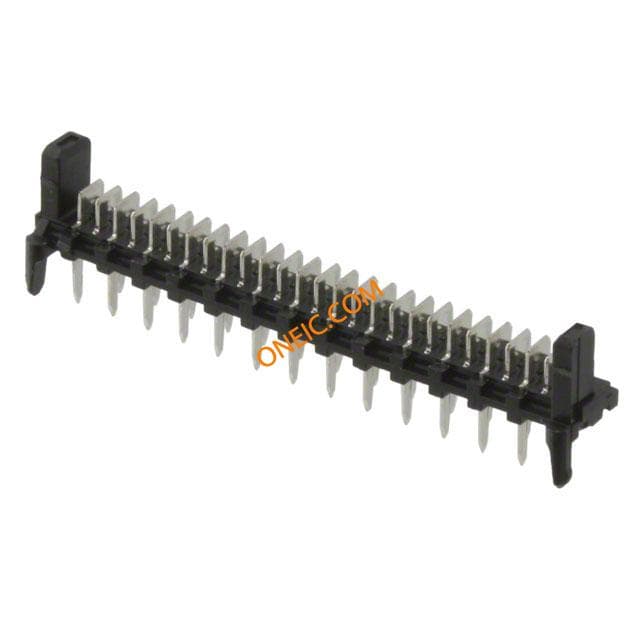

90325-9026
molex
Conn Ribbon Cable Connector HDR 26 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 26POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 26P HDR SN R/A LP W/PCB PEGS
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
62100-6000
molex
PICOFLEX EXTRACTION TOOL Hand Tools PICOFLEX EXTRACTION TOOL Punches & Dies PICOFLEX EXTRACTION TOOL TOOL, PICOFLEX, EXTRACTION Dismantle tool, 62100-6000, Molex
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584
70247-2652
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 26Ckt
90814-0826
Molex Connector Corporation
CONN HEADER 26POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 26w Headers & Wire Housings 1.27MM 26P VERT HDR LO-PRO SMT SN Conn Ribbon Cable Connector HDR 26 POS 2.54mm Solder ST SMD Tube HEADER, PICOFLEX, SMT, 26WAY Molex PICOFLEX 系列 26路 1.27mm节距 公 IDC 连接器 , 表面安装

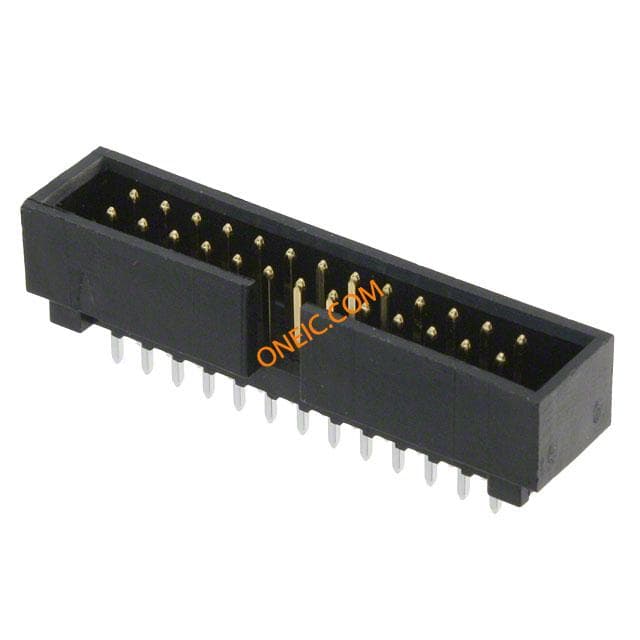

0702462602
