0702462601
| Manufacturer | |
| Description | Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 26POS .100 VERT GOLD |
| Category |
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 15 mohm | Current Rating (Max) | 2.5/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 8.89 mm |
| Pitch | 0.100" (2.54mm) | Height | 9.27 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Housing Material | Polybutylene Terepht | Length - Overall | 40.64 mm |
| Number of Contacts | 2 | Number of Positions | 26 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55C to 120C | ||
Documents & Media
Similar Parts
15-44-3213
Molex
Headers & Wire Housings C-GRID PCB CONNECTOR CONN RECEPT 26POS .100 VERT PCB
39-51-2263
Molex
Board to Board & Mezzanine Connectors QF50 DUAL RECPT 26 vertical CONN RCPT 26POS 2.54MM IDC W/POL
39-51-2260
Molex
Headers & Wire Housings Obsolete CONN RCPT 26POS 2.54MM IDC W/POL
15-44-4513
Molex
Headers & Wire Housings Obsolete CONN RECEPT 26POS .100 VERT PCB
15-45-1313
Molex
Headers & Wire Housings Obsolete CONN RECEPT 26POS .100 VERT PCB
90327-0326
molex
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 26POS 1.27MM TIN 26 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT SN CONNECTOR, PICOFLEX, 26WAY Female connector 26P, 90327-0326, Molex Molex PICOFLEX 系列 2行 26路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90327-3326
Molex Connector Corporation
CONN RECPT IDT 26POS 1.27MM GOLD 26 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT AU Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, 26WAY Molex PICOFLEX 系列 2行 26路 1.27mm节距 直角 电缆安装 母 IDC 连接器

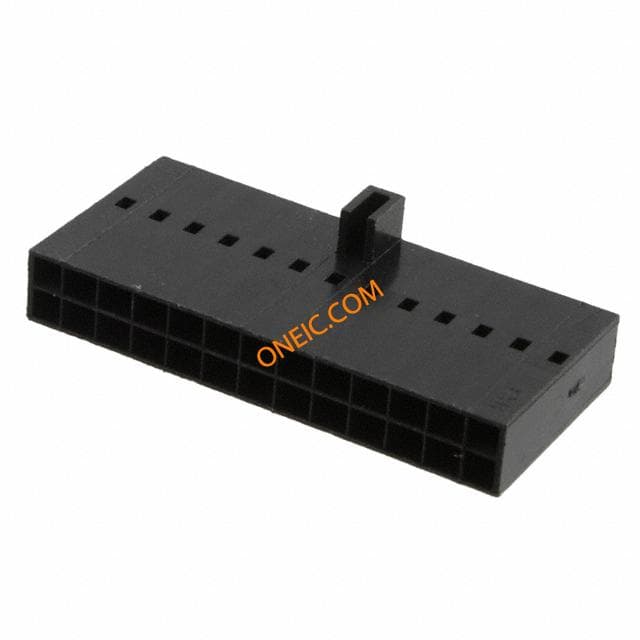

22-55-2262
