76650-0151
| Manufacturer | |
| Description | Deluxe Splashproof Solution Kit KIT CONN MULTI SPLASH PROOF I/O Connectors SPLASH PROOF APP KIT Kit Description:Includes USB Type A and B, RJ-45, MX150L, MX150, Mini-Splashproof Product Families. Pitches range: 2.5mm (.098)" - 5.84mm (.230)"Kit Category:Wire to Wire and Wire to BoardSolution:SealedPackaging:Tackle Box: 11" by 7.25"Num. Pieces:234 DELUXE SPLASHPROOF APPLICATION KIT |
| Category |
Business
| Product | Kits | Standard Pack | 1 |
| Part # Aliases | 0766500151 | Product Category | I/O Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 25, 30, 150, 250, 600 V | Current Rating (Max) | 1 A , 1.5 A , 18 A , 22 A |
Mechanical
| Pitch | 2.5 mm, 3.5 mm, 5.84 mm | Packaging | Plastic Box with Bin Guide |
| Wire Gauge | 22-20, 22-18, 20-18 | Connector Type | Plugs and Receptacles |
| Contact Finish | Gold | Mounting Style | Panel , PCB |
| Termination Style | Crimp | ||
Product Info
| Gender | Male / Female | Series | 76650 |
| Values | 234 pcs - Assorted 2 ~ 4, 6 Plug, Receptacle, USB Assembly, 22 ~ 18 AWG Crimp Terminals | Kit Type | Contact, Plug, Receptacle, USB |
| Manufacturer | 76650 | Configuration | Wire-to-Board, Wire-to-Wire |
| Number of Circuits | 2, 3, 4, 6 | ||
Documents & Media
Similar Parts
50147-8100
Molex
Headers & Wire Housings LOOSE TERMINALS Contact PIN Crimp ST Cable Mount Bag CRIMP PIN, MIZU-P25, 125V, 22-20 AWG Molex Mizu-P25 系列 公 压接接线端子, 压接, 镀锡触点
19418-0018
Molex
Automotive Connectors RECPT 4P 22-18 AWG dual row
19418-0016
Molex
Automotive Connectors RECPT 2P 22-18 AWG single row CONN RECEPT 2POS 18-22AWG SINGLE

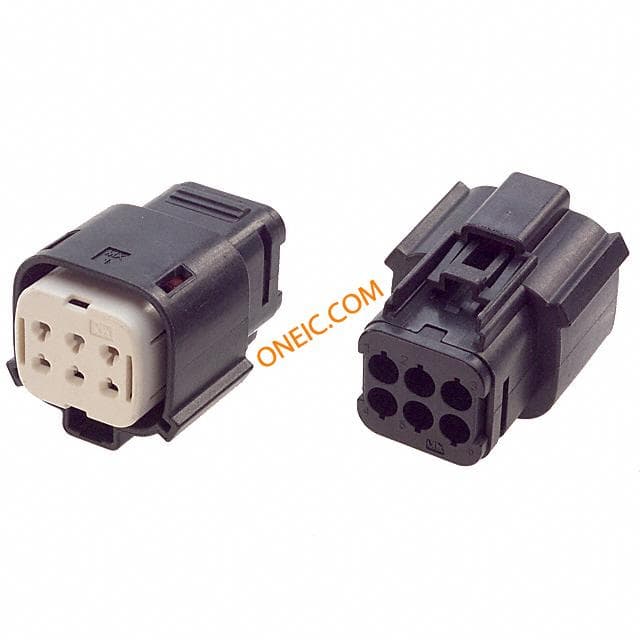

19418-0020
Molex
Automotive Connectors RECPT 6P 22-18 AWG dual row CONN RECEPT 6POS 18-22AWG DUAL

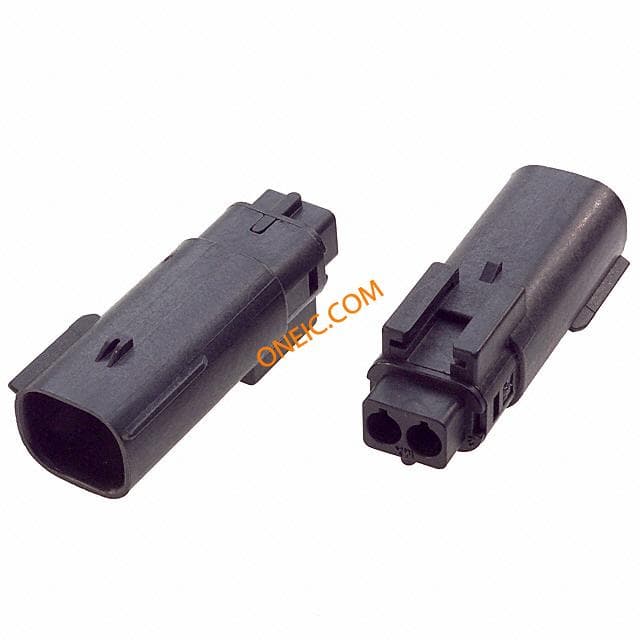

19419-0008
Molex
Automotive Connectors PLUG 2P 22-18 AWG single row CONN PLUG 2POS 18-22AWG SINGLE 2 way 18-22AWG IP67 plug connector 2 WAY PLUG ASSY 22-18 AWG Cable plug Pitch5.84 mm Poles 2 MX150L™, 19419-0008, Molex Molex MX150L 系列 5.84mm 节距 2 路 直 公 压接连接器外壳

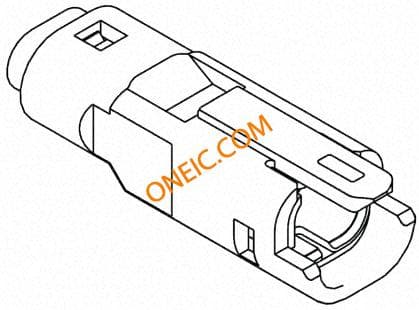

52266-0211
molex
Conn Housing PL 2 POS 2.5mm Crimp ST Tray 2w WTW splashproof plug housing 2.5mm Headers & Wire Housings 2.5MM WIRE PLUG Mizu-P25™ 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 2 Circuits PLUG, 125V, BLACK, 2WAY .089 pitch splash proof wire to wire housing 2 circuit Plug; Connector: wire-wire; Mizu-P25; male; PIN:2; w/o terminals Molex Mizu-P25 系列 2.5mm 节距 2 路 直 公 压接连接器外壳

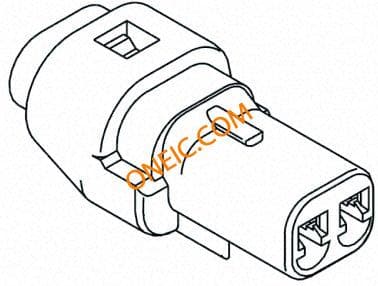

52213-0211
Molex Connector Corporation
CONN RCPT 2POS 2.5MM BLACK 2w WTW splashproof recept housing 2.5mm Headers & Wire Housings 2.50MM WIRE RECPT 2P splash proof Mizu-P25™ 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing, 2 Circuits PLUG AND SOCKET CONNECTOR HOUSING RECEPTACLE, 125V, BLACK, 2WAY Plug; Connector: wire-wire; Mizu-P25; female; PIN:2; w/o terminals Molex Mizu-P25 系列 2.5mm 节距 2 路 直 母 压接连接器外壳
