19418-0020
| Manufacturer | |
| Description | Automotive Connectors RECPT 6P 22-18 AWG dual row CONN RECEPT 6POS 18-22AWG DUAL |
| Category |
Business
| Product | Housings | Tradename | MX150L |
| Part # Aliases | 0194180020 | Product Category | Automotive Connectors |
| Standard Package | 10 | Factory Pack Quantity | 240 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 18 A | ||
Mechanical
| Pitch | 0.230" (5.84mm) | Packaging | Bulk |
| Row Spacing | 0.236" (6.00mm) | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Holder | Mounting Style | Wire |
| Number of Rows | 2 | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 6 |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 19418 | Features | IP67 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
0194290044
Molex, LLC
. 0194290044 - 6 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!

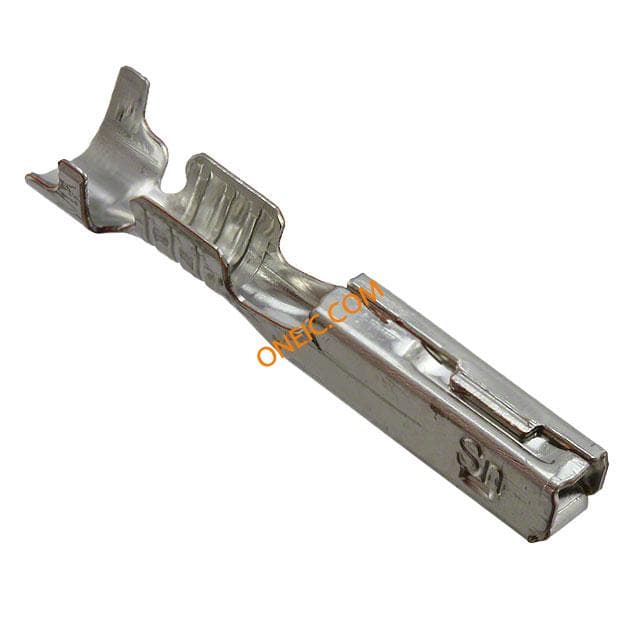

0194200002
Molex, LLC
. 0194200002 - Socket Contact Tin 18-22 AWG Crimp from Molex. from now!

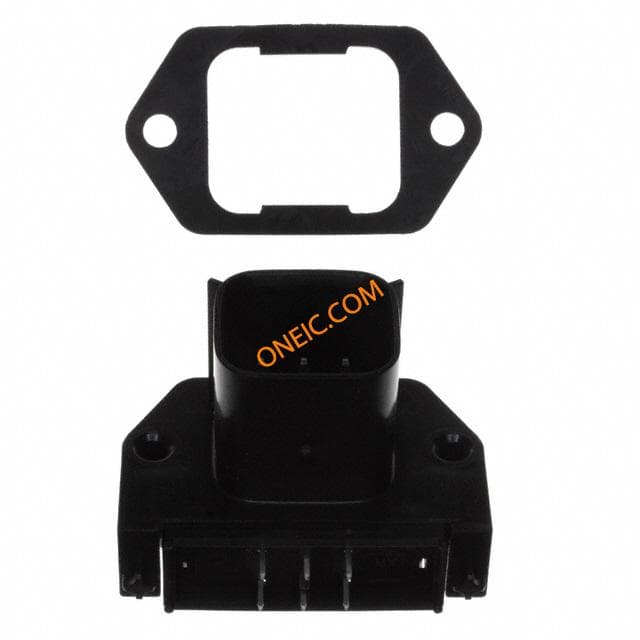

19427-0018
Molex
Automotive Connectors 6 Ckt R/A Header w/out Mounting Holes CONN HEADER 6POS RIGHT ANGLE TIN
19420-0010
Molex
Automotive Connectors SOCKET 22-18 AWG CONN TERM FEMALE 18-22AWG TIN 18-22AWG female terminal FEM TERMINAL TIN PLTD 22-18 L.P. MX150L Crimp contact Female 22...18 AWG, 19420-0010, Molex Molex MX150L 系列 母 压接接线端子, 压接, 镀锡镀镍触点

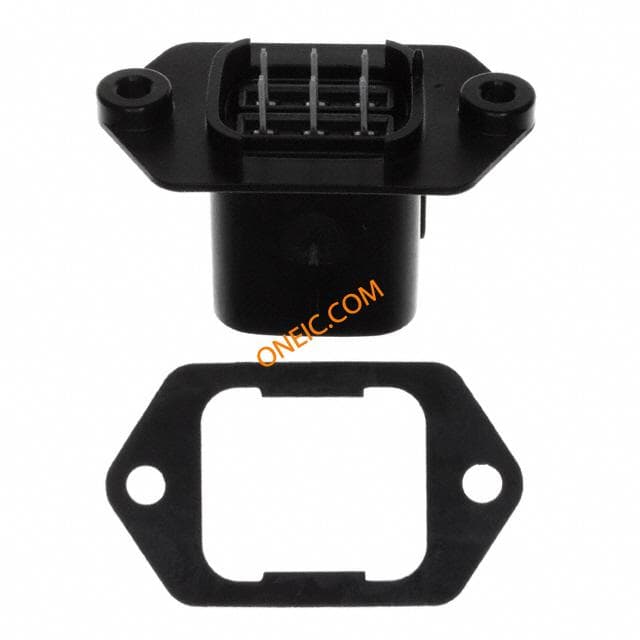

19428-0012
Molex
Automotive Connectors 6 Ckt Vert. Header low profile CONN HEADER 6POS VERTIAL TIN Molex 19428 Series 5.84mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 18A Molex MX150L 系列 5.84mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 18A , 通孔
19419-0012
Molex
Automotive Connectors PLUG 6P 22-18 AWG dual row CONN PLUG 6POS 18-22AWG DUAL 6 way 18-22AWG IP67 plug connector 6 WAY PLUG ASSY 22-18 AWG Cable plug Pitch5.84 mm Poles 6 MX150L™, 19419-0012, Molex Molex MX150L 系列 2 行 5.84mm 节距 6 路 直 公 压接连接器外壳
76650-0152
Molex
Automotive Connectors MX150L PANEL MNT KIT KIT CONN MX150L PANEL MNT MX150L CONNECTOR KIT DUAL ROW PANEL MNTSEALED PLUG & RECEPT, IP-67
19419-0011
Molex
Automotive Connectors PLUG 6P 16-14 AWG dual row CONN PLUG 6POS 14-16AWG DUAL 6 way 14-16AWG IP67 plug connector 6 WAY PLUG ASSY 16-14 SCS Cable plug Pitch5.84 mm Poles 6 MX150L™, 19419-0011, Molex Molex MX150L 系列 2 行 5.84mm 节距 6 路 直 公 压接连接器外壳
76650-0151
molex
Deluxe Splashproof Solution Kit KIT CONN MULTI SPLASH PROOF I/O Connectors SPLASH PROOF APP KIT Kit Description:Includes USB Type A and B, RJ-45, MX150L, MX150, Mini-Splashproof Product Families. Pitches range: 2.5mm (.098)" - 5.84mm (.230)"Kit Category:Wire to Wire and Wire to BoardSolution:SealedPackaging:Tackle Box: 11" by 7.25"Num. Pieces:234 DELUXE SPLASHPROOF APPLICATION KIT
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!
0194350614
Molex
Conn Housing PL 6 POS 5.84mm Crimp ST Bag 6POS PLUG PNL MNT 22-18 NO GSKT
0194350612
Molex, LLC
. 0194350612 - 6 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!

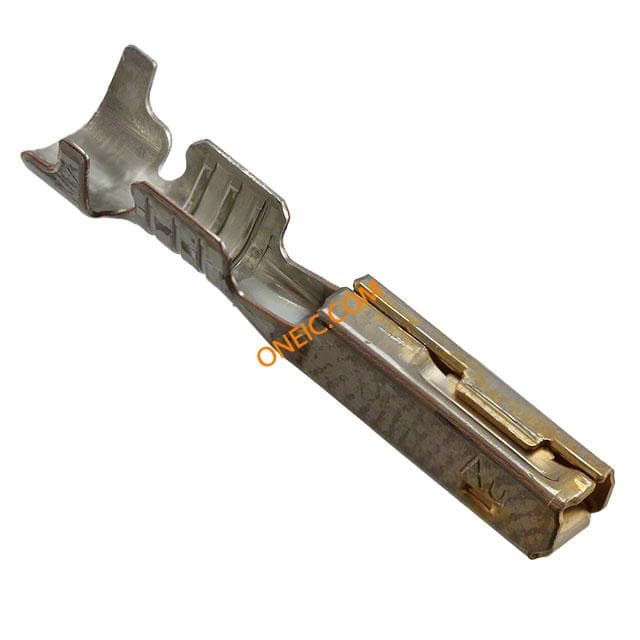

0194200004
