70553-0024
| Manufacturer | |
| Description | Conn Shrouded Header HDR 25 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 25POS .100 R/A GOLD Headers & Wire Housings 2.54MM HDR 25 CKT Right Angle |
| Category |
Business
| Tradename | SL | Part # Aliases | 0705530024 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 320 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 1 | Housing Material | Thermoplastic |
| Termination Style | Through Hole | Number of Contacts | 25 |
| Number of Positions | 25 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Shrouded | Series | 70553 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
0050579225
Molex
Conn Housing RCP 25 POS 2.54mm Crimp ST Bag CONN HSG 25POS .100 SINGLE VER C
15-47-4253
molex
Conn IDC Connector F 25 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 25POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt G Fem 15 SAu 25Ckt
15-38-8250
molex
Conn IDC Connector F 25 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 25POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 25CKT TIN
14-56-2251
molex
Conn IDC Connector F 25 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 25POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Conn Opt A 15'SAu 25Ckt

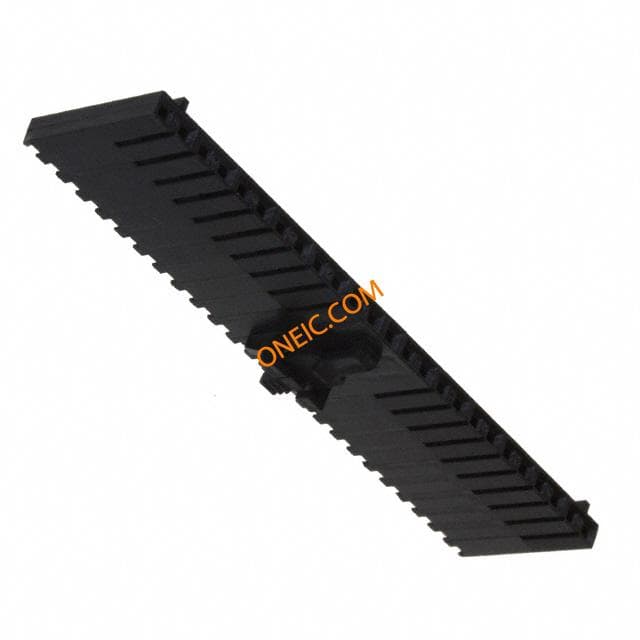

50-57-9425
