14-56-2251

Manufacturer	Molex, LLC
Description	Conn IDC Connector F 25 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 25POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Conn Opt A 15'SAu 25Ckt
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	C-Grid, SL	Part # Aliases	0014562251 70400-0549
Product Category	Headers & Wire Housings	Standard Package	Rail / Tube
Factory Pack Quantity	240

Compliance

RoHS

Lead free / RoHS Compliant

Electrical

Voltage Rating

250 V

Current Rating (Max)

3 A

Mechanical

Color	Black	Pitch	2.54 mm
Packaging	Tube	Wire Type	Discrete or Ribbon Cable
Wire Gauge	24 AWG	Termination	IDT
Contact Type	Female Socket	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Contact Finish	Gold Over Nickel
Mounting Style	Cable	Number of Rows	1
Contact Material	Phosphor Bronze	Housing Material	Polyester Alloy
Cable Termination	IDC	Termination Style	IDC
1st Contact Gender	Socket (Female)	Number of Contacts	25
Number of Positions	25	Contact Finish Thickness	15µin (0.38µm)

Product Info

Type	IDC Connector	Gender	F
Series	70400	Features	Closed End
Product Type	Receptacles / Sockets - Housings

Documents & Media

PDF Document

Single Row (SL) Prod Spec

Similar Parts

0701070094

molex

Conn Housing F 25 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 25POS

$6.4831

Details

0022284251

molex

Conn Unshrouded Header HDR 25 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 25POS .100 VERT TIN

$2.6527

Details

0022284254

molex

Conn Unshrouded Header HDR 25 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 25POS .100 VERT GOLD

$3.2028

Details

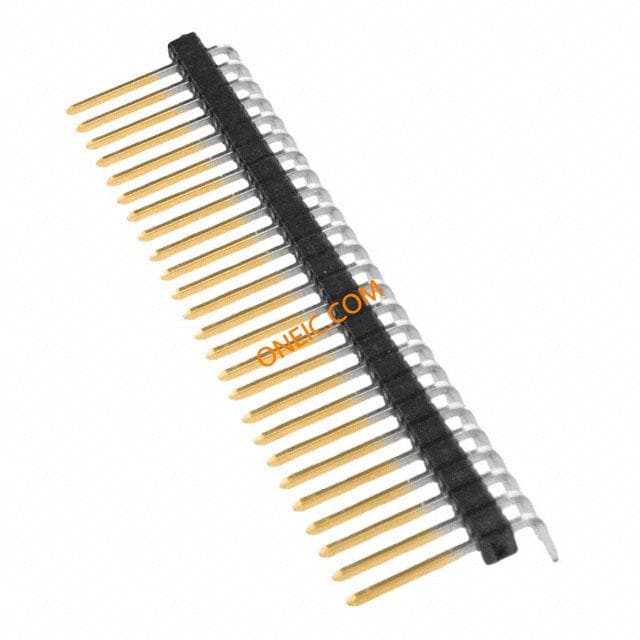

0022288253

molex

Conn Unshrouded Header HDR 25 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 25POS .100 R/A GOLD

$4.7042

Details

0022288251

molex

Conn Unshrouded Header HDR 25 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 25POS .100 R/A TIN

$3.7808

Details

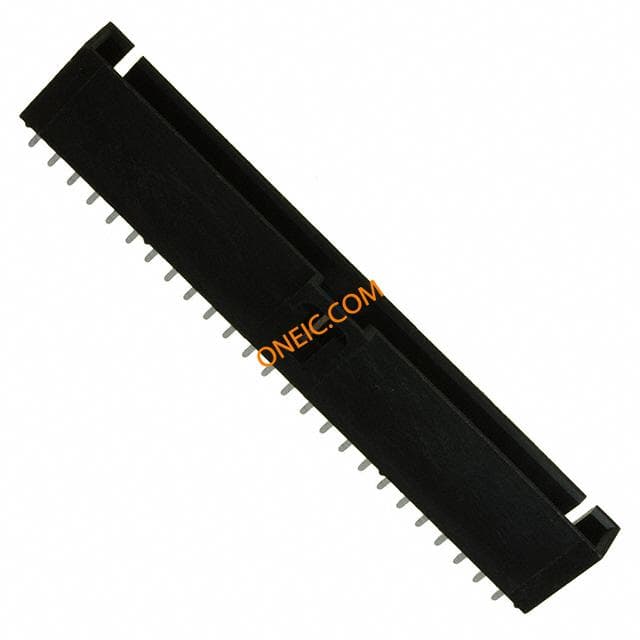

0705430024

molex

Conn Shrouded Header HDR 25 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 25POS .100 VERT GOLD

$50.5920

Details

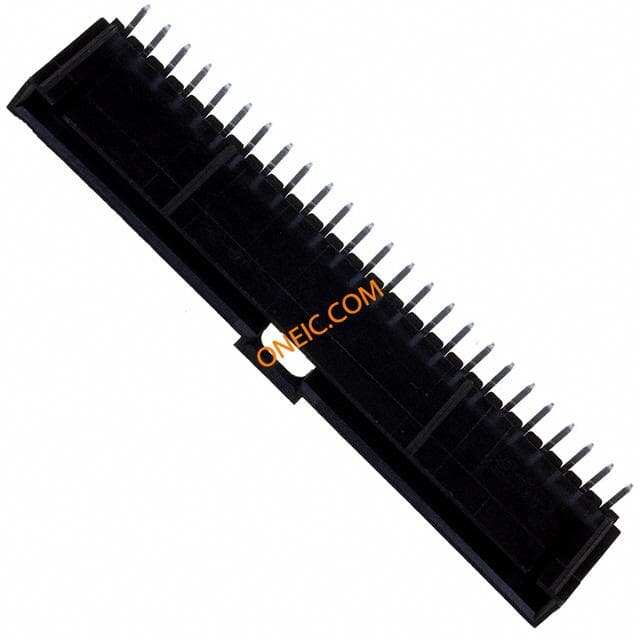

70553-0024
