70246-1402
| Manufacturer | |
| Description | Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 14POS .100 VERT GOLD Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .76AuLF 14Ckt |
| Category |
Business
| Tradename | C-Grid | Other Names | 0702461402 |
| Part # Aliases | 0702461402 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 960 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Termination Style | Through Hole | Number of Contacts | 14 |
| Number of Positions | 14 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 70246 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
15-44-3207
Molex
Headers & Wire Housings 14P DUAL ROW PCB VRT CONN RECEPT 14POS .100 VERT PCB
15-45-1307
Molex
Headers & Wire Housings Obsolete CONN RECEPT 14POS .100 VERT PCB
15-44-4507
Molex
Headers & Wire Housings 14P DUAL ROW PCB VRT CONN RECEPT 14POS .100 VERT PCB
0015453514
Molex
Conn Socket Strip RCP 14 POS 2.54mm Solder ST SMD Tray CONN RCPT 14POS VERT DL SMD
90327-0314
Molex Connector Corporation
CONN RECEPT IDT 14POS 1.27MM TIN 14 way IDT housing,1.27mm pitch Headers & Wire Housings PICOFLEX 14P HSG LOPRO IDT SN Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 14WAY .050 picoflex pf-50 idt receptacle, 14 circuits Female connector 14P, 90327-0314, Molex Molex PICOFLEX 系列 2行 14路 1.27mm节距 直角 电缆安装 母 IDC 连接器
90327-3314
Molex Connector Corporation
CONN RECPT IDT 14POS 1.27MM GOLD 14 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 14P HSG LOPRO IDT AU Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Bag RECEPTACLE, 14POS, 2ROW, 1.27MM Molex PICOFLEX 系列 2行 14路 1.27mm节距 直角 电缆安装 母 IDC 连接器

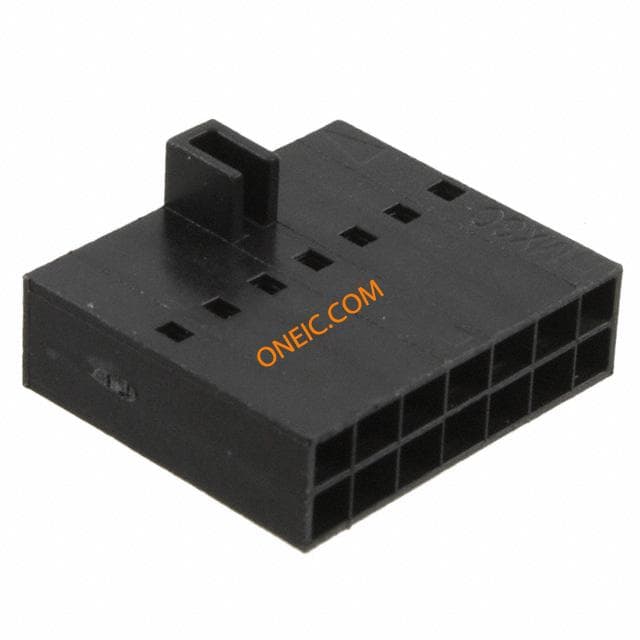

22-55-2142
