90327-3314
| Manufacturer | |
| Description | CONN RECPT IDT 14POS 1.27MM GOLD 14 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 14P HSG LOPRO IDT AU Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Bag RECEPTACLE, 14POS, 2ROW, 1.27MM Molex PICOFLEX 系列 2行 14路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903273314 90327-3314-PB |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - Picoflex 90327 Series | Voltage Rating | 250 V |
| Current Rating (Max) | 1.2A | ||
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Weight | 0.02 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Palladium-Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | PET |
| Cable Termination | IDC | Termination Style | IDC |
| Number of Contacts | 14 | Contact Termination | :IDC |
| Number of Positions | 14 | Contact Finish Thickness | 24µin (0.60µm) |
Product Info
| Gender | Female | Series | 90327 |
| Features | Feed Through | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0903250014
molex
Conn Ribbon Cable Connector HDR 14 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 14POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 14; tinned; 1.2A sale
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS
90814-0814
molex
Conn Ribbon Cable Connector HDR 14 POS 2.54mm Solder ST SMD Tube CONN HEADER 14POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 14w Headers & Wire Housings 1.27MM 14P VERT HDR LO-PRO SMT SN HEADER, PICOFLEX, SMT, 14WAY Straight header SMD 14P, 90814-0814, Molex Molex PICOFLEX 系列 14路 1.27mm节距 公 IDC 连接器 , 表面安装
70246-1402
molex
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 14POS .100 VERT GOLD Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .76AuLF 14Ckt
90814-3814
molex
Conn Ribbon Cable Connector HDR 14 POS 2.54mm Solder ST SMD Tube CONN HEADER 14PS 1.27MM SMD GOLD Headers & Wire Housings PF-50 SMT HDR 14P PICOFLEX
70247-1452
molex
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 14POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 14Ckt
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584
90325-9014
Molex Connector Corporation
CONN HEADER 14POS 1.27MM TIN T/H Header 1.27mm pF-50, RA, low prof, 14w, Headers & Wire Housings PICOFLEX 14P HDR SN R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 14 POS 1.27mm Solder ST Thru-Hole Tube HEADER, 1.27MM, 14WAY Molex PICOFLEX 系列 14路 1.27mm节距 公 IDC 连接器 , 通孔
90325-7014
Molex Connector Corporation
CONN HEADER 14PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 14P HDR AU R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 14 POS 1.27mm Solder ST Thru-Hole Tube

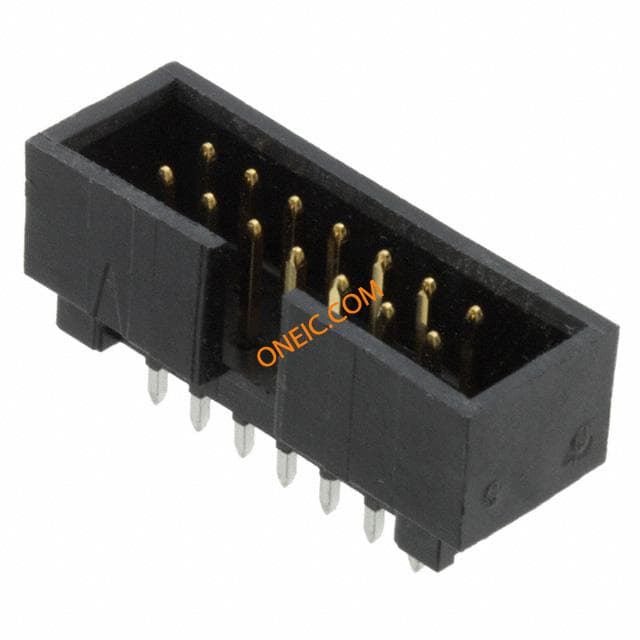

70246-1401
