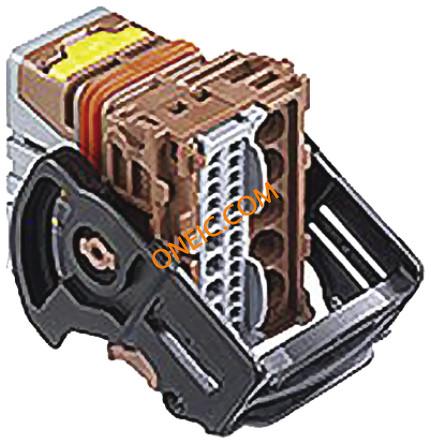

64318-3011
| Manufacturer | |
| Description | Conn Housing F 28 POS 2.54mm Crimp ST Cable Mount Carton CMC power connector 28 way black coding Automotive Connectors 28P PWR CMC RCPT R WIRE OUTPT,BLK CD RECEPTACLE, CMC, BLACK, 28WAY Molex CMC 系列 3行 28路 电缆安装 黑色 母 连接器 , 压接端接 |
| Category |
Business
| Product | Connectors | Tradename | CMC |
| Part # Aliases | 0643183011 | Product Category | Automotive Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 372 |
Compliance
| RoHS | Compliant | Tariff No | 85389099 |
Electrical
| Current Rating (Max) | 21A | ||
Mechanical
| Color | Black | Depth | 40.8mm |
| Pitch | 2.54 mm | Width | 42mm |
| Height | 40.1mm | Weight | 0.03529 |
| Material | Polyester | Termination | Crimp |
| Mounting Type | Straight | Number of Rows | 3 |
| Locking Feature | :Latch | Material - Body | :Glass Filled PBT (Polybutylene Terephthalate) |
| Housing Material | PET | Color - Connectors | Black |
| Number of Contacts | 28 | Number of Positions | 28 |
Product Info
| Type | Housing | Gender | F |
| Series | 64318 | RF Family/Standard | Crimp Housings |
| For Use With/Related Products | :CMC CP 64322, 64323, 64324 Series Female Terminals | ||
Environmental
| Operating Temperature | +125°C | ||
