47745-0100
| Manufacturer | |
| Description | Molex 28 Way 4 Row, Solder Termination, 21A Automotive Connectors CMC 28W R/A HDR CODING BLACK Conn CMC PIN 28 POS Solder RA Thru-Hole Carton HEADER, R/A, CMC, BLACK, 28WAY Molex CMC 系列 4行 28路 黑色 公 管座 , 焊接端接 |
| Category |
Business
| Product | Headers | Tradename | CMC |
| Part # Aliases | 0477450100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85389099 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current Rating (Max) | 21A | ||
Mechanical
| Color | Black | Pitch | 2.5 mm, 3.5 mm, 3.7 mm |
| Length | 28 mm | Weight | 0.035 |
| Termination | Solder | Mounting Type | Right |
| Contact Finish | Tin | Mounting Style | Wire to Board |
| Number of Rows | 4 | Contact Material | Brass |
| Housing Material | Resin | Termination Style | Through Hole |
| 1st Contact Gender | :Pin | Color - Connectors | Black |
| Number of Contacts | 28 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 28 | Shell Size - Insert | :- |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Wire to Board | Gender | Male |
| Series | 47745 | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
64323-1039
molex
Contact SKT Crimp ST Cable Mount Reel Automotive Connectors SN PLTD 1-2MMF/M TRM Reel of 27500 CONTACT, CMC, SOCKET, 16-14 AWG, CRIMP CRIMP, RECEPTACLE, 16-14AWG, REEL Molex CMC, CP 系列 母 压接接线端子, 压接, 镀锡触点
64325-1010
molex
Connector Accessories CMC Blind Plug Carton Automotive Connectors CMC BLIND PLUG TERM CAVITY .635MM CMC Blind Plug for cavity 0.635mm BLIND PLUG, TERMINAL CAVITY & CMC CONN Molex 64325 系列 CMC 无孔插头, 使用于CMC 连接器 64318、CMC 连接器 64319、CMC 连接器 64320、CMC 连接器 64321、CMC 连接器 64326
64320-1301
molex
Conn Housing 48 POS Crimp ST Carton CMC Wire Cap for 48 and 28 way Automotive Connectors CMC WIRE CAP FOR 28P AND 48P CONNECTOR BACKSHELL, POLYAMIDE WIRE CAP, FOR CMC 48WAY RECEPTACLE WIRE CAP, FOR CMC HEADER Molex 64320 系列 CMC 电线保护罩, 使用于28 路插座，48 路插座

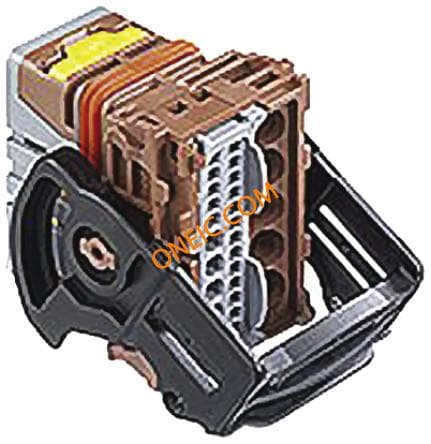

64318-3011
