43879-0025
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 10POS 4.2MM DUAL TIN Headers & Wire Housings VERT MINIFIT CPI 10P dual row interface Conn Power HDR 10 POS 4.2mm Press Fit ST Thru-Hole 10 Terminal 1 Port Tray HEADER, MINI-FIT CPI, TIN, 10WAY MINI-FIT CPI HDR FOR .094PCB 10CKT TIN |
| Category |
Business
| Tradename | Mini-Fit CPI | Part # Aliases | 0438790025 43879-0025-PB |
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 400 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
Electrical
| Range deg/s | :MOLEX - Mini-Fit CPI 43879 Series | Voltage Rating | 600 V |
| Current Rating (Max) | 6 A | ||
Mechanical
| Color | Black | Pitch | 4.2 mm |
| Weight | 0.002 | Packaging | Tray |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Angle of Throw | Straight | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Termination Style | Through Hole | Number of Contacts | 10 |
| Contact Termination | :Press Fit Vertical | Number of Positions | 10 |
| Contact Finish Thickness | 100µin (2.54µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | 43879 | Product Type | Headers |
| Number of Circuits | 10 | Number of Positions Loaded | All |
Similar Parts
0424741041
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0

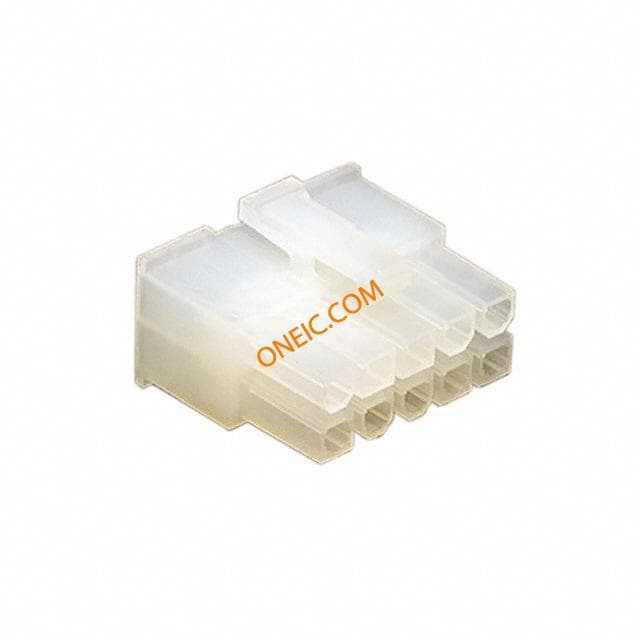

0039012105
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL Conn Housing F 10 POS 4.2mm Crimp ST Cable Mount Bag
0039012100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL
15-24-7100
molex
Conn Wire to Board RCP 10 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 10POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 10P DUAL ROW Conn Power RCP 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray PLUG & SOCKET CONNECTOR, RCPT 6POS 4.2MM MINI FIT BMI REC HEADER
39-01-2100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag 10 way receptacle,Mini-Fit Jr Headers & Wire Housings 10 CKT RCPT HOUSING RECEPTACLE, MINI-FIT, 10WAY PLUG & SOCKET HOUSING, RECEPTACLE, NYLON RECEPTACLE HOUSING; 94V-2; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
15-06-0101
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-0,10w Headers & Wire Housings RECPT DUAL ROW 10P w/panel mount ears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳
0015247101
Molex
Conn Power RCP 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER 10POS 4.2MM VERT TIN
15-24-7103
Molex Connector Corporation
CONN HEADER 10POS 4.2MM STR GOLD Headers & Wire Housings 2x5 Au 94V-0 VRT HDR Conn Power RCP 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray RECEPTACLE, 10POS, 2ROW, 4.2MM PLUG & SOCKET CONN, RECEPTACLE, 10POS, 4.2MM
39-01-2105
Molex Connector Corporation
CONN RECEPT 10POS DUAL 10 way receptacle,Mini-Fit Jr,dual row Headers & Wire Housings 10 CRKT HOUSING Conn Housing F 10 POS 4.2mm Crimp ST Cable Mount Bag HOUSING, RECEPTACLE, 10 WAY, NYLON RECEPTACLE HOUSING; 94V-0; 10 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳

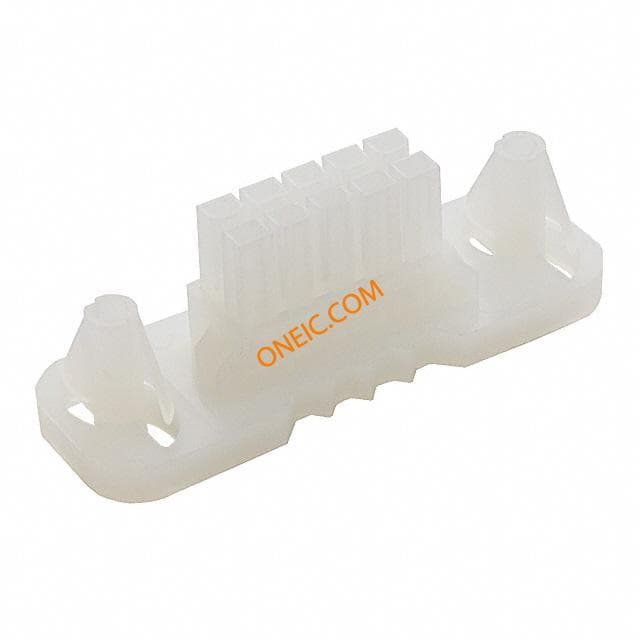

15-06-0100
