点击放大查看

39-00-0039

Manufacturer	Molex, LLC
Description	Standard receptacle contact,24-18 awg Headers & Wire Housings SOCKET 24-18AWG BULK Contact SKT Crimp ST Cable Mount Bag TERMINALS; BRASS(TIN PLATD); 24-18AWG; FEMALE Molex MINI-FIT 系列母压接接线端子, 压接, 镀锡触点
Category	Connector SolutionsContactsContacts

对参数有疑问？问 AI 助手

Business

Tradename	Mini-Fit Jr.	Part # Aliases	0039000039 39-00-0039-Z 5556TL
Product Category	Headers & Wire Housings	Factory Pack Quantity	1000

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	600 V	Contact Resistance	10mΩ
Current Rating (Max)	9 A

Mechanical

Wire Gauge	24-18	Termination	Crimp
Connector Type	Contact	Contact Finish	Tin
Contact Material	Brass	Termination Rows	压接
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Wire Gauge or Range - AWG	18AWG

Product Info

Gender	Female	Series	5556
Product Type	Contacts	Base Product Number	5556
For Use With/Related Products	Mini-Fit Jr.™ Receptacle Housing, Mini-Fit® TPA, Mini-Fit® BMI Panel Mount, Mini-Fit Jr.™ Plug Housing, Dual Row

Environmental

Operating Temperature

+105°C

Documents & Media

PDF Document

1766378.pdf

PDF Document

0039000039_CRIMP_TERMINALS.pdf

Similar Parts

63819-0900

molex

Connector Accessories Hand Crimp Tool Crimpers MOLEX CRIMP TOOL Hand Tool MiniFit 5556/58 16-28 AWG Hand Crimp Tool For Mini-Fit Jr. Male and Female Crimp Terminals, 16-24 AWG CRIMP TOOL, MINI FIT, 16-24AWG CRIMP TOOL; 24-18awg Crimping pliers, 63819-0900, Molex Molex HANDTOOL 系列接端压接工具 , 适用于24 → 16 AWG 线规格

$1793.8800

Details

11-03-0044

Molex

Hand Tools EXTRACTION TOOL Mini-Fit Junior extraction tool Extraction Tool Handtool Type EXTRACTION TOOL, MINI FIT JR Extraction tool for Mini-Fit Jr. Molex HANDTOOL 系列压接拔取工具 , 适用于28 → 22AWG 压接触点

$163.0640

Details

39-01-2065

Molex Connector Corporation

CONN RECEPT 6POS DUAL 6 way receptacle,Mini-Fit Jr,dual row Headers & Wire Housings 6 CKT RCPT HOUSING Conn Housing F 6 POS 4.2mm Crimp ST Cable Mount Bag RECEPTACLE, MINI-FIT, DUAL ROW, 6WAY Housing, Receptacle; PA Polyamide (Nylon) 6/6; 2; Female; 0.165 in.; UL 94V-0 Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 6 路直母压接连接器外壳

$1.5980

Details

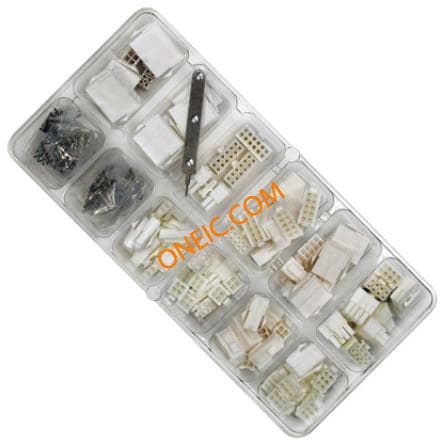

76650-3011

Molex

Mini-Fit Jr connector kit UL94V-0 WtW

$298.5880

Details

39-01-2060

Molex

6 way receptacle,Mini-Fit Jr Headers & Wire Housings 6 CKT RCPT HOUSING Conn Housing RCP 6 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 6WAY, CRIMP RECEPTACLE HOUSING; 94V-2; 6 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 6 路直母压接连接器外壳

$0.8432

Details

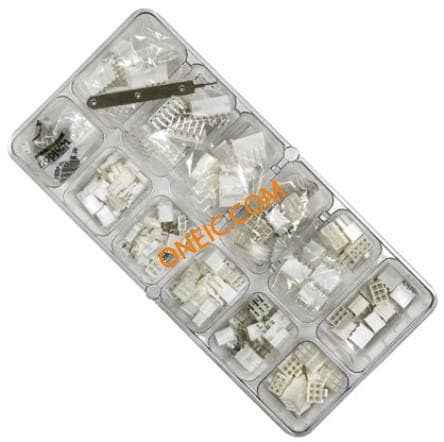

76650-3009
