39-01-2225
| Manufacturer | |
| Description | Conn Housing F 22 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 22POS DUAL Housing 4.20mm Dual row receptacle22w Headers & Wire Housings 22 CKT RCPT HOUSING PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 22 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | Mini-Fit Jr. | Part # Aliases | 0039012225 5557-22R-210 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 13 A |
Mechanical
| Color | Natural | Depth | 19.6mm |
| Pitch | 0.165" (4.20mm) | Width | 15.1mm |
| Length | 47.4mm | Weight | 0.002 |
| Packaging | Bulk | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Female Socket | Body Material | :Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 22 | Contact Termination | Crimp |
| Number of Positions | 22 | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 5557 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | Mini-Fit Jr. Receptacle |
Documents & Media
Similar Parts
0442810010
molex
Conn Wire to Board PL 22 POS 4.2mm Solder ST Thru-Hole Bag Conn Power PL 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Bag MINIFIT CONTINUITY TST PLG DR
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039296228
Molex
Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Bag CONN HEADER 22POS 4.2MM VERT GOL
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0039288220
Molex
Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Bag CONN HEADER 22POS 4.2MM VERT TIN
0039301220
Molex
Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Bag CONN HEADER 22POS 4.2MM R/A TIN
0039299222
Molex
Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Tray CONN HEADER 22POS 4.2MM VERT TIN Conn Wire to Board HDR 22 POS 4.2mm Solder ST Thru-Hole Tray

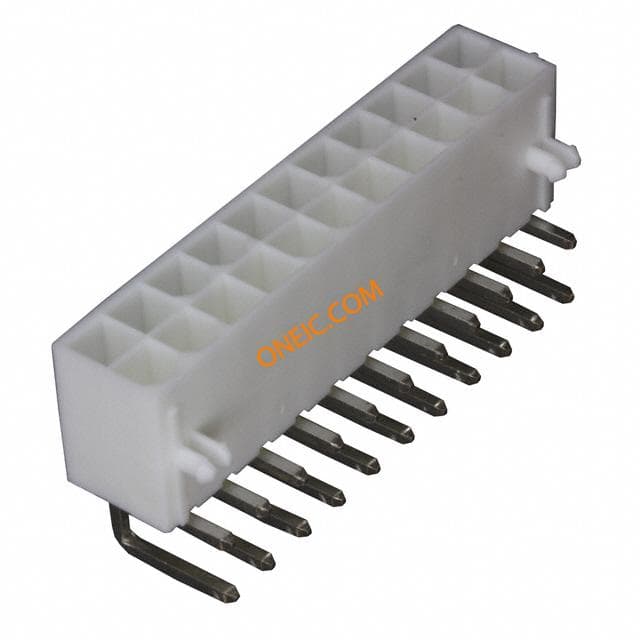

0039300220
Molex
Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Bag CONN HEADER 22POS 4.2MM R/A TIN
0039295223
Molex
Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Bag CONN HEADER 22POS 4.2MM R/A GOLD

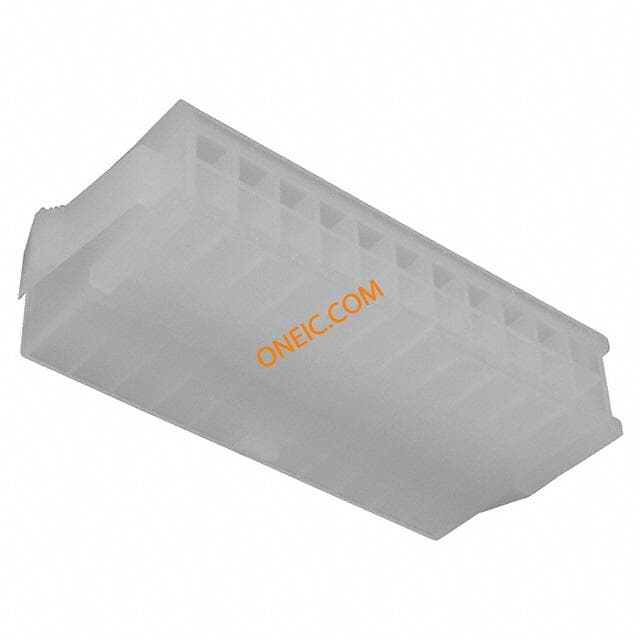

39-01-2221
Molex Connector Corporation
CONN PLUG 22POS PANEL MOUNT 22 way dual row panel mount plug Headers & Wire Housings 22 CKT PLUG HOUSING Conn Housing M 22 POS 4.2mm Crimp ST Panel Mount Bag Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 22 路 直 公 压接连接器外壳

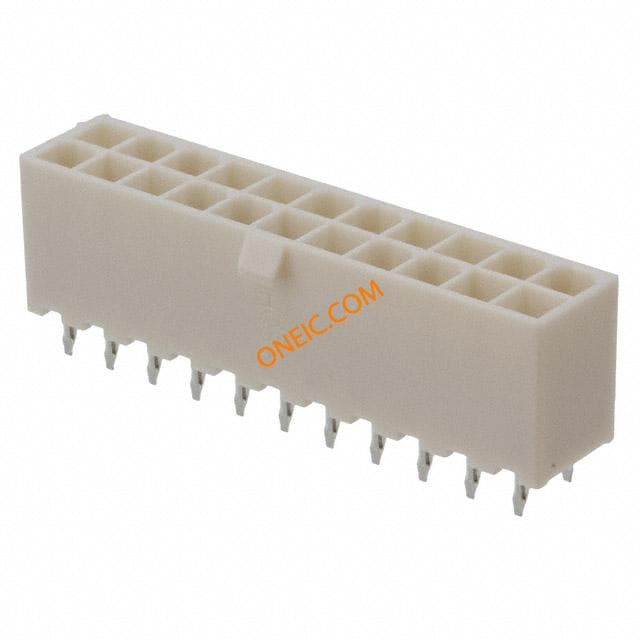

0460152206
Molex Inc
CONN RECEPT 22POS DUAL
0460152202
Molex Inc
CONN RECEPT 22POS DUAL

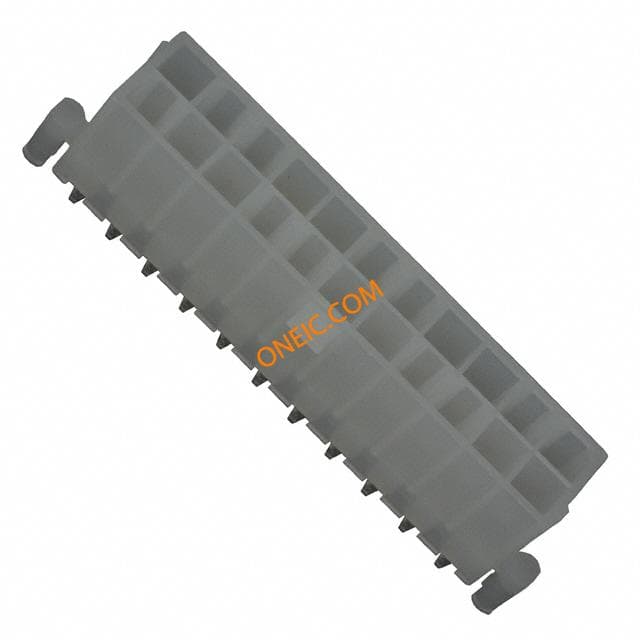

39-29-9224
Molex Connector Corporation
CONN HEADER 22POS 4.2MM STR GOLD Headers & Wire Housings 4.2MM 2R VERT22P HDR AU W/SNAP-IN PEG LCK Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Tray

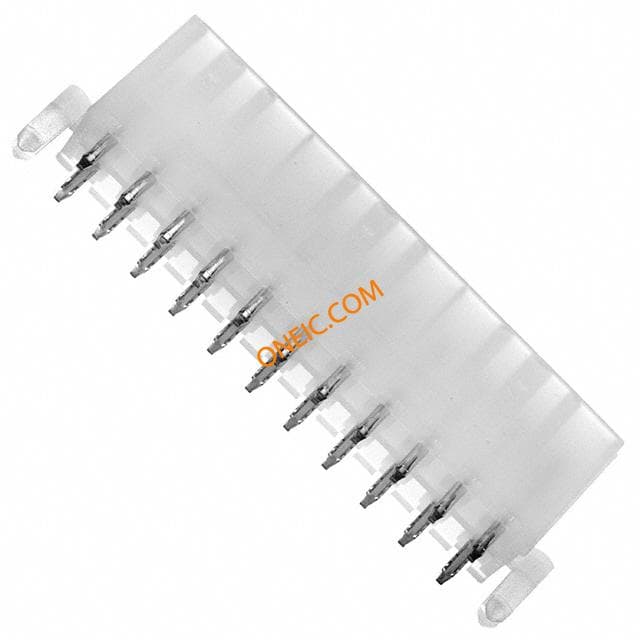

39-30-6227
Molex Connector Corporation
CONN HEADER 22POS 4.2MM VERT TIN Headers & Wire Housings 4.2MM 2R VERT22P HDR SN W/SNAP-IN PEG LCK Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Tray
39-29-3226
Molex Connector Corporation
CONN HEADER 22POS 4.2MM VERT TIN Headers & Wire Housings A-5566-22B Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Bag

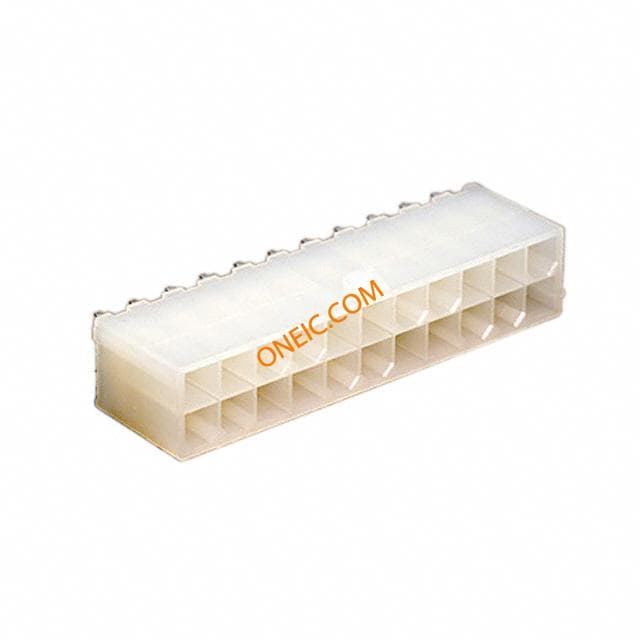

39-29-0223
Molex Connector Corporation
CONN HEADER 22POS 4.2MM STR GOLD Headers & Wire Housings 4.20MM MINI FIT JR. Vertical 22 CKT Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Tray

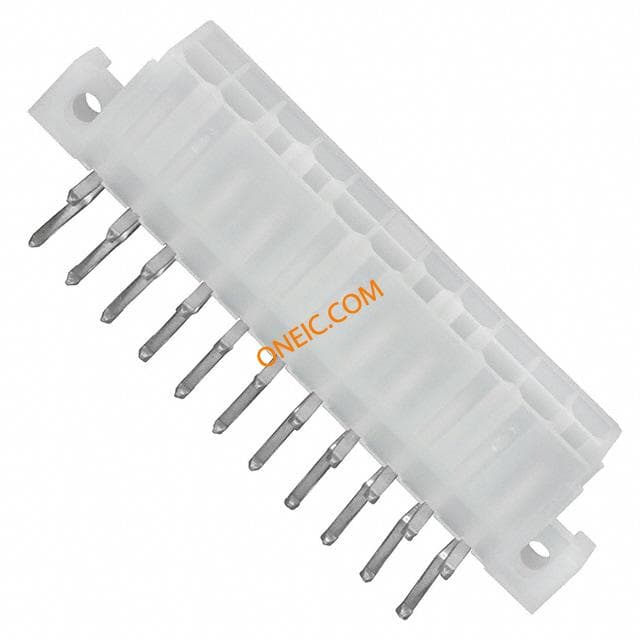

39-29-1228
Molex Connector Corporation
CONN HEADER 22POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 22 Way 2 Row Right Angle PCB Header, Solder Termination, 6A Headers & Wire Housings 22 CKT R/A HEADER Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Bag Molex MINI-FIT JR. 系列 4.2mm节距 22路 (2排) 直角 PCB 针座, 焊接端接, 6A , 通孔

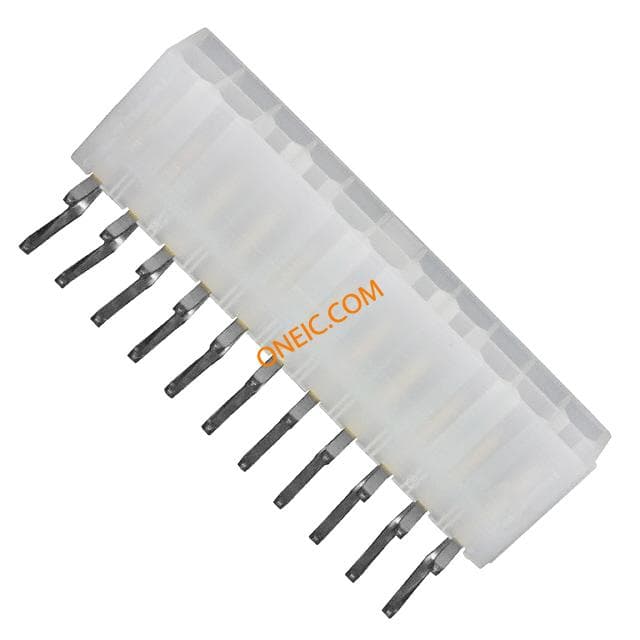

39-30-1221
Molex Connector Corporation
CONN HEADER 22POS 4.2MM R/A GOLD Headers & Wire Housings 4.20MM MINI FIT JR. RA 22 CKT Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Bag
0039281223
Molex
CONN HEADER 22POS 4.2MM VERT TIN Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Bag

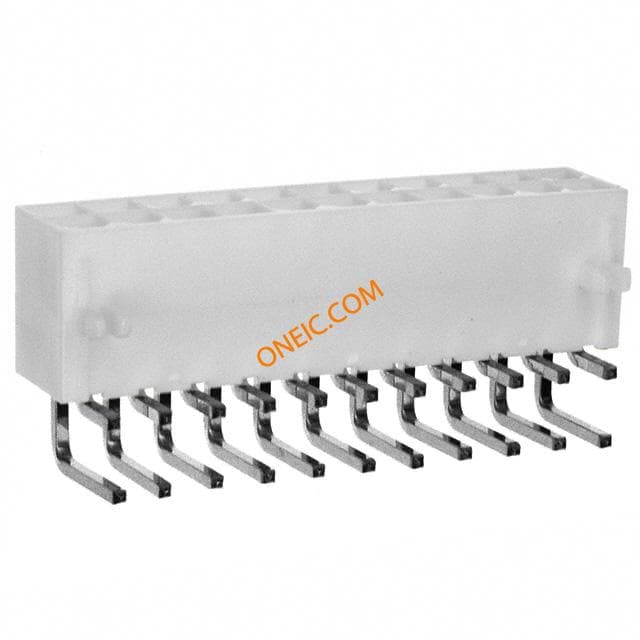

39-30-1222
