33472-2001
| Manufacturer | |
| Description | Automotive Connectors MX150 2X10P FEM REC POLAR A W/O CPA CONN RCPT 20POS DUAL BLACK 20w MX150 D/R sealed female connector Conn Housing F 20 POS 3.5mm Crimp ST Cable Mount Bag HOUSING, RECEPTACLE, 20POS, CABLE Connector: wire-wire; MX150; plug; female; w/o terminals; PIN:20 Molex MX150 系列 2行 20路 母 矩形连接器 |
| Category |
Business
| Product | Housings | Tradename | MX150 |
| Part # Aliases | 0334722001 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 312 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Max | 500V | Current Rating (Max) | 22A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 36.95mm |
| Pitch | 0.138" (3.50mm) | Width | 46.65mm |
| Height | 24.8mm | Weight | 0.02 |
| Packaging | Bulk | Contact Type | Female Socket |
| Pitch - Post | 3.5mm | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Holder |
| Mounting Style | Wire | Number of Rows | 2 |
| Locking Feature | :Latch | Material - Body | :Glass Filled Nylon (Polyamide) |
| Housing Material | PS | Package Quantity | 1 |
| Connector - Cable | plug | Termination Style | Crimp |
| Number of Contacts | 20 | Contact Termination | Crimp |
| Number of Positions | 20 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Rectangular | Gender | Female |
| Series | 33472 | Features | Sealed |
| Polarity | A | Adapter Series | MX150 |
| Number of Units | 1 | For Use With/Related Products | :MX150 33012 Series Female Terminals |
Environmental
| Ingress Protection | IP67 | Operating Temperature | +125°C |
Documents & Media
Similar Parts
0757571202
molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder ST Thru-Hole Tube CONN HEADER 2X10 STR BRKWAY GOLD
0757571401
molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder ST Thru-Hole Tube CONN HEADER 2X10 VERT BRKWAY TIN
0757571101
molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder ST Thru-Hole Tube CONN HEADER 2X10 VERT BRKWAY TIN
0757571402
molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder ST Thru-Hole Tube CONN HEADER 2X10 VERT BRKWAY TIN
33482-2001
Molex
Automotive Connectors MX150 2X10P MALE PLG POLAR A W/O CPA CONN PLUG 20POS DUAL BLACK 3.50mm Pitch MX150™ Sealed Male Connector, Dual Row, 20 Circuits, Polarization A, without Connector Position Assurance, Black CONNECTOR, HOUSING, PLUG, 20POS, CABLE
0757571201
Molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder ST Thru-Hole Tube CONN HEADER 2X10 STR BRKWAY GOLD
0759001302
Molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder RA Thru-Hole Tube CONN HEADER 20POS DL R/A 4.75MM
0759001202
Molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder RA Thru-Hole Tube CONN HEADER 20POS DL R/A 4.75MM
0759001201
Molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder RA Thru-Hole Tube CONN HEADER 20POS DL R/A 3.05MM
0759001101
Molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder RA Thru-Hole Tube CONN HEADER 20POS DL R/A 3.05MM
0757571302
Molex
Conn Unshrouded Header HDR 20 POS 3.5mm Solder ST Thru-Hole Tube CONN HEADER 2X10 VERT BRKWAY AU
0330123001
Molex

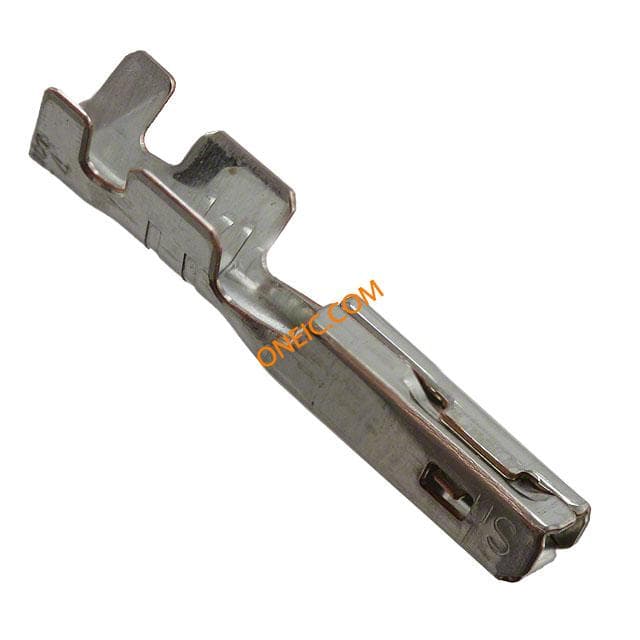

Contact SKT Crimp ST Cable Mount Reel TERM RCPT TIN 14-16AWG SLD Contact; female; 14÷16AWG; MX150; tinned; crimped; for cable; 22A
0330123003
Molex

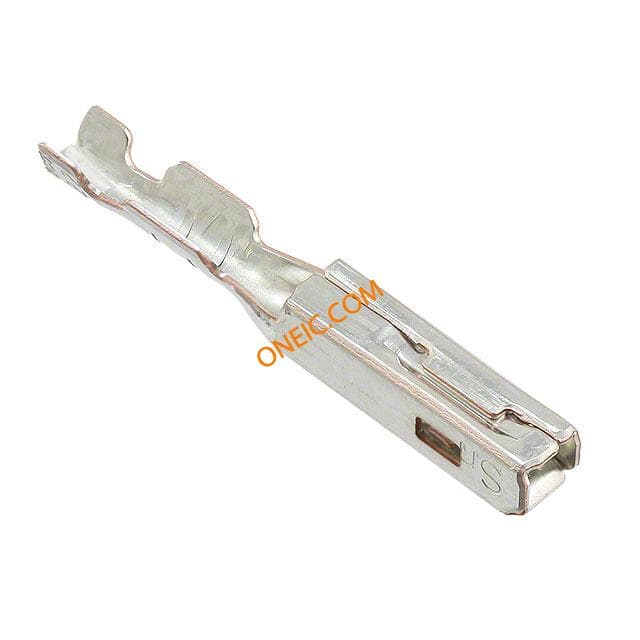

Contact SKT Crimp ST Cable Mount Reel TERM RCPT TIN 22AWG SLD Contact; female; 22AWG; MX150; tinned; crimped; for cable; 22A
